New single screw floating fish feed pellet making machine with 0.5-12mm Pellet Size 40-2000kg/h Capacity Easy Operation for Fish Poultry Farm
Price:
$1500.00 - 9500.00/ Set
MOQ:
1 Set
Delivery Time:
7-10 work days
Brand:
MIKIM
Product Description

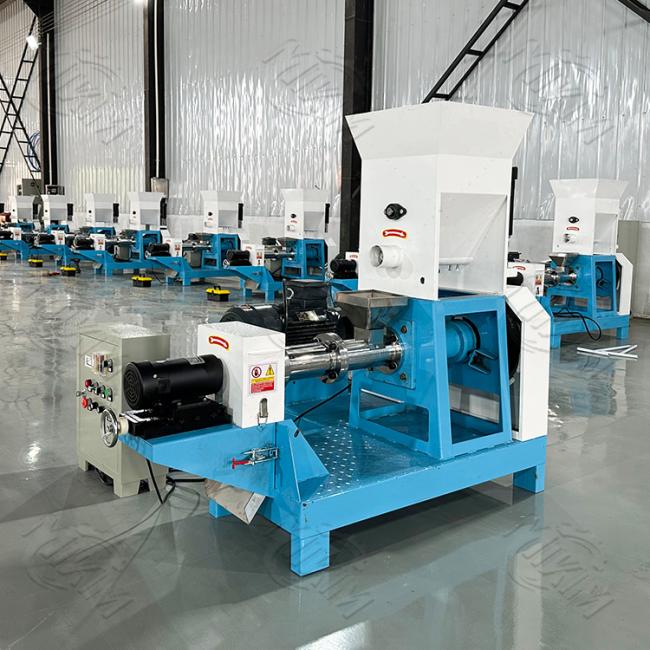

Single Screw Floating Fish Feed Pellet Making Machine
Professional equipment for producing floating fish feed pellets with 0.5-12mm pellet size and 40-2000kg/h capacity. Ideal for fish and poultry farms with easy operation and reliable performance.
Working Principle
The single screw floating fish food pellet maker machine operates through a continuous extrusion process:
- Raw materials are fed into the hopper
- Materials are mixed and conditioned
- The screw compresses and heats the materials
- High pressure and temperature cause expansion
- Pellets are shaped and cut
- Finished pellets are discharged and cooled
The expansion process creates a porous structure, allowing pellets to float on water.
Raw Materials & Production Process
Raw Materials: Corn flour, fish meal, bone meal, meat meal, soybean powder, etc.
Production Flow: Mixing system → Extrusion system → Drying system → Flavoring system → Packing system
Pellet Size Options

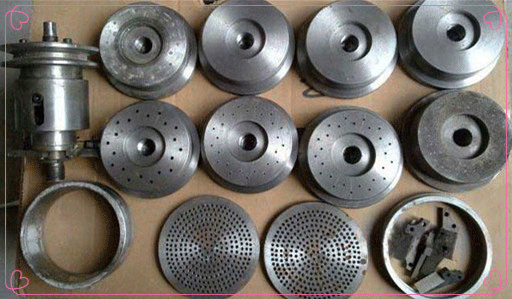

Different shapes are made by adjusting the extruder dies: 1.0mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm... up to 10.0mm depending on fish food die size.
You can use this fish food making machine to produce different size pellets by changing the extruder dies easily.
Key Features and Advantages
Cost-Effective Solution
Lower investment compared to twin-screw extruders
Lower investment compared to twin-screw extruders
Simple Operation
Easy to learn and operate, suitable for beginners
Easy to learn and operate, suitable for beginners
Stable Performance
Reliable operation for continuous production
Reliable operation for continuous production
Energy Efficient
Lower power consumption
Lower power consumption
Flexible Pellet Size
Adjustable molds (0.9-6mm)
Adjustable molds (0.9-6mm)
Compact Design
Requires less installation space
Requires less installation space
Technical Specifications
| Name | Single-Screw floating fish food extruder machine |
| Material | Stainless steel and carbon steel |
| Whole line Size | About 25.0*4.0*4.0m (Free workshop design drawing) |
| Weight | 1000-14500kg |
| Working Power | 380v 50HZ three phase (Customized) |
| Packing way | Woodcase or plastic film |
| Payment | T/T or L/C at sight |
| Shipment date | About 25-35 days |
Key Advantages
- The finished pellets can keep floating more than 10 hours
- The floating time can be controlled by the puffing degree adjustment
- Fish feed processing line can make pellet from 1.0mm-15mm just by changing the mold
- Electric heating device is adopted which can improve the feed expansion rate and pellets floating time
Product Applications
This single screw floating fish feed pellet machine is widely used in:
Aquaculture Farms
• Tilapia farming
• Catfish farming
• Carp farming
• Tilapia farming
• Catfish farming
• Carp farming
Feed Production
• Small feed mills
• Startup aquaculture businesses
• Small feed mills
• Startup aquaculture businesses
Research & Testing
• Aquaculture research centers
• Feed formulation testing
• Aquaculture research centers
• Feed formulation testing
Model Specifications
| Model | Capacity (kg/h) | Main motor (kw) | Feeder motor (kw) | Cutter motor (kw) | Screw diameter (mm) | Machine size (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| DGP-40 | 40-50 | 5.5 | 0.4 | 0.4 | φ40 | 1.36*1.3*0.85 | 320 |
| DGP-60 | 120-150 | 15 | 0.4 | 0.4 | φ60 | 1.36*1.33*0.86 | 420 |
| DGP-70 | 200-250 | 18.5 | 0.4 | 0.4 | φ70 | 1.36*1.33*0.86 | 550 |
| DGP-80 | 300-350 | 22 | 1.5 | 0.55 | φ80 | 2.3*1.7*1.4 | 720 |
| DGP-90 | 400-450 | 30 | 1.5 | 0.55 | φ90 | 2.3*1.8*1.4 | 1100 |
| DGP-100 | 500 | 37 | 1.5 | 1.5 | φ100 | 2*2.8*1.2 | 1500 |
| DGP-120 | 600-700 | 55 | 1.5 | 1.5 | φ120 | 2.2*2.9*1.2 | 1800 |
| DGP-135 | 800-900 | 75 | 1.5 | 2.2 | φ135 | 2.2*3.1*1.37 | 2000 |
| DGP-160 | 1000-1200 | 90 | 2.2 | 2.2 | φ160 | 2.3*3.15*1.38 | 2500 |
| DGP-200 | 1800-2000 | 132 | 3 | 3 | φ200 | 2.35*3.45*1.65 | 3200 |
Frequently Asked Questions
Q1: What is a Single-Screw floating fish feed pellet mill?
A: A feed extruder is a piece of equipment used for processing animal feeds. It alters the physical and chemical properties of feed ingredients through high-temperature, high-pressure conditions and mechanical shear forces to enhance their solubility, digestibility, and texture, thereby improving feed utilization by animals.
Q2: How does a Single-Screw floating fish food pellet making machine work?
A: A feed extruder works by pushing feed ingredients into an extrusion screw and then subjecting them to high temperatures and pressures to extrude the materials. During extrusion, the materials expand and generate heat, causing starch gelatinization and protein denaturation, thereby increasing their solubility and digestibility.
Q3: Can the price be much lower?
A: Our MOQ is the very reasonable price for 1 set, but with big order, we can apply to our Manager to provide a proper discount. The more quantity ordered, the lower the price. If you become our foreign distributor, we will provide you with a negotiated price.
Q4: Can I have different models with different price?
A: Yes, there have different models according to different raw material and different capacity.
Q5: Do you offer oversea installation?
A: We'll send professional installation engineer to help you install the equipment, as well as train your workers freely.
