Low Price 120-150kg/h Single-Screw fish feed pellet maker Animal Dog Pet Food Pellet Floating Fish Feed Extruder machine

Price Negotiable
Price: $1500.00 - 9500.00/ Set
MOQ: 1 Set
Delivery Time: 7-10 work days
Brand: MIKIM
Product Description

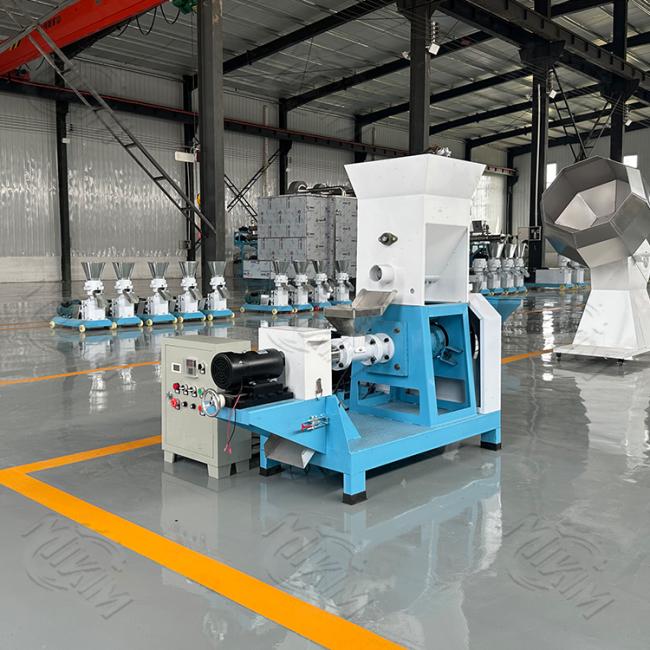

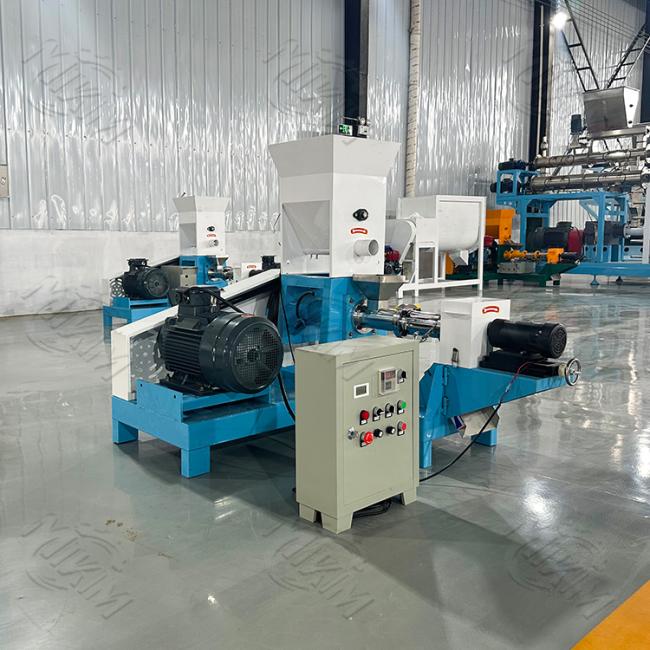

Factory price fish food manufacturing machine floating fish feed mill pellet extruder making machine

The feed extruder is equipped with built-in screw and screw sleeve to lengthen, long material turning time, adjustable
temperature, adjustable output torque, which makes the material expanded with high degree and smooth surface.


Product Application


Model
DGP-60
Capacity
120-150kg/h
Main power
15KW
Feeding power
0.4KW
Cutter power
0.4KW
Screw diameter
Φ60mm
Pellet size
1-8mm
Packing size
1.36*1.67*0.85m
Weight
450kg
Features of Single-Screw floating fish food pellet making machine:

1.Enlarge and widen the feed inlet, wear-resistant and durable

2.Pure copper motor, strong power, low noise

3.Thick and flexible belt, silent transmission, strong adhesion

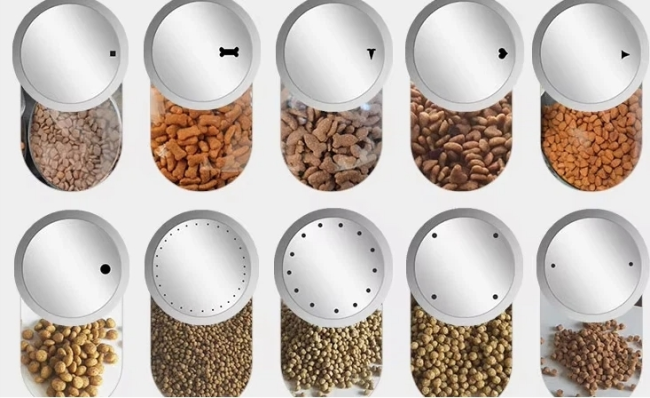

4.Variety of feed shape grinding tools are available

5.Independent power control box, easy to operate and safe

6.Separate variable speed cutting device, feed pellet length can be adjusted

7.Spiral discharge opening, uniform discharge

8.Wear-resistant slicing, easy to disassemble


Machine Features of single screw floating fish food maker machine:
1. Can made different size pellet by change the mold
2. Can made floating pellet or sinking pellet or pet food
3. Feed pellet can stay in water at least 12 hours to avoid melt in water
4. During pellet making process, the bacterium was killed,so the pellet was sanitary for eat by animal.
5.The product has novel design, high output and stable operation. The main parts are made of special alloy materials through heat treatment and refining, with high wear resistance and long service life.



Model
Capacity   (kg/h)
Main motor (kw)
Feeder motor  (kw)
Cutter motor (kw)
Screw diameter (mm)
Machine size (mm)
Weight  (kg)
DGP-40
40-50
5.5
0.4
0.4
φ40
1.36*1.3*0.85
320
DGP-60
120-150
15
0.4
0.4
φ60
1.36*1.33*0.86
420
DGP-70
200-250
18.5
0.4
0.4
φ70
1.36*1.33*0.86
550
DGP-80
300-350
22
1.5
0.55
φ80
2.3*1.7*1.4
720
DGP-90
400-450
30
1.5
0.55
φ90
2.3*1.8*1.4
1100
DGP-100
500
37
1.5
1.5
φ100
2*2.8*1.2
1500
DGP-120
600-700
55
1.5
1.5
φ120
2.2*2.9*1.2
1800
DGP-135
800-900
75
1.5
2.2
φ135
2.2*3.1*1.37
2000
DGP-160
1000-1200
90
2 2
2.2
φ160
2.3*3.15*1.38
2500
DGP-200
1800-2000
132
3
3
φ200
2.35*3.45*1.65
3200


Raw Material Final Production

Single screw floating fish feed pellet machine is applied to produce dry and wet type different shapes fish feed (pet fishes, cultured fishes etc.). The puffing degree can be adjusted to produce floating or sinking feed type. This production line also produce dog, cat, bird feed and so on. Fish feed production line is applied to produce dry and wet type different shapes fish feed (pet fishes, cultured fishes etc.). The puffing degree can be adjusted to produce floating or sinking feed type. This production line also produce dog, cat, bird feed and so on.



Our Service


1.Quality Warranty
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products.

When yougot the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.


FAQ


Q: What materials can our  Fish Feed Pellet Making Machine?
A:  sorghum, wheat, fish mesh, etc.

Q: What is the output of our  Fish Feed Pellet Making Machine?
A: 200-2000KG/H
Q: What's your warranty?
A: Warranty: 2Year(except spare parts)
