260kg/h Coconut Shell/wood Sawdust Charcoal Briquette Machine/ Biomass Charcoal Briquette Making Machine Used to Malaysia
small biomass charcoal baggasse wood coal sawdust briquette extruder forming press making machine
Biomass Rod Brick Press Machine shows the features of high capacity, low energy consumption, compact and durable. Many performance data such as capacity, wood briquettes density, electricity consumption and wearable degree has reached advanced level. Charcoal briquette machine can be used as charcoal powder briquette machine by replacement of some spare parts. The out diameter of finished briquettes is 50mm/80mm.
2. Raw Material:
- Biomass wastes, such as sawdust,rice husks,coffee husks,rice straw, wheat straw,etc.
- Material required: Moisture 8%-12%,size3-5mm
- If moisture>12% may need dryer,We have air flow dryer and drum dryer.
- If material size >5mm will need hammer mill or wood crusher.
- When begin to work,the heating circle heat the machine,then bio briquettes manufacturing machine can press sawdust without any binder, sawdust pressed by high temperature and high pressure , then the screw press sawdust forward,extrusion into a rod-shaped solid rod with center hole.
|
Model |
BJ-50 |
BJ-80 |
BJ-80C |
|
Motor |
18.5kw |
22kw |
30kw |
|
Voltage |
3 phase 380V/50HZ |
3 phase 380V/50HZ |
3 phase 380V/50HZ |
|
Capacity |
260-280kg/h |
320-340kg/h |
400kg/h |
|
Dimension |
1.6*0.65*1.6 |
1.8*0.7*1.7 |
1.95*0.9*1.8 |
|
Weight |
600kg |
700kg |
800kg |
|
Raw material moisture |
8-12% |
8-12% |
8-12% |
|
Raw material size |
3-5mm |
3-5mm |
3-5mm |
3. Structure of Biomass Charcoal Making Machine
- Feeding hopper – stable material input
- Screw propeller / roller press – core forming unit

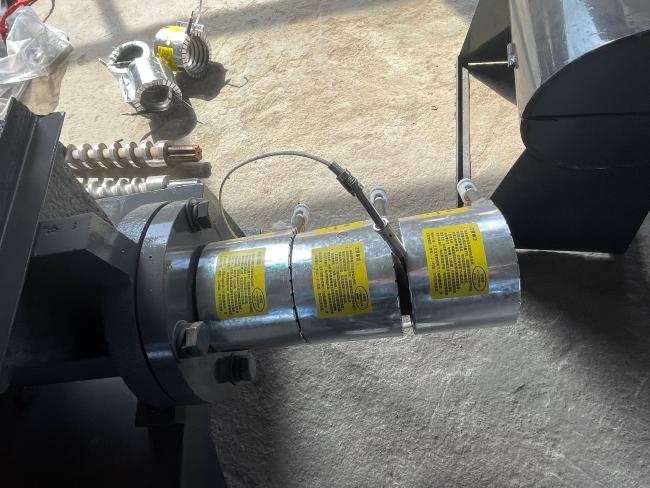

- Heating ring – improves briquette density
- Mold – determines shape (hexagonal, pillow, square)
- Motor & gearbox – stable power transmission
- Control panel – easy operation
* No binder or noxious chemical need to use.
* Using the advanced Hot air drying system with the perfect performance.
* After the processing of High temperature, purification, smoke removing, the carbonizing equipment transforms the semi-finished bio-fuel briquette into a smoke-free, tasteless, non-toxic cleaning carbon.
Applications of wood shavings charcoal briquette maker machine
1. Industrial Fuel Replacement
Factories and processing plants use biomass briquettes to replace coal in:
- Boilers
- Steam generation systems
- Drying equipment
2. Power Plants & Thermal Energy Systems
Biomass briquettes are used in:
- Biomass power stations
- Co-firing systems (mixed with coal)
Advantage:
Stable combustion, uniform size, and predictable calorific value.
3. Agricultural & Rural Energy Use
Widely applied in:
- Farms
- Greenhouses
- Rural heating systems
Benefit:
Transforms agricultural waste into usable energy, reducing disposal problems.
4. Charcoal Production Industry
Briquettes can be carbonized to produce:
- BBQ charcoal
- Industrial charcoal
Key value:
Higher density briquettes → better carbonization efficiency → higher-quality charcoal.
5. Commercial & Domestic Fuel
Used in:
- Restaurants (BBQ fuel)
- Household heating and cooking
Selling point:
Cleaner burning than raw biomass, less smoke, easier storage.
Finished Products
1. Solid Biomass Briquettes
Common shapes produced by extruder machines:
- Cylindrical briquettes
- Hexagonal briquettes (with center hole)
- Square or rectangular blocks
Features:
- High density (1.0–1.3 g/cm³)
- Low moisture
- Smooth surface
2. Carbonized Briquettes (Charcoal)
After carbonization:
- Black, smokeless charcoal
- Higher calorific value than raw briquettes
Applications:
- BBQ charcoal
- Metallurgical fuel
- Hookah/shisha charcoal
3. Industrial Heating Fuel Blocks
Customized briquettes for:
- Large boilers
- Industrial furnaces
Key traits:
- Uniform size for automated feeding
- Stable burning time
4. Eco-Friendly Fuel Alternatives
Used as a substitute for:
- Coal
- Firewood
- LPG (in some rural cases)
Environmental value:
- Lower sulfur emissions
- Carbon-neutral lifecycle
Why Invest in a Biomass Briquette Extruder Machine?
Prospect: Due to the rapid increase in the need of energy source, more people start to become interested in Biomass Briquette business. Hydraulic biomass briquette press are renewable, Eco-friendly Energy especially for agricultural countries.
Briquette Making Machine Biomass investment is a best project to generate revenue from agro-forestry waste and to produce Green Energy to save the global environment.
This plant can make charcoal stick of different diameter and different shape from biomass and agro-forest waste. Raw Material to make Biomass Briquette:Any type of Agro-Forestry waste can be used
Product packaging and transportation:
