South Africa Wood Pellet Biomass Rod Brick Press Machine Coconut Charcoal Briquette Machines for sale

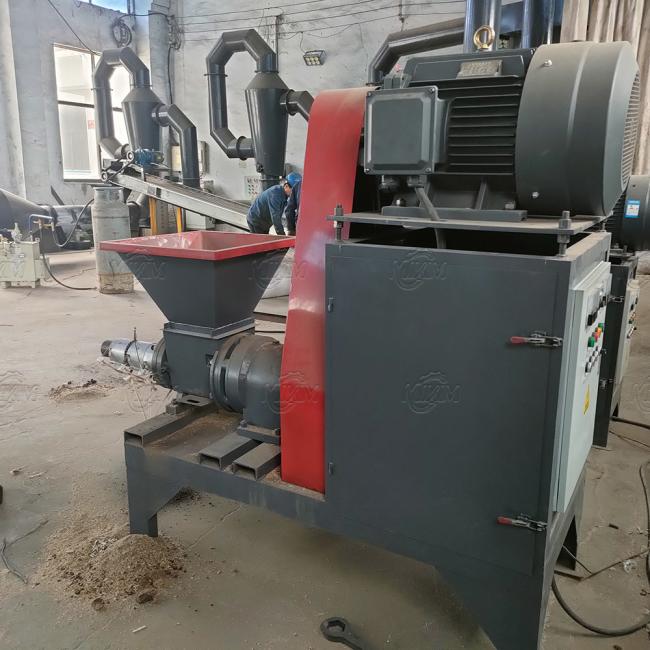

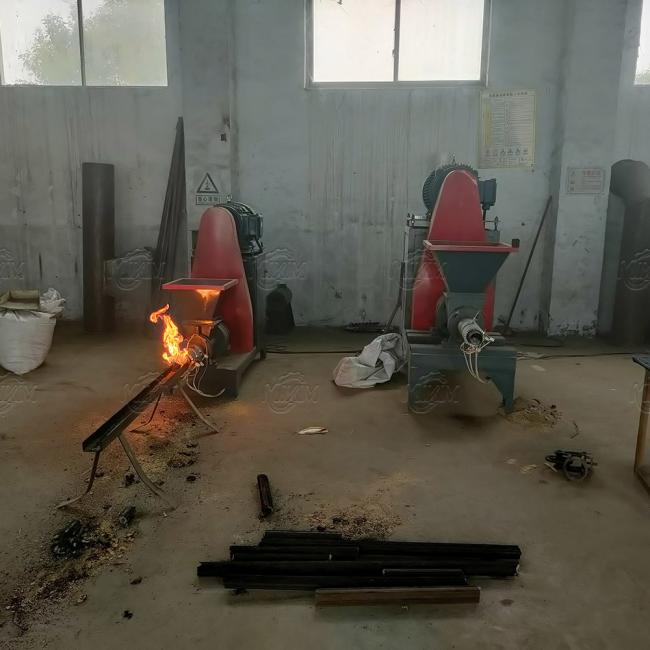

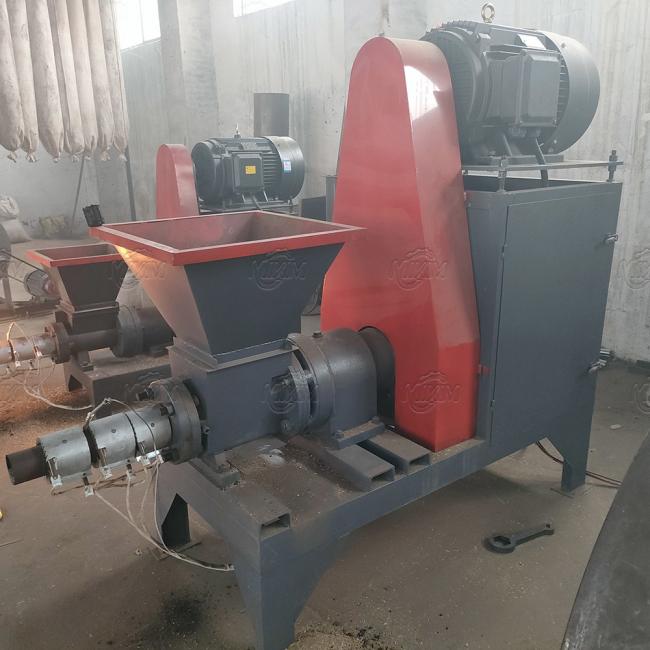

The Biomass Charcoal Briquette Making Machine can be divided into 50 rod machine and 70 rod machine according to the size of the molding barrel. The bar making machine is a main equipment which is made of wood, rice hull, peanut shell, plant straw and other carbon containing wood materials (without adding any additives), and is made into rod solid fuel under high pressure and high temperature.
The bio briquettes manufacturing machine adopts automatic thermostat device and has the advantages of stable working performance at set temperature, reasonable structure and simple operation and maintenance.
By this biomass charcoal making machine production forming solid bar after carbonization easy ignition, high calorific value (compared with the general wood increased by more than 20%), less pollutant, the proportion of the stool in the storage and transportation, can make full use of crop residues, to alleviate the contradiction between forestry and energy waste, the tension in our country.
Product Technical Parameters:
|
Model |
BJ-50 |
BJ-80 |
BJ-80C |
|
Motor |
18.5kw |
22kw |
30kw |
|
Voltage |
3 phase 380V/50HZ |
3 phase 380V/50HZ |
3 phase 380V/50HZ |
|
Capacity |
260-280kg/h |
320-340kg/h |
400kg/h |
|
Dimension |
1.6*0.65*1.6 |
1.8*0.7*1.7 |
1.95*0.9*1.8 |
|
Weight |
600kg |
700kg |
800kg |
|
Raw material moisture |
8-12% |
8-12% |
8-12% |
|
Raw material size |
3-5mm |
3-5mm |
3-5mm |
Characteristics:

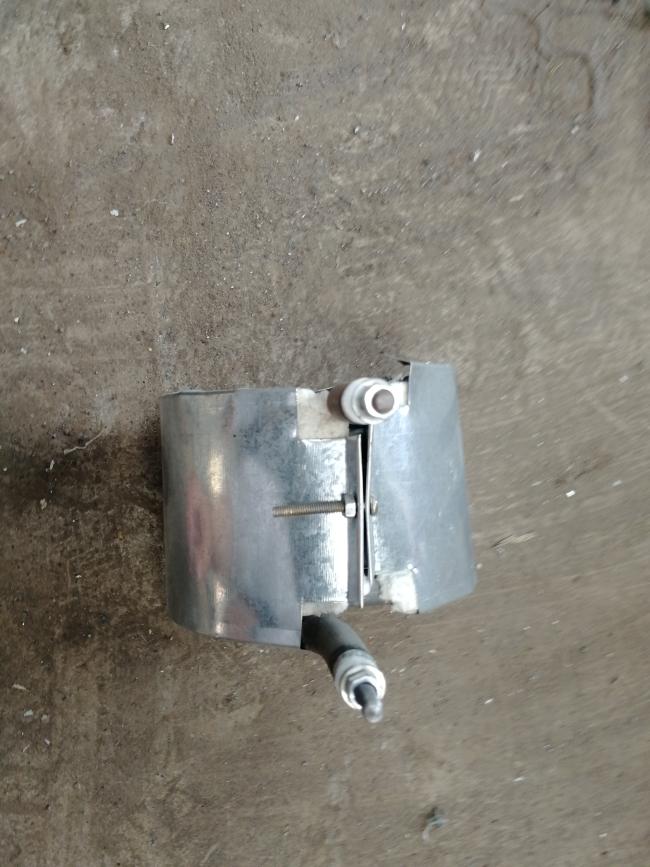

2. The designed automatic control electric heating device can adjust the dry humidity of the material randomly, ensure the stability of the material forming and improve the working efficiency.
3. The main parts of this biomass briquette extruder machine are specially treated with wear-resistant material, so it can be continuously pressed and durable.
4. Three bearing the heart of the old machine is four, an increase of the machine stability and durability.
5. The Briquette Making Machine Biomass is suitable for the pressing and forming of various biomass raw materials, with less energy consumption and high production efficiency.

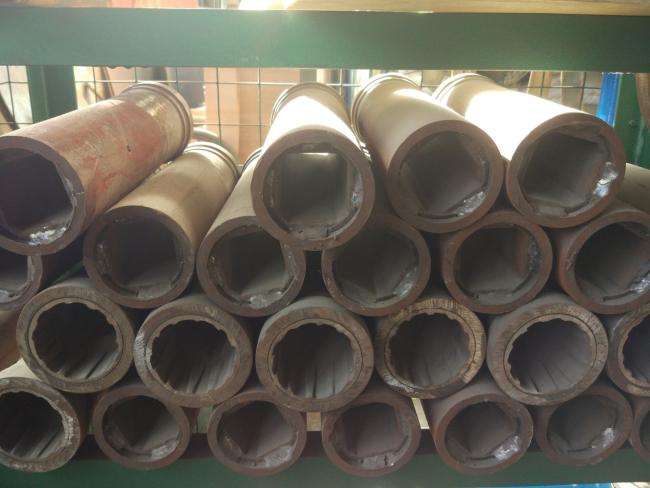

6. The structure of the molding cylinder is improved, the friction force between the machine and the raw material is reduced, and the density of the mandrel is increased.
7. The old type of oil - based lubrication is oil immersion lubrication, as long as it is not short of oil, it can be used for many years.
8. Increase the pitch to increase the feed volume, thus greatly increase the output.

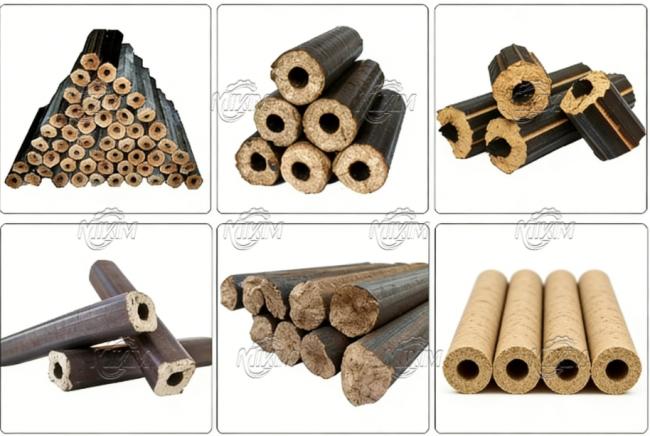

Final Product
