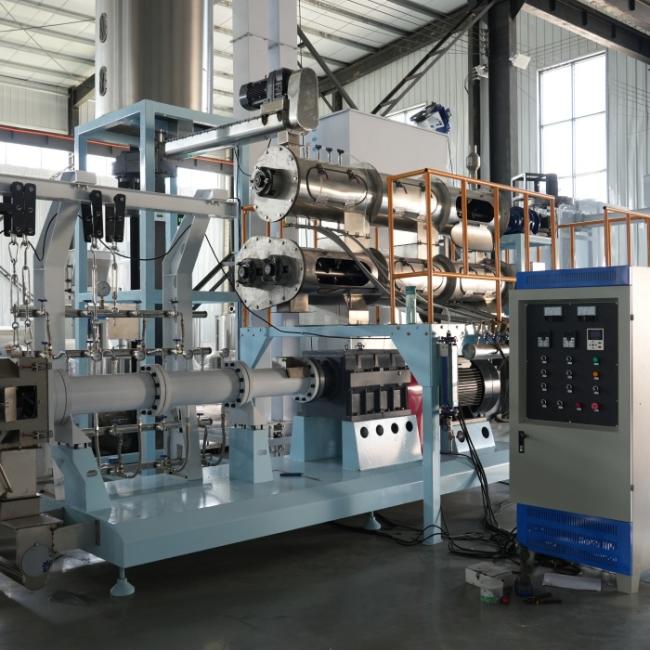

2ton/ H 115KW Pedigree Dog Food Pet Feed Production Line 20×1.2×2.2mm

Pedigree Dog Food Making Machine Dog Food Extruder Pet Feed Production Line

Dog Food Making Machine or animal material intended for consumption by dogs or other canines. The pet food is close to the human beings food in the fine level,the heath index and the nutritional ingredients,some of them request more highly than human beings.

Pet feed processing line is suitable to make dry fish food pellet (catfish, aquarium, Tilapia, Freshwater fish and tropical fish etc.)

1). All fish food equipment are made of stainless steel.

2). The fish food whole line fully continuous and automatic.

3). We provide basic fish food recipe according to your require.

4). The final fish food shapes and sizes can be various by changing the mould.

5). Supply different size mould free.

6). Packing machine could be supplied to work with the line (depend on your require).

Technical Parameters:

Flow chart :

grinding→mixing→extruding→drying→flavoring→cooling→packing

Raw material:

Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.

Equipment list in the dog food production line:

mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine

Mixer

Usage

To mix the raw materials evenly, fast speed, no leakage.

Type

including Single axle and double shaft mixer

Motor

3kw, 4kw, 7.5kw etc.

Capacity

20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.

Material

stainless steel, carbon steel

Twin screw extruder(wet type/dry type)

Usage

To extrude the raw materials and make them to the required shape and size of the dog food pellets by mould

model

DSE65, 70, 75, 90, 95, 120, 135

Motor

22kw, 30kw, 55kw, 75kw, 90kw, 110kw etc.

Capacity

100kg/h to 10 ton/h

Material

Screw materials 38CrMoAl

stainless steel, carbon steel

Dryer (oven)

Usage

the expanded food go through the "s" passage, to be dried to increase the self life.

Type

electrical, steam, gas fired, diesel fired heating type

Motor

KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.

Capacity

100kg/h to 10 ton/h

Material

stainless steel, carbon steel

Flavoring machine

Usage

To mix the oil and flavors on the surface of the pet food

Type

single and double flavoring drum

Motor

0.75kw

Capacity

100kg/h to 10 ton/h

Material

stainless steel

Packaging machine

Usage

To pack the dog feed with required weight

Flowing Process

Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing

Weight range

1-5kg/bag, 5-25kg/bag, 25-50kg/bag

Material

stainless steel, carbon steel

Type

Automatic
