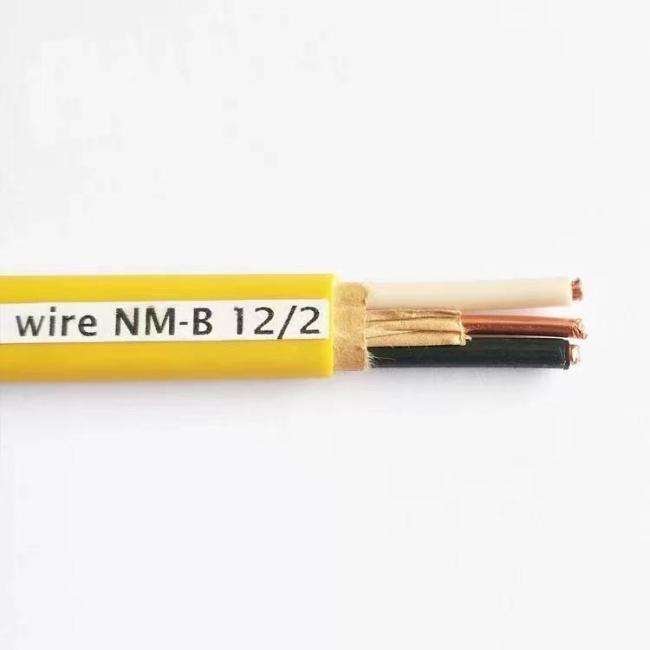

Romex NM-B wire 12/2 housing cable
Romex NM-B wire 12/2 housing cable
Essential details
Place of Origin: China Brand Name:customized
Model Number:SR-R12/2HC Type:insulated
Application:Overhead Conductor Material:Copper
Conductor Type:Stranded Insulation Material:PVC
Usage:Indoor Color:Customer Requirements
Insulation:PVC Insulation Cable Certification:U L R oHS
Keyword:House Wiring Cables Shape:Made Round Wire
Delivery time:7-25 Days Feature:Environmentally Friendly
Thermal Class:customized

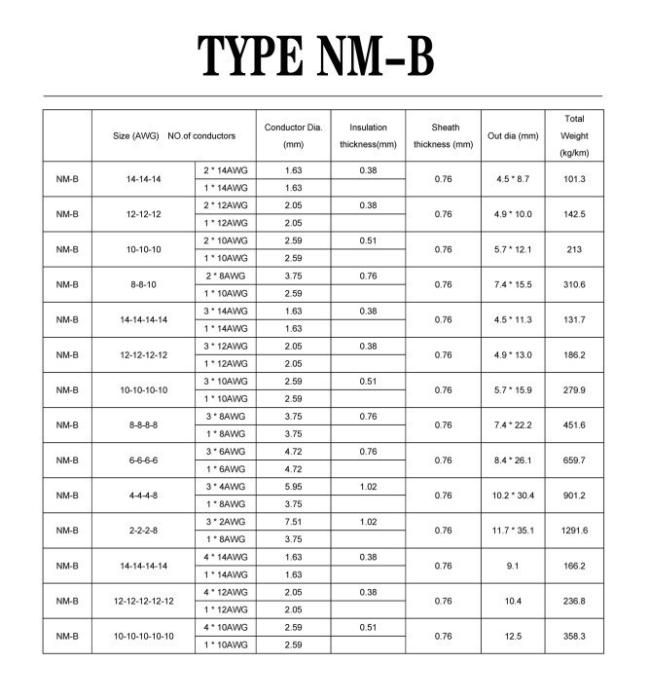

TYPE NM-B
Four Conductor Available With Two Neutrals.
Applications
Type NM-B (nonmetallic-sheathed cable) may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 60°C conductors) as specified in the 2011 National Electrical Code. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations. Voltage rating for NM-B cable is 600 volts.
Specifications
Type NM-B cable complies with:
* ASTM B-3 and B-8
* UL Standard 83
* UL Standard 719
* Federal Specification A-A-59544
* National Electrical Code, NFPA70. 2011 Edition
* RoHS/ REACH
