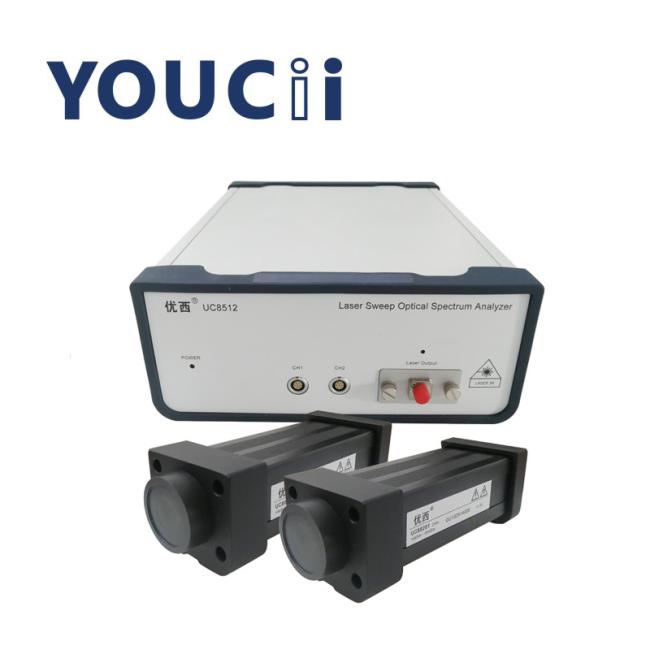

1.0pm Laser Scanning Spectrometer With Output Power 13 DBm Easy To Operate

Price Negotiable

Price: negotiate a price

MOQ: 1pcs

Delivery Time: 20 work days

Brand: UC

Product Description

Laser scanning spectrometer with output power 13 dBm Easy to use

Specification

Model #	UC8512C+UC88201
Adjustable laser light source
Wavelength range	1525.00 ~ 1568.00 nm
Output Power	13 dBm
Wavelength resolution	1.0 pm
Absolute wavelength accuracy	±10 pm, Typ. ±5 pm
Relative wavelength accuracy	± 5 pm, Typ. ±2 pm
Wavelength repeatability	± 3 pm, typ. ±1 pm
Wavelength stability	±5 pm (typ., 24 hrs at Constant Temperature)
Tuning speed	≤ 2 ms per step
Power stability	±0.005dB (15Min) ±0.05 dB ( 24 hours)
Power repeatability	± 0.05 dB
Power linearity	± 0.3 dB
Power flatness	0.3 dB; Typical values 0.05dB.
Side mode rejection rate	≥ 40 dBm
Relative noise intensity	Typical values < -135 dB
Optical power meter
Wavelength range	850 nm to 1625 nm
Power measuring range	+5 dBm to -85 dBm
Precision of power	< ± 4%
Power repeatability	< 0.1 dB
Scanning function: equipped with DWDM/Isolator/GFF device scanning software
Scanning mode	Fast adjustable laser spectral scanning
resolution ratio	1 pm
precision	5 pm
Power display	Peak power display
Central wavelength function	Central wavelength and 3dB bandwidth display
Reference function	Reference test

Power adapter power	AC 100 ~ 240 V , 48 - 66 Hz,100 VA max.
display	PC control interface
Optical output interface	FC/PC connector
Communication interface	USB / RS232 interface
Storage temperature	−40°C ~ +80°C
Operating temperature	0°C ~ +45°C
Dimensions	245 mm W, 105 mm H, 320 mm D
Weight	3.0kg
