1/2 Channel Fibre Optic Power Meter With +10 ~ -65dBm Or +25 ~ -50dBm
Fibre Optic Power Meter 1/2 Channel With +10 ~ -65dBm Or +25 ~ -50dBm

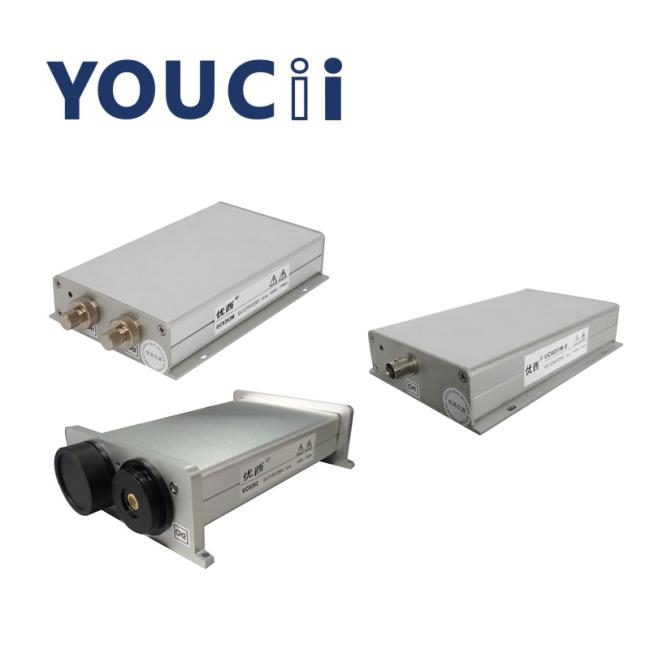

UC8202M Double channel Mini optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines.
UC8202M Mini optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter options.
| Model | UC8201M | UC8202M | UC8201MH | UC8202MH |
| Number of Channels | 1 | 2 | 1 | 2 |
| Power Range | +10 ~ -65dBm | +25 ~ -50dBm | ||
| Wavelength Range | 850 ~ 1700 nm | |||
|
Power sampling period(rate) |
100 us(10KHz) | |||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm | |||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | |||
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) | |||
|
Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical | |||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) | |||
| Return Loss | ＞ 40 dB | |||
| Communication Interface | RS232 | |||
| Sampling Data Storage |
Supports online data collection, saving and power curve drawing for 2 hours |
|||
| Power Supply | DC5V3A,A 100 to 240V AC power adapter is configured | |||
| Operation Temperature | 0 ～ +40℃ | |||
| Storage Temperature | -30 ～ +80℃ | |||
| Recalibration Period | 2 years | |||
| Dimensions | 100 mm W, 30 mm H, 165 mm D | |||
| Weight | 1.0 kg | |||
