Handheld Optical Fiber Identifier (OFI) Ø0.25 , Ø0.9, Ø2.0, Ø3.0
Handheld Optical Fiber Identifier (OFI) Ø0.25 , Ø0.9, Ø2.0, Ø3.0
Description

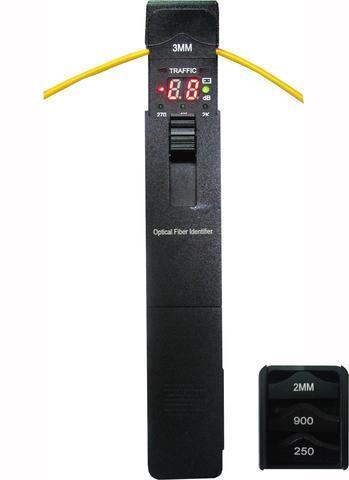

Optical Fiber Identifier (OFI) can quickly identify the direction of transmitted fiber and display the relative core power without interrupting the current service. The fiber identifier recognizes modulation like, 270Hz,1KHz and 2KHz with continuous audible tone. There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. This OFI is powered by 2 pcs very normal AA batteries.
Specifications
|
Model# |
U8652 |
|
Identified Wavelength Range |
800-1700 nm |
|
Identified Signal Type |
CW, 270Hz±5%,1kHz±5%,2kHz±5% |
|
Detector Type |
Ø1mm InGaAs 2pcs |
|
Adapter Type |
Ø0.25 , Ø0.9, Ø2.0, Ø3.0 |
|
Signal Direction |
Left & Right LED |
|
Singe Direction Test Range (dBm, CW/0.9mm bare fiber) |
-46~10(1310nm) |
|
-50~10(1550nm) |
|
|
Signal Power Test Range (dBm, CW/0.9mm bare fiber) |
-50~+10 |
|
Signal Frequency Display (Hz) |
270, 1k, 2k |
|
Frequency Test Range (dBm, Average Value) |
Ø0.9, Ø2.0, Ø3.0 -30~0 (270Hz,1KHz) |
|
Ø0.9, Ø2.0, Ø3.0 -25~0 (2KHz) |
|
|
Ø0.25 -25~0 (1KHz,2KHz) |
|
|
Ø0.25 -20~0 (2KHz) |
|
|
Insertion Loss(dB, Typical Value) |
0.8 (1310nm) |
|
2.5 (1550nm) |
|
|
Alkaline Battery(V) |
2pcs AAA batteries |
|
Operating Temperature(℃) |
-10－+60 |
|
Storage Temperature(℃) |
-25－+70 |
|
Dimension (mm) |
196X30.5X27 |
|
Weight (g) |
250 |

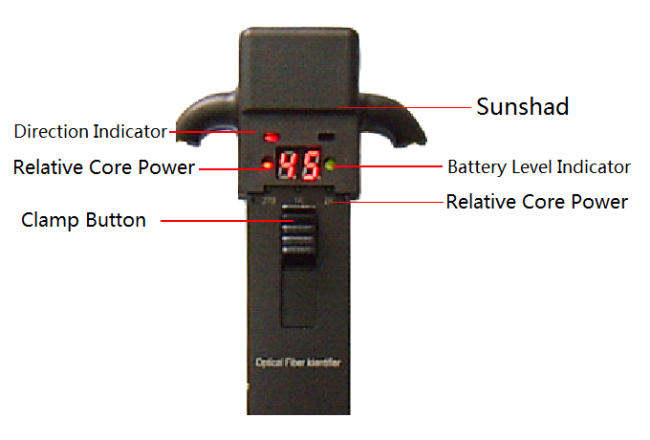

Features
l Easy-to-use with “ONE KEY” operation;
l
Efficiently identifies the fiber transmission direction and
l
frequency tone (270Hz, 1KHz, 2KHz) with audible warning;
l Displays the relative core power;
l
Easy-to-replace adaptors;
l Durable metal housing and quality construction;
l Lower power indication.
l It's easy to carry and loss adaptors can be avoided with new adaptors box.
l Sunshade can avoid the interference with the natural light
