The Output Power Of The 245*105* 320mm Adjustable Laser Source Can Reach Up To 10dbm

Product Description:

Tunable laser sources are cutting-edge products designed to meet the demands of precision optical testing and research applications. With its advanced functions and high-performance specifications, this tunable laser source offers unparalleled flexibility and accuracy.

Output power: This multi-functional laser source can provide an output power of up to +10 dBm, allowing for powerful signal generation and transmission.

Features:

• Specification

  Model #	U8112C-P
  Band Option	C
  Wavelength Tuning range (nm)	1525~1568
  Output Power	≥13dBm
  Power Adjust Range (Option)	25 dB
  Wavelength resolution	1.0 pm
  Absolute wavelength accuracy	± 10 pm, typ. ＜5 pm
  Relative wavelength accuracy	±5 pm, typ. ± 2 pm
  Wavelength repeatability	± 2 pm, typ. ±1 pm
  Wavelength stability	≤± 2 pm (24 hrs at constant temperature)
  Tuning speed	≤ 2 ms per step
  Power stability	≤ ± 0.01dB, (15min).
  Power repeatability	± 0.05dB
  Power linearity	± 0.3dB
  Power flatness versus wavelength	0.3dB typ. 0.5dB max.
  Side-mode Suppression ratio	≥ 35dB
  Relative intensity noise	＜ -135dB
  Power	AC 100 - 240 V ± 10%, 48 - 66 Hz, 100 VA max.
  Storage temperature	−40°C to +80°C
  Operating temperature	0°C to +45°C
  Dimensions	245 mm W, 105 mm H, 320 mm D
  Weight	2.0 kg

Applications:

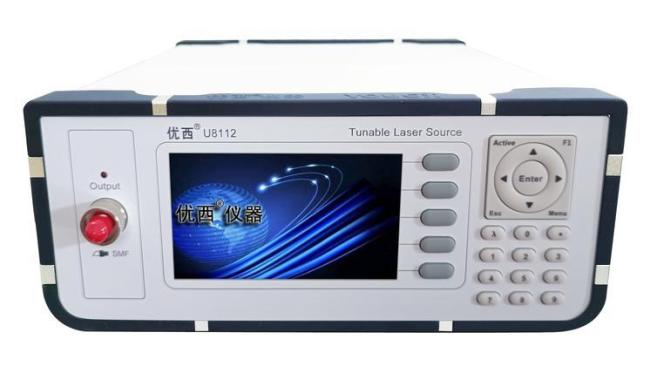

The U8112 tunable laser source is a multi-functional product. Its impressive functions and specifications can be used in various application scenarios and scenarios.

Another potential application scenario for the UCHI U8132 tunable laser source is in the field of research and development. Due to its precise control interface options, including USB and RS232, researchers and scientists can conduct experiments using this laser source. This can be easily integrated into the existing laboratory setup and equipment.
