Lithium Ion Battery Pack Excavator Battery 48V450Ah Customizable
Excavator lithium ion battery pack 48V450Ah, customizable.
Technical Parameters
| NO. | Item | Specification | Remark |
| 1 | Size | 1030mm*515mm*802mm | / |
| 2 | Combination mode | 3P15S | / |
| 3 | Rated capacity | 450Ah | 25±2℃,1.0C |
| 4 | Nominal voltage | 48V | / |
| 5 | High resistance | ≧50MΩ(DC500V) | 25±2℃ |
| 6 | Weight | ≈255kg | / |
| 7 | Total power of module | 21.6kwh | / |
| 8 | Maximum charging voltage | 54V | / |
| 9 | Maximum continuous charging current | 0.5C | 25±5℃ |
| 10 | Discharge cut-off voltage | 40.5V | / |
| 11 | Maximum continuous discharge current | 1C | 25±5℃ |
| 12 | Standard cycle life | ≥3000 times 80%Capacity retention | 1C/1C 25℃ |
Product Description

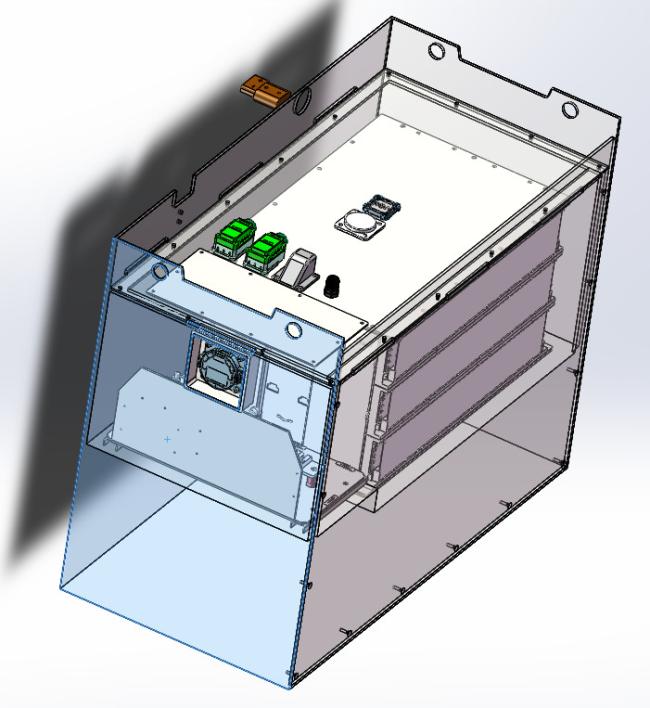

1. This product is the standard module of EIKTO 8-core lithium iron phosphate battery, which is made of YJT40110413-150Ah lithium iron phosphate battery in series and parallel.
2. Laser welding is performed between batteries using iron connectors.
3. The iron material is used as the shell to stabilize the module, which has high structural strength.
4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.
5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.
6. The module has the advantages of light weight, strong stability, high safety and long cycle life.
Product Advantages
1. This product is the standard module of eikto 8-core lithium iron phosphate battery, which is made of yjt40110413-150ah lithium iron phosphate battery in series and parallel.
2. Laser welding is performed between batteries using iron connectors.
3. The iron material is used as the shell to stabilize the module, which has high structural strength.
4. The module can be equipped with a battery heating system to make the battery work normally in a low temperature environment.
5. The internal structure of the module is made of refractory materials, which greatly reduces the risk caused by heating.
6. The module has the advantages of light weight, strong stability, high safety and long cycle life.
Samples Show
Application
The products are widely used in industrial vehicles, engineering vehicles and other fields.
