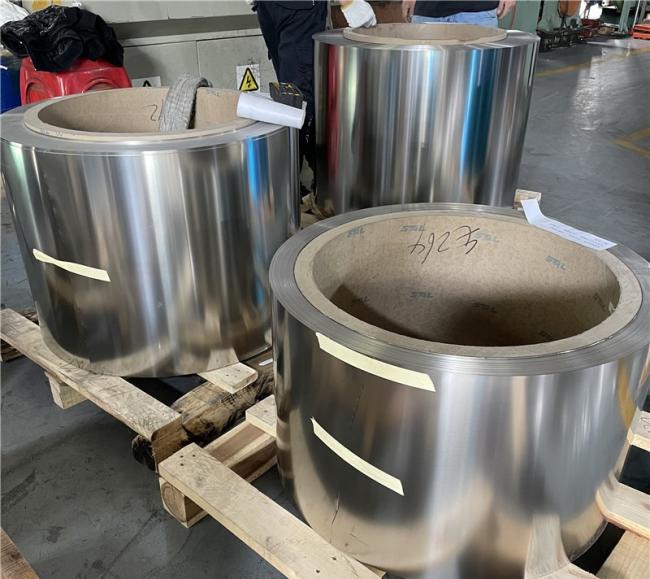

DIN 17222 C75 1.0605 Cold Rolled Steel Strips for Springs

Cold rolled steel strip for springs is distinguished by high dimensional accuracy and good surface quality and, in the cold rolled + hardened + tempered condition (H + A) offers the possibility of achieving high values of hardness, tensile strength and elastic limit.

C75 1.0605 Introduce

C75 1.0605 steel is one of the higher carbon steels used for high hardness in the fully hardened condition. In such condition the steel is more brittle than the lower carbon steels. Applications include springs.

C75 1.0605 Dimensions and permissible deviations

Thickness: 0.1 to 4mm; Tolerances: +/- 0.008 to 0.11 mm

Width: 10 to 600mm; Tolerances: +/- 0.15 to 0.60mm

C75 1.0605 Equivalent Grade

C75 1.0605 Chemical composition

C75 1.0605 Treatment condition on delivery

Cold rolled + soft annealed : G

Cold rolled + hardened + tempered : H + A

C75 1.0605 Mechanical properties in the cold rolled + soft annealed condition G

C75 1.0605 Tensile strength in the cold rolled + hardened + tempered condition (H + A)

C75 1.0605 Vickers hardness in the cold rolled + hardened + tempered condition (H + A)

C75 1.0605 Surface condition

Strip to be supplied in the

1 cold rolled + soft annealed G or

2 cold rolled + soft annealed + cold rolled (G + K) condition

must have a bright, metallically clean surface.

Cold rolled + hardened + tempered (H + A) strip is supplied, as agreed at the time of ordering, with

1 grey-blue (GR),

2 bright (8K),

3 polished (P) or

4 polished and colour-tempered (P & AF) surface.

C75 1.0605 Types of heat treatment

Approximate values for heat treatment and minimum hardness values in the hardened condition of cold rolled steel strips for springs

C75 1.0605 Acceptance testing and test certificates

EN 10204/3.1 with all relevant data reg. chem. composition, mech. properties and results of testing.
