100G QSFP28 LR4 CWDM4 1310nm 10km Transceiver Fiber Optic Transceiver Module
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 working days
Brand:
Optowix
Product Description
100Gbps QSFP28 Transceiver, Single Mode, 10km Reach
Features
- Hot-pluggable QSFP28 form factor
- Supports 103.1Gb/s aggregate bit rates
- Maximum link length of 10km on Single Mode Fiber (SMF)
- Power dissipation < 3.5W
- Built-in digital diagnostic functions
- Built-in CDR
- 4x25.78Gb/s DFB-based LAN-WDM transmit
- Duplex LC receptacles
- Single 3.3V power supply
- RoHS compliant
- Operating case temperature: 0~+70°C
Applications
- 100GBASE-LR4 100G Ethernet
Standards
- QSFP28 MSA
- IEEE 802.3ba
Ordering Information
| Part Number | Product Description | |||||||||||||||||||||
| MK1Q-LRTA | 100G QSFP28 LAN WDM4 LC 10km, 0°C~+70°C | |||||||||||||||||||||
Description
- MK1Q-LRTA is 100Gb/s QSFP28 LR4 transceiver. It is compliant with the QSFP28 MSA and IEEE 802.3ba. QSFP28 LR4 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber.
Absolute Maximum Ratings
Module performance is not guaranteed beyond the operating range.
Exceeding the limits below may damage the transceiver module permanently.

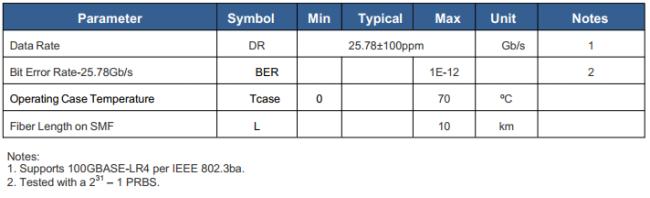

Recommended Operating Condition

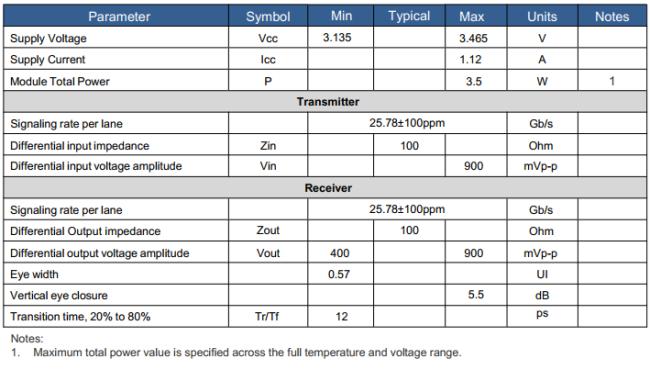

Electrical Specification

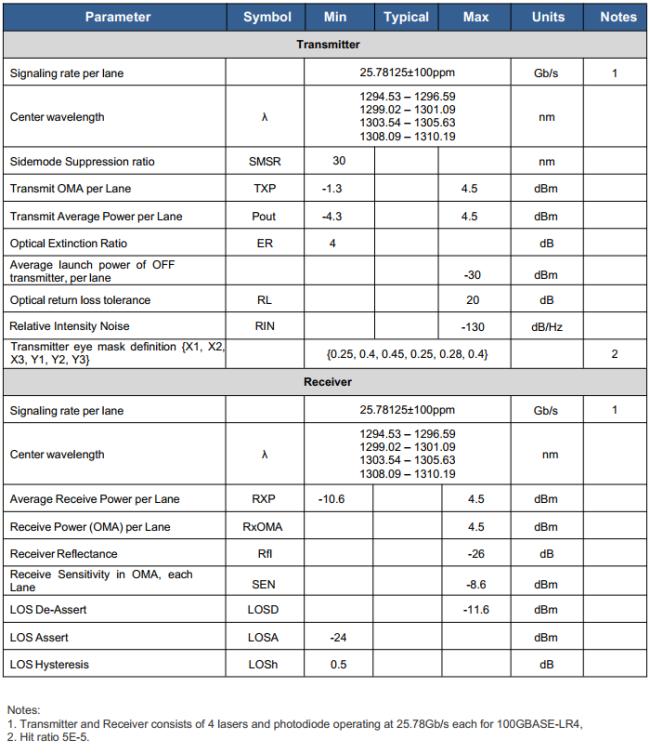

Optical Specification
