300W Charge Lithium Battery With Lead Acid Charger 96V 84V 72V 3A 60V 4A 48V 5A 36V 7A 24V 10A 12V 15A
Lithium Battery Charger 300W LiFePO4 Lead Acid 96V 84V 72V 3A 60V 4A 48V 5A 36V 7A 24V 10A 12V 15A Battery Charger
Specifications:
| Model: | OK-CH-300 | Max Power: | 300W |
| Shell: | Aluminium profile | Size: | 188*90*53mm |
| AC Input: | 85V-265V/40-70Hz | Waterproof: | IPx4 |
| Max Efficiency: | >=89% | Operating Temperature: | -30 to 65℃ |
| Storage Temperature: | -40 to 95℃ | Noise: | <=40dB |
| Cooling: | Active cooling with fan | ||
| Protection: |
Input low-voltage&over-voltage protection Overheat protection Output empty-load protection Output short&reverse protection Output over-current&over-voltage protection Automatic shutdown when fully charged |
||
Common Output:
| Common Output | ||||||
| Model | Nominal Voltage | Lead Acid | LiFePO4 | NCM/NCA | Max Charge Current | Dimensions |
|
E3 |
12V | 14.7V | 14.6V | 16.8V | 15A |
Size:188*90*53mm |
| 24V | 29.4V | 29.2V | 29.4V | 10A | ||
| 36V | 44.1V | 43.8V | 42V | 7A | ||
| 48V | 58.8V | 58.4V | 58.8V | 5A | ||
| 60V | 73.5V | 73V | 67.2V | 5A | ||
| 72V | 88.2V | 87.6V | 84V | 3A | ||
| 84V | 102.9V | / | 100.8V | 3A | ||
| 96V | 117.6V | / | 117.6V | 3A | ||
LED Indicator:
For Lead Acid Battery:
1,Battery power <80%,the red light blinks.
2,80% <Battert power<90%,the yellow light blinks.
3,90%<Battery Power<100%,the green light blinks.
4,Battery power=100%,the green light is always on.

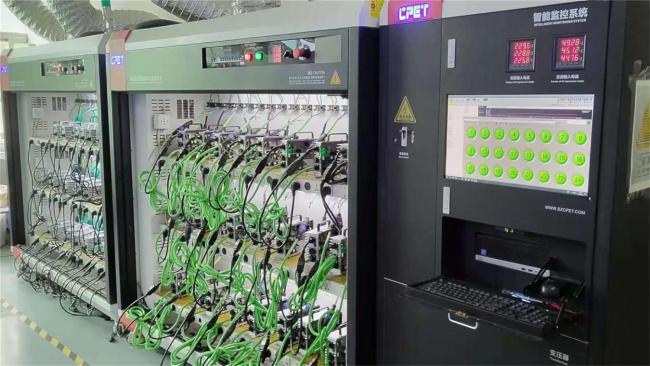

Aging:
