15kw 20kw Off Grid Solar Power System 10kw 30kw 40kw 50kw 60kw
Off Grid Solar Power System KOEOK 10Kw 15Kw 20Kw 30KW 40Kw 50Kw 60Kw Complete Solar Energy Battery Storage Systems
Overview
Quick Details
Warranty: 10YEARS
Free installation service: Yes
Place of Origin: China
Brand Name: OKTANMAX
Model Number: OKBSS03
Application: Home, Commercial
Solar Panel Type: Monocrystalline Silicon, Polycrystalline Silicon
Battery Type: Lead-Acid, Lithium Ion, Lead Acid Or Lithium
Controller Type: MPPT
Mounting Type: Ground Mounting, Roof Mounting
Load Power (W): 50kw, 30KW, 20KW, 10KW, 10-120KW
Output Voltage (V): 220V/380V, 3/N/PE,380/400/415Vac
Output Frequency: 50/60HZ
Work Time (h): Depend On Sunshine Duration
Certificate: CE
Pre-sales project design: Yes
Mounting System: Pitched Roof For Standards
Online Monitoring: Wifi/Lan/GPRS
Off Grid Inverter: 10-120KW 3 Phase
Battery Rack: Optional
Solar panel: Half Cut
System Type: Off-grid Solar PV System
Solar Panels Warranty: 25Years
Controller: MPPT Type
Supply Ability
1000 Piece/Pieces per month
Packaging & Delivery
Packaging Details
Plywood with Pallets
Port: GuangDong
Lead Time:
| Quantity(Watts) | 1 - 10000 | >10000 |
| Est. Time(days) | 10 | To be negotiated |
What's Included
| Model | SPxxxKW3-OFF xxx = 10 20 30 40 50 60 | |||||
| Off Grid Inverter( #/ KW) | 1/10KW | 1/20KW | 1/30KW | 1/40KW | 1/50KW | 1/60KW |
| 410W Mono Solar Panel (Pcs) | 26 | 42 | 78 | 104 | 156 | 156 |
| PV Combiner Box (Set) | 1 | 1 | 2 | 2 | 3 | 3 |
| 2V Lead Acid Gel/ AGM Battery | 200AH | 300AH | 400AH | 500AH | 600AH | 600AH |
| Quantity of Battery (Pcs) | 180 | 180 | 180 | 180 | 180 | 180 |
| DC Cable (m) | 200 | 300 | 600 | 600 | 1200 | 1200 |
| Mounting System | Customized | |||||
| Battery Rack | Customized | |||||
| Battery Cable (Pcs) | 180 | 180 | 180 | 180 | 180 | 180 |
| MC4 (Pair) | 10 | 20 | 30 | 30 | 60 | 60 |
| PV Tools | Wire Cable Cutter&Stripper,Disassembly Tool | |||||
| Model | SPxxxKW3-OFF xxx = 80 100 120 | ||
| Off Grid Inverter( #/ KW) | 1/80KW | 1/100KW | 1/120KW |
| 410W Mono Solar Panel (Pcs) | 208 | 260 | 313 |
| PV Combiner Box (Set) | 4 | 5 | 6 |
| 2V Lead Acid Gel/ AGM Battery | 800AH | 1000AH | 1200AH |
| Quantity of Battery (Pcs) | 180 | 180 | 180 |
| DC Cable (m) | 2000 | 2400 | |
| Mounting System | Customized | ||
| Battery Rack | Customized | ||
| Battery Cable (Pcs) | 180 | 180 | 180 |
| MC4 (Pair) | 80 | 90 | 100 |
| PV Tools | Wire Cable Cutter&Stripper,Disassembly Tool | ||
Note: Product dimensions and physical appearance in this data sheet are nominal.Sunpal Power reserves the right to make the product changes from time to time,without prior notification, which may change the dimensions and/or physical appearance shown.

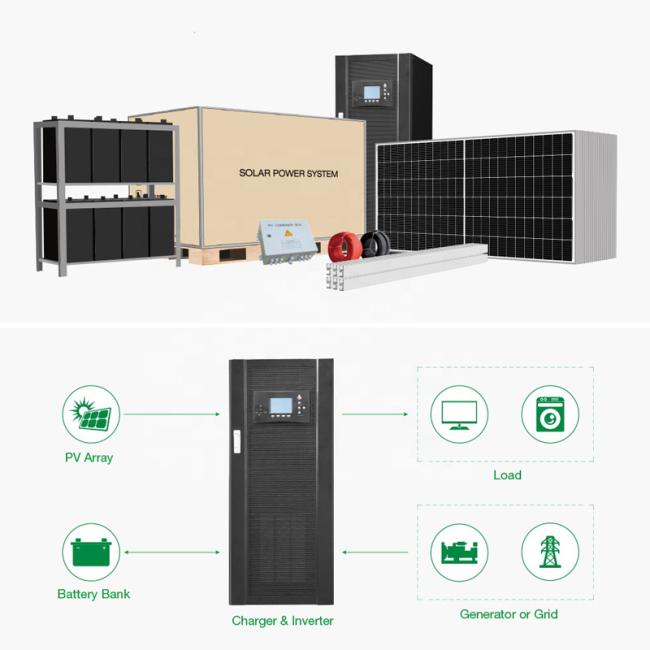

Off Grid Solar System Configuration:
Mono Solar Panel
Peak Power Watts: 410W (SP410M-72H)
Module Efficiency(%):20.2
Module Dimensions:2024×1004×35 mm (79.69×39.53×1.38 inches)
Junction Box:IP 68 rated
Frame:Silver / Black Anodized Aluminium Alloy
Warranty:25 Years
Off Grid Solar Inverter
This Off-Grid solar system is available in 10KVA ~ 120KVA models with DSP digital control technology, disturbance MPPT control and multi-level control technology to enable the system to track the maximum power of solar panels fast.
Lead Acid AGM/Gel Battery
Capacity(kWh): 0.4/0.8/1.2/1.6/2
Nominal Voltage(Vdc): 2 12
Nominal Capacity(AH): 200/400/600/800/1000
Depth of Discharge: 70%
Warranty:3 Years
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Warranty: 10 Years
PV Combiner Box
IP Rating: IP65
Rated Voltage: 1000VDC
Input cable terminal: 4-6mm2
DC Switch
Warranty:5 Years
DC Cables
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
| What Our Distributor Receive | |
| System Design and Support | Technical Support |
| Installer Training Seminars | Solar PV Best Practices Documentation |
| Marketing & Sales Support | Samples Assets |
| Preferential Pricing | Exhibition Support |
