High-frequency 4-20mA Hart Radar Level Transmitter 26GHz Pulse Corrosive Liquid Radar Level Gauge with CE and IP67

High-frequency 4-20mA Hart Radar Level Transmitter 26GHz Pulse Corrosive Liquid Radar Level Gauge with CE and IP67

26GHz Radar Level Transmitter Product Description

The NYRD86 Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions.

26GHz Radar Level Transmitter Working Principle

The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit part and automatically converted into a level signal (because the pulse propagation speed is extremely fast, the electromagnetic wave reaches the target and is reflected back to the receiver. The time it takes to go back and forth is almost instantaneous).

26GHz Radar Level Transmitter Typical Applications

1. Various liquids (strong corrosion, low dielectric constant, stirring, steam, crystallization, condensation, slurry, high temperature and high pressure, etc.)

2. All kinds of dust (strong dust, floating dust, cement powder, lime powder, fly ash, crystallization, etc.)

3. Various solids (grain, pebbles, iron ore, coal, etc.)

26GHz Radar Level Transmitter Technical Parameters

Note: Products can be customized according to the specific requirements of users.

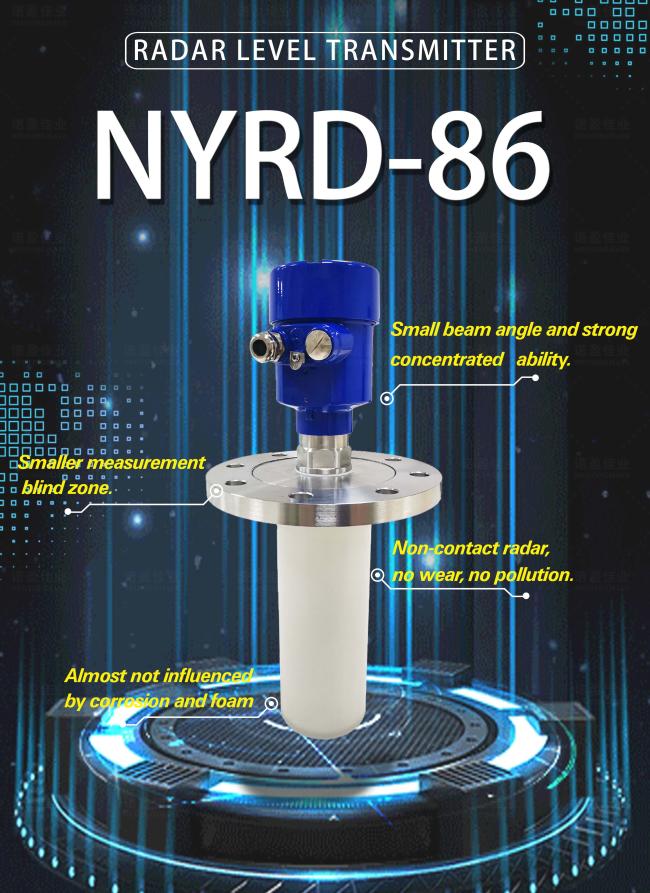

26GHz Radar Level Transmitter Pictures
