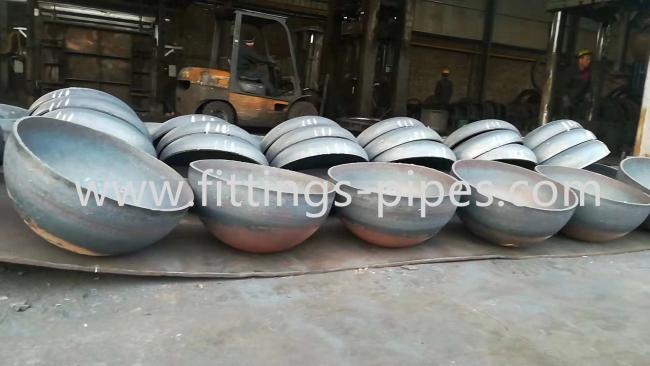

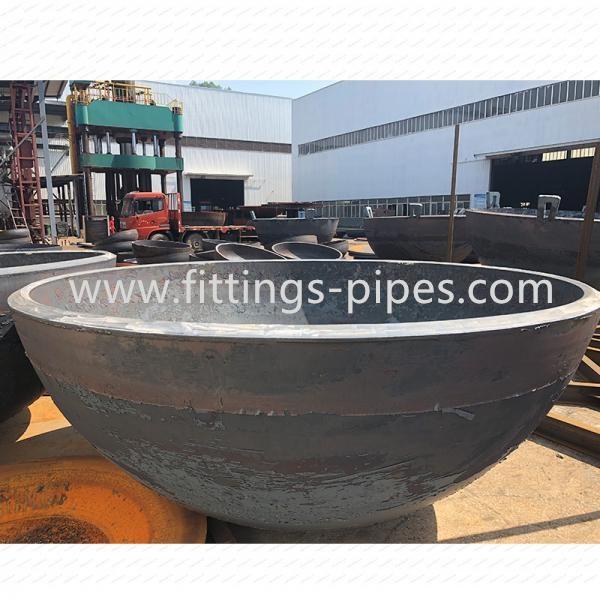

S31803 12Cr2Mo1 Alloy Steel Pipe End Cap SCH5S SCH160 Rustproof
Alloy steel seamless steel pipe 12Cr2Mo1 16 "alloy head end ca
specific characteristics
During splicing, only radial and circumferential weld directions are allowed. This requirement may be cancelled in the future for large pipe caps. The splicing distance shall be more than 3 δ, It shall not be less than 100mm (the welding heat affected zone is a high stress zone, and the chemical composition in this zone will be burned. Therefore, it is necessary to avoid the high stress zone, which is related to the thickness. According to practical experience, the stress attenuation length is greater than 3 δ, And not less than 100mm). However, refrigeration equipment is difficult to meet this requirement, which has its particularity.
Use of head
Head is an indispensable part of pressure vessel equipment in petrochemical, atomic energy and food pharmaceutical industries.
1. The head is the end cover on the pressure vessel and a main pressure bearing part of the pressure vessel.
2. The quality of the head is directly related to the long-term safe and reliable operation of the pressure vessel.
| Name | stainless steel pipe fitting plastic caps | |
| Products | Elbow,bend equal /reduce tee,concentric/eccentric reducer , cap,flange | |
| Size |
Seamless(SMLS) : 1/2"-24" ,DN15-DN600 Butt Welded (seam) :24”-72",DN600-DN1800 |
|
| Type |
LR 30,45,60,90,180 degree SR 30,45,60,90,180 degree 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D. |
|
| Thickness | SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS | |
| Standard | ASME,ANSI B16.9; | |
| DIN2605,2615,2616,2617, | ||
| JIS B2311 ,2312,2313; | ||
| EN 10253-1 ,EN 10253-2 | ||
| Material | ASTM | Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
| Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,00Cr17Ni14Mo2, ect.) | ||
|
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3 |
||
| DIN | Carbon steel:St37.0,St35.8,St45.8 | |
| Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
| Alloy steel:1.7335,1.7380,1.0488(1.0566) | ||
| JIS | Carbon steel:PG370,PT410 | |
| Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
| Alloy steel:PA22,PA23,PA24,PA25,PL380 | ||
| GB |
10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo |
|
| Surface treatment | Transparent oil, rust-proof black oil or hot galvanized | |
| Packing | In wooded cases or pallets, or as for clients' requirements | |
| Certification | API and ISO 9001:2000 | |
| Payment Term | T/T ,West Union, | |
| Trade Term | FOB,CIF,CFR(30% down payment in advance, balance should before shipment) | |
Design standards: national standard, German standard, Japanese standard, American standard (ASME DIN JIS BS GB/T JB SH HG)
Pressure range: 5s-120s Size range: 15-900mm
Nominal diameter: 1-10 (mm) (diameter: DN15-DN1200)
Wall thickness: 1-100 (mm) (SCH5-SCH160)
Materials: stainless steel 304, 304L, 316, 316L, 310, 317, 321, etc
Uses: water, beverage, beer, food, petrochemical industry, nuclear power, machinery, medical equipment, fertilizer, shipbuilding, waterproof treatment, pipeline, etc
Packaging: wooden box, carton service: technical consultation, installation guidance, etc
The r part of the dished pipe cap shall not be spliced, which will reduce the thickness and high stress.
