ASTM A420 SCH80 316L Stainless Steel End Cap Hot Rolled Cold Rolled
316L 14 inch SCH80 stainless steel end cap quality assurance

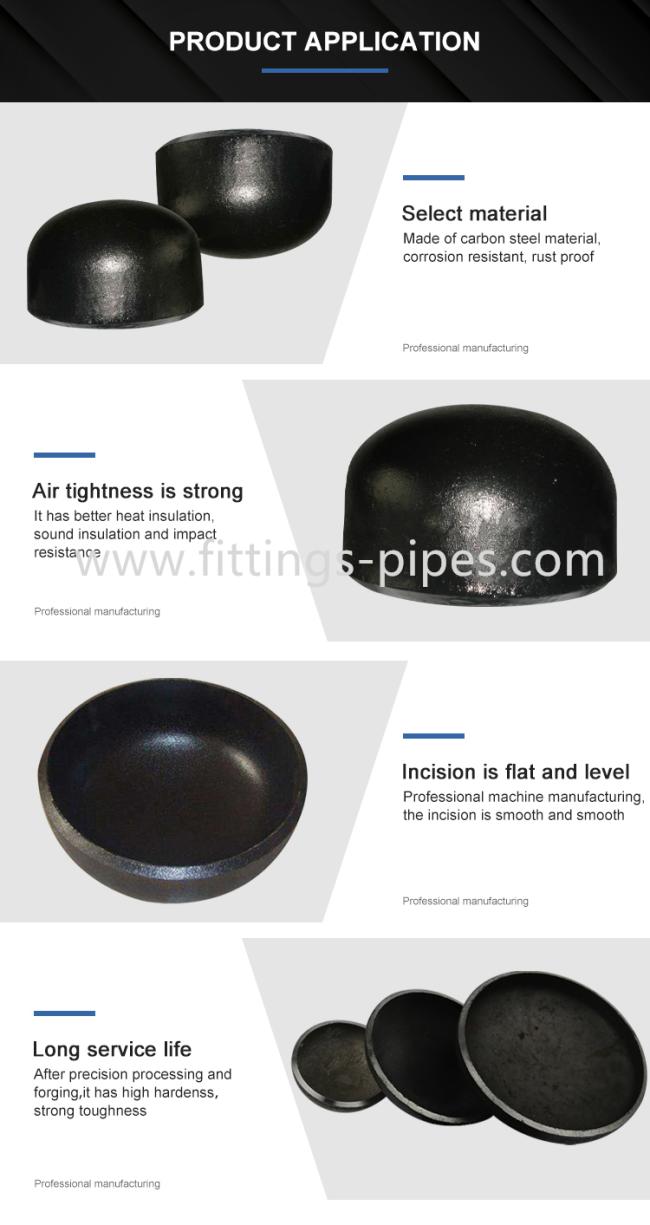

Alloy pipe caps, also known as plugs, caps, pipe covers, and bulkhead, are installed on the external threads of pipe ends to cover pipe fittings. It is used to close the pipeline and has the same function as the pipe plug, but the pipe cap can be directly screwed on the pipe without other pipe fittings. It is generally used at the sampling port at the end of the pipe. After the sampling is completed, the pipe cap should be screwed on. Secondly, under special circumstances, after the pipe cap is screwed off, the pipe can be connected to the screw port for temporary continuous material collection or extraction. Pipe caps are generally used under low pressure to facilitate disassembly and maintenance, and pipe caps are generally not used under high and medium pressure. The alloy pipe cap is generally used at the sampling port at the end of the pipe. After the sampling is completed, the pipe cap should be screwed on. Secondly, under special circumstances, after the pipe cap is screwed off, the pipe can be connected to the screw port for temporary continuous material collection or extraction. Alloy pipe cap introduction: pipe cap is also called plug, cap, pipe cap and bulkhead. It is installed on the external thread of the pipe end to cover the pipe fittings. It is used to close the pipeline and has the same function as the pipe plug, but the pipe cap can be directly screwed on the pipe without other pipe fittings.
| Name | stainless steel pipe fitting plastic caps | |
| Products | Elbow,bend equal /reduce tee,concentric/eccentric reducer , cap,flange | |
| Size |
Seamless(SMLS) : 1/2"-24" ,DN15-DN600 Butt Welded (seam) :24”-72",DN600-DN1800 |
|
| Type |
LR 30,45,60,90,180 degree SR 30,45,60,90,180 degree 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D. |
|
| Thickness | SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS | |
| Standard | ASME,ANSI B16.9; | |
| DIN2605,2615,2616,2617, | ||
| JIS B2311 ,2312,2313; | ||
| EN 10253-1 ,EN 10253-2 | ||
| Material | ASTM | Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
| Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,00Cr17Ni14Mo2, ect.) | ||
|
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3 |
||
| DIN | Carbon steel:St37.0,St35.8,St45.8 | |
| Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
| Alloy steel:1.7335,1.7380,1.0488(1.0566) | ||
| JIS | Carbon steel:PG370,PT410 | |
| Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
| Alloy steel:PA22,PA23,PA24,PA25,PL380 | ||
| GB |
10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo |
|
| Surface treatment | Transparent oil, rust-proof black oil or hot galvanized | |
| Packing | In wooded cases or pallets, or as for clients' requirements | |
| Certification | API and ISO 9001:2000 | |
| Payment Term | T/T ,West Union, | |
| Trade Term | FOB,CIF,CFR(30% down payment in advance, balance should before shipment) | |
Design standards: national standard, German standard, Japanese standard, American standard (ASME DIN JIS BS GB/T JB SH HG)
Pressure range: 5s-120s Size range: 15-900mm
Nominal diameter: 1-10 (mm) (diameter: DN15-DN1200)
Wall thickness: 1-100 (mm) (SCH5-SCH160)
Materials: stainless steel 304, 304L, 316, 316L, 310, 317, 321, etc
Uses: water, beverage, beer, food, petrochemical industry, nuclear power, machinery, medical equipment, fertilizer, shipbuilding, waterproof treatment, pipeline, etc
Packaging: wooden box, carton service: technical consultation, installation guidance, etc
The r part of the dished pipe cap shall not be spliced, which will reduce the thickness and high stress.
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory, has more than 20 years experience in pipe fittings production.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in cangzhou City, hebei Province,China.
3.Q:How does your factory do regarding quality control?
A: We are ISO9001& PED certified by TUV. We serious control the quality from raw material to finished pipe fittings. So that we can 100% sure our goods is qualified.
4. Q: Price high ?
A: Our price is workable. We had tried use auto equipment to save Workers cost, and control other costs. like human sources, logistics etc.
5.Q: After sales service.
A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.
