ASTM A105 SCH100 22inch Carbon Steel End Cap Hot Rolled And Cold Rolled
ASTM A105 SCH100 22 inch carbon steel end cap hot rolled and cold rolled

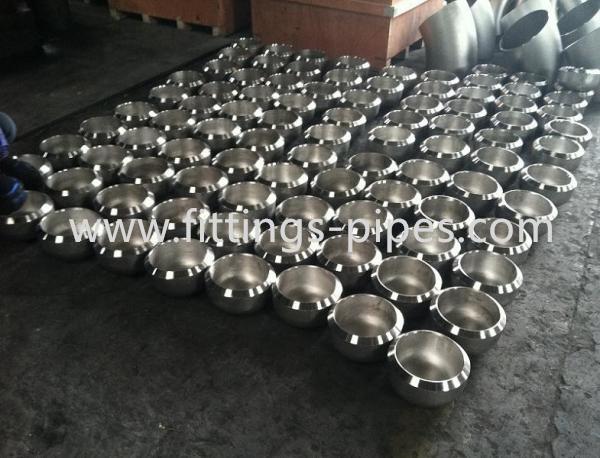

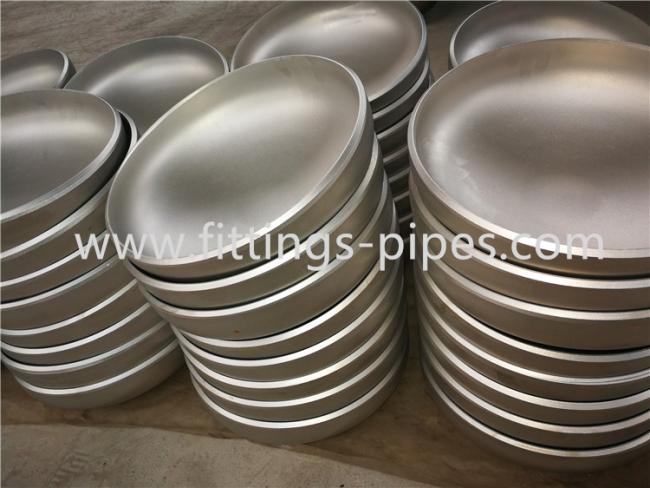

The head is a component of a container that connects the cylinder by welding. (As shown in the figure below) According to different geometric shapes, they can be divided into spherical, elliptical, dished, spherical crown, conical shell, and flat cap types, among which spherical, elliptical, dished, and spherical crown type heads are collectively referred to as convex heads. In welding, it is divided into butt welding heads and socket welding heads. Used for various container equipment, such as storage tanks, heat exchangers, towers, reactors, boilers, and separation equipment. Materials include carbon steel (A3, 20 #, Q235, Q345B, 16Mn, etc.), stainless steel (304, 321, 304L, 316, 316L, etc.), alloy steel (15Mo3, 15CrMoV, 35CrMoV, 45CrMo), aluminum, titanium, copper, nickel, and nickel alloys, etc
Executive standards
Executive standard of head:
Pressure Vessel Head GB/T25198-2010
Piping Standards
GB/T12459-2005
GB/T13401-2005
Electricity standards
DL/T695-1999
D-GD87-0607
Petrochemical standards
SH3408-1996
Alloy hemispherical head
Alloy hemispherical head
SH3409-1996
| Name | Carbon steel pipe fittings, plastic caps | |
| Products | Elbow,bend equal /reduce tee,concentric/eccentric reducer , cap,flange | |
| Size |
Seamless(SMLS) : 1/2"-24" ,DN15-DN600 Butt Welded (seam) :24”-72",DN600-DN1800 |
|
| Type |
LR 30,45,60,90,180 degree SR 30,45,60,90,180 degree 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D. |
|
| Thickness | SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS | |
| Standard | ASME,ANSI B16.9; | |
| DIN2605,2615,2616,2617, | ||
| JIS B2311 ,2312,2313; | ||
| EN 10253-1 ,EN 10253-2 | ||
| Material | ASTM | Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
| Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,00Cr17Ni14Mo2, ect.) | ||
|
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3 |
||
| DIN | Carbon steel:St37.0,St35.8,St45.8 | |
| Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
| Alloy steel:1.7335,1.7380,1.0488(1.0566) | ||
| JIS | Carbon steel:PG370,PT410 | |
| Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
| Alloy steel:PA22,PA23,PA24,PA25,PL380 | ||
| GB |
10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo |
|
| Surface treatment | Transparent oil, rust-proof black oil or hot galvanized | |
| Packing | In wooded cases or pallets, or as for clients' requirements | |
| Certification | API and ISO 9001:2000 | |
| Payment Term | T/T ,West Union, | |
| Trade Term | FOB,CIF,CFR(30% down payment in advance, balance should before shipment) | |
Design standards: national standard, German standard, Japanese standard, American standard (ASME DIN JIS BS GB/T JB SH HG)
Pressure range: 5s-120s Size range: 15-900mm
Nominal diameter: 1-10 (mm) (diameter: DN15-DN1200)
Wall thickness: 1-100 (mm) (SCH5-SCH160)
Materials: stainless steel 304, 304L, 316, 316L, 310, 317, 321, etc
Uses: water, beverage, beer, food, petrochemical industry, nuclear power, machinery, medical equipment, fertilizer, shipbuilding, waterproof treatment, pipeline, etc
Packaging: wooden box, carton service: technical consultation, installation guidance, etc
The r part of the dished pipe cap shall not be spliced, which will reduce the thickness and high stress.
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory, has more than 20 years experience in pipe fittings production.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in cangzhou City, hebei Province,China.
3.Q:How does your factory do regarding quality control?
A: We are ISO9001& PED certified by TUV. We serious control the quality from raw material to finished pipe fittings. So that we can 100% sure our goods is qualified.
4. Q: Price high ?
A: Our price is workable. We had tried use auto equipment to save Workers cost, and control other costs. like human sources, logistics etc.
5.Q: After sales service.
A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.
