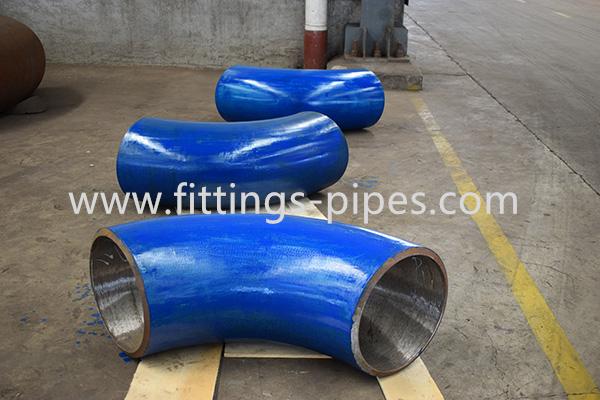

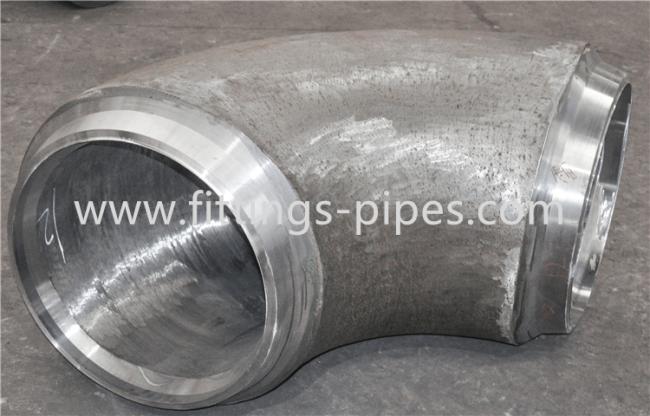

Seamless Steel Pipe Elbow , A335 P11 P22 Sch5s 90 Degree Lr Elbow
Price:
consult
MOQ:
10PC
Delivery Time:
7-15 work days
Brand:
hongcheng
Product Description
Alloy Steel Elbow 90 A335 P11 P22 Wb36 P91 P92 Steel Pipe Elbow Astm A234 Wp11 Seamless Sch5s 90 Degree Lr Elbow
Product Description
| Type | Elbow |
| Size | Seamless 1/2" To 24" Welded To 72"(DN8~DN1000) |
| Wall thickness | Sch5S-Sch160, XS,XXS(1.2mm~34mm) |
| Standards | ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc |
| Material |
Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L Alloy Steel:A335 p91 p91 p11 p5 p9 p22 s31803.s32750.S32760. Temperature: ASTM A420 WPL 1, WPL 3, WPL 6 |
| Surface treatment | Sand Rolling, Sand Blasting ,Acid Cleaning. |
| Packing | wooden case, pallet or as customers' requirement |
| Applications | Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc |
| Min order | 1 pieces |
| Delivery time | 10 after receipt of advanced payment |
| Certificate | ISO 9001-2008, CE |
| Productivity | 50000 pieces per year |
Product Parameters
| NPS | O.D. D |
90° Long Rad Center to End A |
45° Long Rad Center to End B | 90° Center to End A | 45° Center to End B |
| 1/2 | 21.3 | 38 | 16 | ||
| 3/4 | 26.7 | 38 | 19 | 57 | 24 |
| 1 | 33.4 | 38 | 22 | 76 | 31 |
| 1¼ | 42.2 | 48 | 25 | 95 | 39 |
| 1½ | 48.3 | 57 | 29 | 114 | 47 |
| 2 | 60.3 | 76 | 35 | 152 | 63 |
| 2½ | 73 | 95 | 44 | 190 | 79 |
| 3 | 88.9 | 114 | 51 | 229 | 95 |
| 3½ | 101.6 | 133 | 57 | 267 | 111 |
| 4 | 114.3 | 152 | 64 | 305 | 127 |
| 5 | 141.3 | 190 | 79 | 381 | 157 |
| 6 | 168.3 | 229 | 95 | 457 | 189 |
| 8 | 219.1 | 305 | 127 | 610 | 252 |
| 10 | 273 | 381 | 159 | 762 | 316 |
| 12 | 323.8 | 457 | 190 | 914 | 378 |
| 14 | 355.6 | 533 | 222 | 1067 | 441 |
| 16 | 406.4 | 610 | 254 | 1219 | 505 |
