90 Degree Steel Pipe Elbow Astm A234 Asme B16.9 SCH10 SCH20 Thickness
Price:
Discussion
MOQ:
1PC
Delivery Time:
7-15 work days
Brand:
hongcheng
Product Description

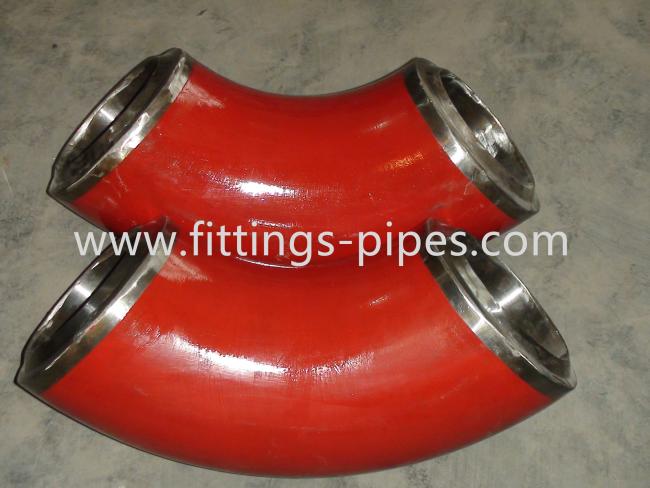

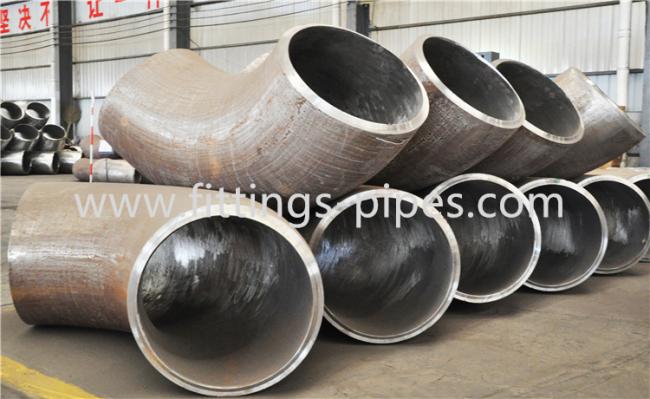

Steel Pipe Elbow Steel Fitting, Elbow 90deg Lr Bw Astm A234 Wp11, Wp22, Asme B16.9
Long Radius Elbow 90DEG
Standard
Nominal
|
Outside
|
Inside
|
Wall
|
Center
|
Pipe
|
Weight
|
1/2 |
0.84 |
0.622 |
0.109 |
1.5 |
40 |
0.16 |
3/4 |
1.05 |
0.824 |
0.113 |
1.5 |
40 |
0.17 |
1 |
1.32 |
1.049 |
0.133 |
1.5 |
40 |
0.4 |
1 1/4 |
1.66 |
1.38 |
0.14 |
1.88 |
40 |
0.55 |
1 1/2 |
1.9 |
1.61 |
0.145 |
2.25 |
40 |
0.8 |
2 |
2.38 |
2.07 |
0.154 |
3 |
40 |
1.6 |
2 1/2 |
2.88 |
2.47 |
0.203 |
3.75 |
40 |
3.2 |
3 |
3.5 |
3.07 |
0.216 |
4.5 |
40 |
4.8 |
3 1/2 |
4 |
3.55 |
0.226 |
5.25 |
40 |
6.6 |
4 |
4.5 |
4.03 |
0.237 |
6 |
40 |
8.9 |
5 |
5.56 |
5.05 |
0.258 |
7.5 |
40 |
15.1 |
6 |
6.62 |
6.07 |
0.28 |
9 |
40 |
24 |
8 |
8.62 |
7.98 |
0.322 |
12 |
40 |
47.8 |
10 |
10.75 |
10.02 |
0.365 |
15 |
40 |
83.4 |
12 |
12.75 |
12 |
0.375 |
18 |
* |
123 |
14 |
14 |
13.25 |
0.375 |
21 |
30 |
155 |
16 |
16 |
15.25 |
0.375 |
24 |
30 |
206 |
18 |
18 |
17.25 |
0.375 |
27 |
* |
262 |
20 |
20 |
19.25 |
0.375 |
30 |
20 |
324 |
24 |
24 |
23.25 |
0.375 |
36 |
20 |
466 |
30 |
30 |
29.25 |
0.375 |
45 |
* |
720 |
36 |
36 |
35.25 |
0.375 |
54 |
* |
1,039 |
42 |
42 |
41.25 |
0.375 |
63 |
* |
1,420 |
48 |
48 |
47.25 |
0.375 |
72 |
* |
2,000 |
Extra Strong
Nominal
|
Outside
|
Inside
|
Wall
|
Center
|
Pipe
|
Weight
|
1/2 |
0.84 |
0.546 |
0.147 |
1.5 |
80 |
0.26 |
3/4 |
1.05 |
0.742 |
0.154 |
1.5 |
80 |
0.29 |
1 |
1.32 |
0.957 |
0.179 |
1.5 |
80 |
0.48 |
1 1/4 |
1.66 |
1.27 |
0.191 |
1.88 |
80 |
0.79 |
1 1/2 |
1.9 |
1.5 |
0.2 |
2.25 |
80 |
1.2 |
2 |
2.37 |
1.93 |
0.218 |
3 |
80 |
2.1 |
2 1/2 |
2.88 |
2.32 |
0.276 |
3.75 |
80 |
3.8 |
3 |
3.5 |
2.9 |
0.3 |
4.5 |
80 |
6.3 |
3 1/2 |
4 |
3.36 |
0.318 |
5.25 |
80 |
8.6 |
4 |
4.5 |
3.82 |
0.337 |
6 |
80 |
12.5 |
5 |
5.56 |
4.81 |
0.375 |
7.5 |
80 |
21.2 |
6 |
6.63 |
5.76 |
0.432 |
9 |
80 |
34.4 |
8 |
8.63 |
7.63 |
0.5 |
12 |
80 |
71.3 |
10 |
10.75 |
9.75 |
0.5 |
15 |
60 |
111 |
12 |
12.75 |
11.75 |
0.5 |
18 |
* |
158 |
14 |
14 |
13 |
0.5 |
21 |
* |
201 |
16 |
16 |
15 |
0.5 |
24 |
40 |
270 |
18 |
18 |
17 |
0.5 |
27 |
* |
348 |
20 |
20 |
19 |
0.5 |
30 |
30 |
422 |
24 |
24 |
23 |
0.5 |
36 |
* |
604 |
30 |
30 |
29 |
0.5 |
45 |
20 |
997 |
36 |
36 |
35 |
0.5 |
54 |
20 |
1,380 |
42 |
42 |
41 |
0.5 |
63 |
* |
1,880 |
48 |
48 |
47 |
0.5 |
72 |
* |
2,502 |
|
|
Product range :
Size : 1/8"NB TO 48"NB IN
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated /Forged
Form : Eccentric Reducer, Concentric Reducer
Materials
Stainless Steel Reducer - SS Reducer
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Reducer - CS Reducer
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Reducer - LTCS Reducer
ASTM A420 WPL3 / A420WPL6
Alloy Steel Reducer - AS Reducer
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel Reducer
ASTM A 815 UNS NO S 31803 , S 32205.
Nickel Alloy Reducer
Standard
-
ASTM / ASME SB 336.
-
UNS 10276 (HASTELLOY C 276 Reducer)
-
UNS 2200 (NICKEL 200 Reducer),
-
UNS 2201 (NICKEL 201 Reducer),
-
UNS 4400 (MONEL 400 Reducer),
-
UNS 8020 (ALLOY 20 Reducer),
-
UNS 8825 (INCONEL 825 Reducer),
-
UNS 6600 (INCONEL 600 Reducer),
-
UNS 6601 (INCONEL 601 Reducer),
-
UNS 6625 (INCONEL 625 Reducer),
Value Added Services
-
Hot Dip Galvanizing
-
Epoxy Coating
Similar Products
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
Company
Hebei Hongcheng Pipe Fittings Co., Ltd.
Location
Wuliyao Industrial Zone, Yanshan County, Cangzhou City, Hebei Province, China
Contact Person
laura
