304l 316l Stainless Steel Pipe Tee Butt Weld Sch10s Sch20s Sch30s
Price:
consult
MOQ:
1PC
Delivery Time:
7-15 work days
Brand:
hongcheng

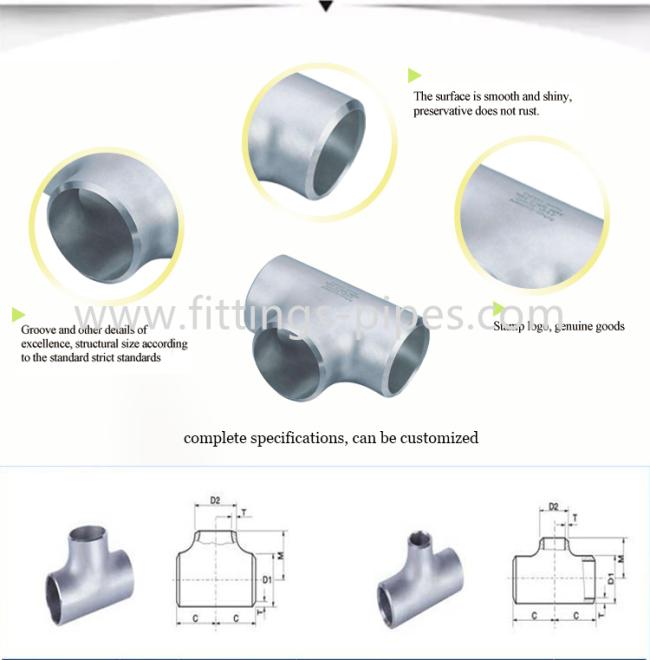

Product Description
Steel Pipe Tee Fittings Sch10s Sch20s Sch30s Sch40s Sch80 sstainless Steel 304l 316l Pipe Fittings Tee
Material |
Stainless Steel: SS304, SS316, SS304L, SS316L, SS321, SS310 |
Type |
Elbow, Tee, Reducer, Cap, Stud-Ends, Cross |
Schedule |
SCH5S, SCH10S, SCH20S, SCH40S, SCH80S, etc |
Standard |
Design: ASME B16.9, MSS-SP-43 |
Size |
1/2" to 48" |
Connection |
Butt Weld End as per ASME B16.9 |
Application |
For Water, Oil and Gas Industrial |
Certificate |
CE / ISO / SGS |

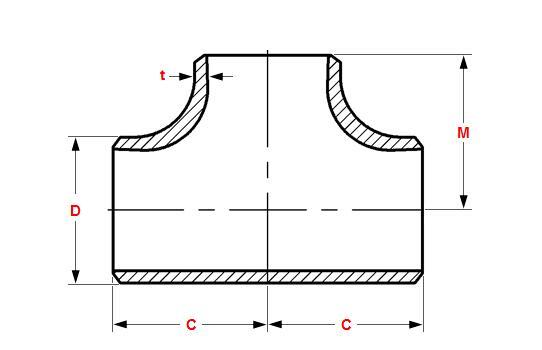

Dimension ofPipe Fittings Tee
NPS |
O.D. |
Center to End |
Center to End |
D |
C |
M |
|
1/2 |
21.3 |
25 |
25 |
3/4 |
26.7 |
29 |
29 |
1 |
33.4 |
38 |
38 |
1¼ |
42.2 |
48 |
48 |
1½ |
48.3 |
57 |
57 |
2 |
60.3 |
64 |
64 |
2½ |
73 |
76 |
76 |
3 |
88.9 |
86 |
86 |
3½ |
101.6 |
95 |
95 |
4 |
114.3 |
105 |
105 |
5 |
141.3 |
124 |
124 |
6 |
168.3 |
143 |
143 |
8 |
219.1 |
178 |
178 |
10 |
273 |
216 |
216 |
12 |
323.8 |
254 |
254 |
14 |
355.6 |
279 |
279 |
16 |
406.4 |
305 |
305 |
18 |
457 |
343 |
343 |
20 |
508 |
381 |
381 |
22 |
559 |
419 |
419 |
24 |
610 |
432 |
432 |
26 |
660 |
495 |
495 |
28 |
711 |
521 |
521 |
30 |
762 |
559 |
559 |
32 |
813 |
597 |
597 |
34 |
864 |
635 |
635 |
36 |
914 |
673 |
673 |
38 |
965 |
711 |
711 |
40 |
1016 |
749 |
749 |
42 |
1067 |
762 |
711 |
44 |
1118 |
813 |
762 |
46 |
1168 |
851 |
800 |
48 |
1219 |
889 |
838 |

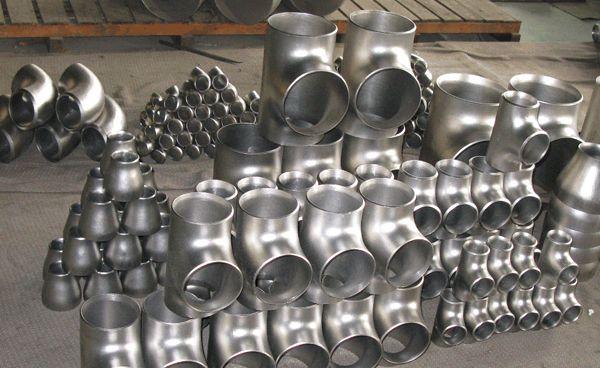

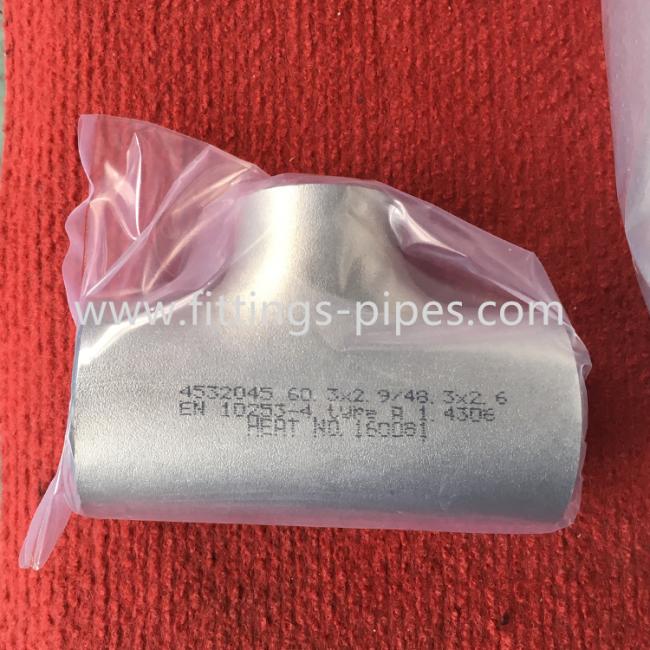

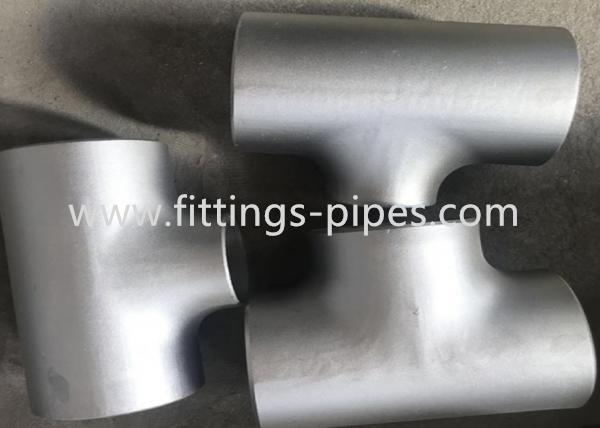

Products Show
![]()
The reason why you Choose us
· ISO System
· TUV and BV Audited company .
· Industry experience over 50 years.
· Management Systems-Internal Software
· Finished Product Inventory-More Than 50000 Tons.
· Raw Material inventory -Over 80000 Mertic Tons.
· Shipment of goods -More than 50 countries worldwide.
· We have the most convenient transport and prompt delivery.
· We offer competitive price with best service .
· We have high technical production line with top quality products.
· We have win high reputation based on best quality products.
Choose Hongcheng ,Choose Top Guarantee
