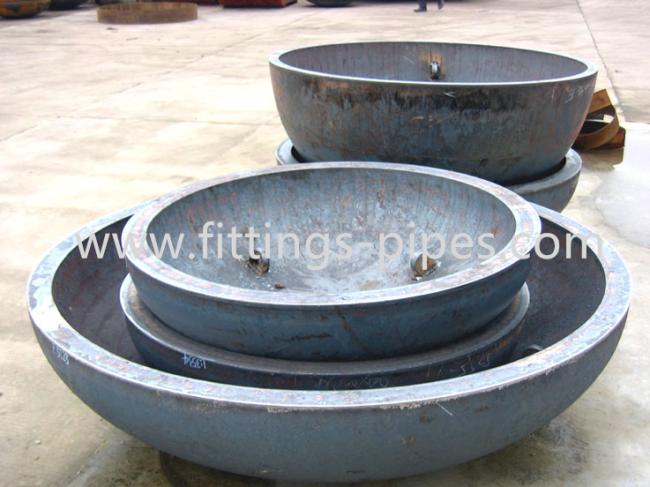

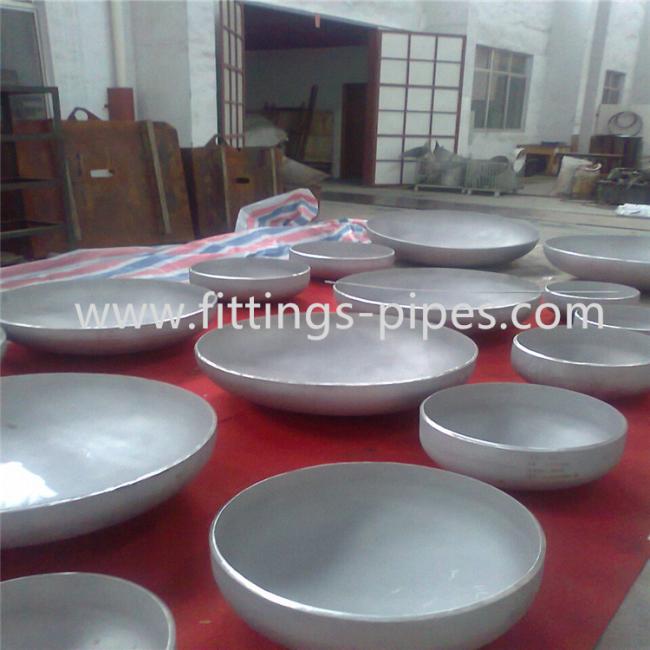

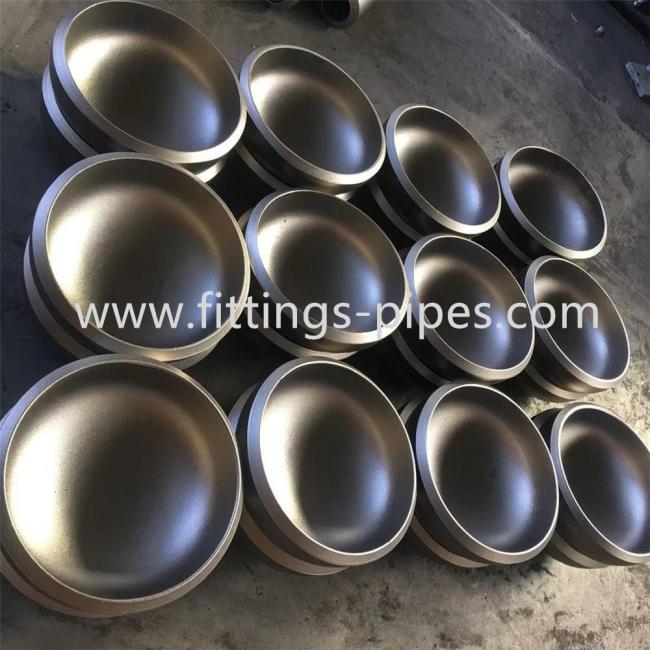

Sch80s Sch160 Butt Weld Pipe Cap , 18 Inch End Cap Fittings
Steel Pipe End Cap A234 Wp5 Wp11 Wp22 Wp92 Wp9 Wp91 Butt Weld Fittings Alloy Steel Pipe End Caps 18" Sch80s Sch160
| Name | stainless steel pipe fitting plastic caps | |
| Products | Elbow,bend equal /reduce tee,concentric/eccentric reducer , cap,flange | |
| Size |
Seamless(SMLS) : 1/2"-24" ,DN15-DN600 Butt Welded (seam) :24”-72",DN600-DN1800 |
|
| Type |
LR 30,45,60,90,180 degree SR 30,45,60,90,180 degree 1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D. |
|
| Thickness | SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS | |
| Standard | ASME,ANSI B16.9; | |
| DIN2605,2615,2616,2617, | ||
| JIS B2311 ,2312,2313; | ||
| EN 10253-1 ,EN 10253-2 | ||
| Material | ASTM | Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. |
| Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,00Cr17Ni14Mo2, ect.) | ||
|
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5, A420WPL6,A420WPL3 |
||
| DIN | Carbon steel:St37.0,St35.8,St45.8 | |
| Stainless steel:1.4301,1.4306,1.4401,1.4571 | ||
| Alloy steel:1.7335,1.7380,1.0488(1.0566) | ||
| JIS | Carbon steel:PG370,PT410 | |
| Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321 | ||
| Alloy steel:PA22,PA23,PA24,PA25,PL380 | ||
| GB |
10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo |
|
| Surface treatment | Transparent oil, rust-proof black oil or hot galvanized | |
| Packing | In wooded cases or pallets, or as for clients' requirements | |
| Certification | API and ISO 9001:2000 | |
| Payment Term | T/T ,West Union, | |
| Trade Term | FOB,CIF,CFR(30% down payment in advance, balance should before shipment) | |
| Code FOSTD - FOXS | Nominal Diameter | Wall Th. S mm | Height H mm | Theoretical Weight kg | |||
| Poll. | D mm | STD | XS | STD | XS | ||
| 5 | 1/2 | 21.34 | 2.77 | 3.73 | 25.4 | 0.03 | - |
| 7 | 3/4 | 26.67 | 2.87 | 3.91 | 25.4 | 0.06 | 0.08 |
| 10 | 1 | 33.40 | 3.38 | 4.55 | 38.1 | 0.10 | 0.14 |
| 12 | 1'' 1/4 | 42.16 | 3.56 | 4.85 | 38.1 | 0.14 | 0.18 |
| 15 | 1'' 1/2 | 48.26 | 3.68 | 5.08 | 38.1 | 0.16 | 0.23 |
| 20 | 2 | 60.32 | 3.91 | 5.54 | 38.1 | 0.27 | 0.32 |
| 25 | 2'' 1/2 | 73.02 | 5.16 | 7.01 | 38.1 | 0.41 | 0.45 |
| 30 | 3 | 88.90 | 5.49 | 7.62 | 50.8 | 0.65 | 0.82 |
| 40 | 4 | 114.30 | 6.02 | 8.56 | 63.5 | 1.15 | 1.54 |
| 50 | 5 | 141.30 | 6.55 | 9.52 | 76.2 | 1.90 | 2.59 |
| 60 | 6 | 168.27 | 7.11 | 10.97 | 88.9 | 2.92 | 4.10 |
| 80 | 8 | 219.07 | 8.18 | 12.70 | 101.6 | 5.07 | 7.3 |
| 100 | 10 | 273 | 9.27 | 12.70 | 127 | 9.1 | 12.0 |
| 120 | 12 | 323.9 | 9.52 | 12.70 | 152 | 13.6 | 17.0 |
| 140 | 14 | 355.6 | 9.52 | 12.70 | 165 | 14.42 | 19.8 |
| 160 | 16 | 406.4 | 9.52 | 12.70 | 178 | 18.86 | 25.89 |
| 180 | 18 | 457.2 | 9.52 | 12.70 | 203 | 27.65 | 36.52 |
| 200 | 20 | 508 | 9.52 | 12.70 | 229 | 35.60 | 46.98 |
| 240 | 24 | 609.6 | 9.52 | 12.70 | 267 | 46 | 64.60 |
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory, has more than 20 years experience in pipe fittings production.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in cangzhou City, hebei Province,China.

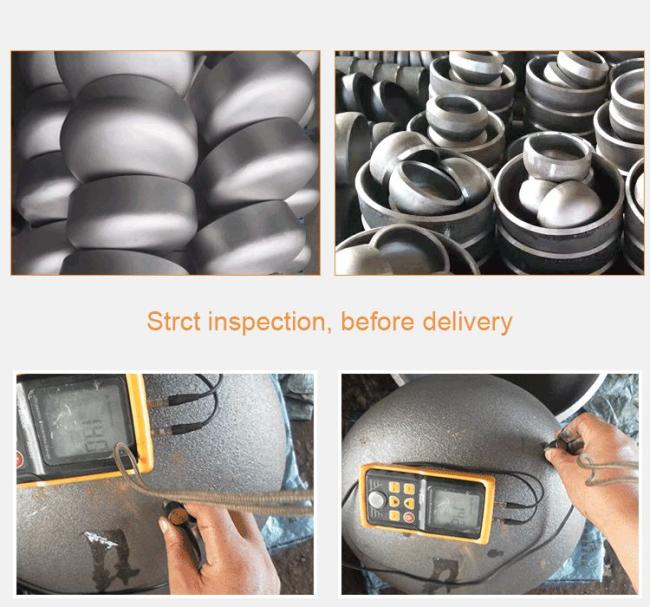

3.Q:How does your factory do regarding quality control?
A: We are ISO9001& PED certified by TUV. We serious control the quality from raw material to finished pipe fittings. So that we can 100% sure our goods is qualified.
4. Q: Price high ?
A: Our price is workable. We had tried use auto equipment to save Workers cost, and control other costs. like human sources, logistics etc.
5.Q: After sales service.
A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.
