24 Inch Alloy Steel Fittings Flanges API CE ISO Certification
Price:
Negotiable
MOQ:
1 piece
Delivery Time:
7-15 work days
Brand:
hongcheng
Product Description
For Rolled Alloy Steel Pipe Flanges, Forged Fittings, For High-Temperature Service Alloy Steel Fittings
1. ASME/ANSI B16.5 provides
.weld neck
.slip-on
.socket weld
.threaded
.lap joint
3blind
2. Flange dimensions for pipes ranging 1/2" to 24" - in classes ranging 150 to 2500.
.Steel Pipe Dimensons - Schedule 40
.Steel Pipe Dimensions - Schedule 80
Nominal Pipe Size
|
Class 300 |
||||
Diameter of
|
No.
|
Diameter of
|
Diameter of
|
Bolt
|
|
1/4 |
3-3/8 |
4 |
1/2 |
0.62 |
2-1/4 |
1/2 |
3-3/4 |
4 |
1/2 |
0.62 |
2-5/8 |
3/4 |
4-5/8 |
4 |
5/8 |
0.75 |
3-1/4 |
1 |
4-7/8 |
4 |
5/8 |
0.75 |
3-1/2 |
1-1/4 |
5-1/4 |
4 |
5/8 |
0.75 |
3-7/8 |
1-1/2 |
6-1/8 |
4 |
3/4 |
0.88 |
4-1/2 |
2 |
6-1/2 |
8 |
5/8 |
0.75 |
5 |
2-1/2 |
7-1/2 |
8 |
3/4 |
0.88 |
5-7/8 |
3 |
8-1/4 |
8 |
3/4 |
0.88 |
6-5/8 |
3-1/2 |
9 |
8 |
3/4 |
0.88 |
7-1/4 |
4 |
10 |
8 |
3/4 |
0.88 |
7-7/8 |
5 |
11 |
8 |
3/4 |
0.88 |
9-1/4 |
6 |
12-1/2 |
12 |
3/4 |
0.88 |
10-5/8 |
8 |
15 |
12 |
7/8 |
1 |
13 |
10 |
17-1/2 |
16 |
1 |
1.12 |
15-1/4 |
12 |
20-1/2 |
16 |
1-1/8 |
1.25 |
17-3/4 |
14 |
23 |
20 |
1-1/8 |
1.25 |
20-1/4 |
16 |
25-1/2 |
20 |
1-1/4 |
1.38 |
22-1/2 |
18 |
28 |
24 |
1-1/4 |
1.38 |
24-3/4 |
20 |
30-1/2 |
24 |
1-1/4 |
1.38 |
27 |
24 |
36 |
24 |
1-1/2 |
1.62 |
32 |
3. Other Types of Incoloy 800HT Flanges
Incoloy 800HT Slip On Flanges |
Incoloy 800 Raised Face Slip On Flanges
|

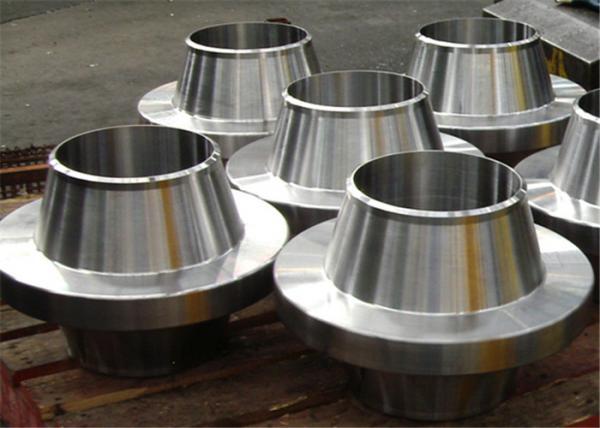

Incoloy 800HT Weld Neck Flanges |
Incoloy 800 Raised Face Weld Neck Flanges
|
Incoloy 800HT Blind Flanges |
Incoloy 800 Raised Face Blind Flanges
|
Incoloy 800HT Orifice Flanges |
Alloy 800 Orifice Flanges
|
Incoloy 800HT Socket weld Flanges |
Alloy 800 Socket weld Flanges
|
Incoloy 800HT Threaded Flanges |
Incoloy 800 Threaded Flanges
|
4. Incoloy Alloy 800HT Pipe Flanges Chemical Composition
Grade |
C |
Mn |
Si |
S |
Cu |
Fe |
Ni |
Cr |
Al |
Ti |
800HT |
0.06 – 0.10 |
1.50 max |
1.00 max |
0.015 max |
0.75 max |
39.50 min |
30.00 – 35.00 |
19.00 – 23.00 |
0.15 – 0.60ᴬ |
0.15 – 0.60ᴬ |
Incoloy 800HT Plate Flanges Mechanical Properties
Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
800HT |
7.94 g/cm3 |
1385 °C (2525 °F) |
Psi – 75,000 , MPa – 520 |
Psi – 30,000 , MPa – 205 |
30 % |
Equivalent Grades 800HT Incoloy Industrial Pipe Flanges
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
BS |
GOST |
AFNOR |
EN |
OR |
Incoloy 800HT |
1.4859 / 1.4876 |
N08811 |
NCF 800HT |
NA 15(HT) |
ЭИ670 |
– |
X8NiCrAlTi32-21 |
XH32T |
5. Incoloy 800HT Flanges Price List
800 Incoloy Flanges
US $1.8-159 / Piece (FOB Price)
Alloy 800H Pipe Flanges
US $1500-1800 / Ton (FOB Price)
Incoloy 800HT Weld Neck Flanges
US $100-2500 / Ton (FOB Price)
ASTM B564 Incoloy Alloy 800 plate flanges
US $1-500 / Ton (FOB Price)
800H Alloy Pipe Flanges
US $999-1499 / Ton (FOB Price)
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory, has more than 20 years experience in pipe fittings production.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in cangzhou City, hebei Province,China.
3.Q:How does your factory do regarding quality control?
A: We are ISO9001& PED certified by TUV. We serious control the quality from raw material to finished pipe fittings. So that we can 100% sure our goods is qualified.
4. Q: Price high ?
A: Our price is workable. We had tried use auto equipment to save Workers cost, and control other costs. like human sources, logistics etc.
5.Q: After sales service.
A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.
