Pn64 10 Inch High Pressure Pipe Flanges Nickel Alloy Material B564 N08820
Price:
10-100 pieces US $4.48/ Piece;>100 pieces US $3.62/ Piece
MOQ:
1pcs
Delivery Time:
7-15 work days
Brand:
HongCheng
Product Description

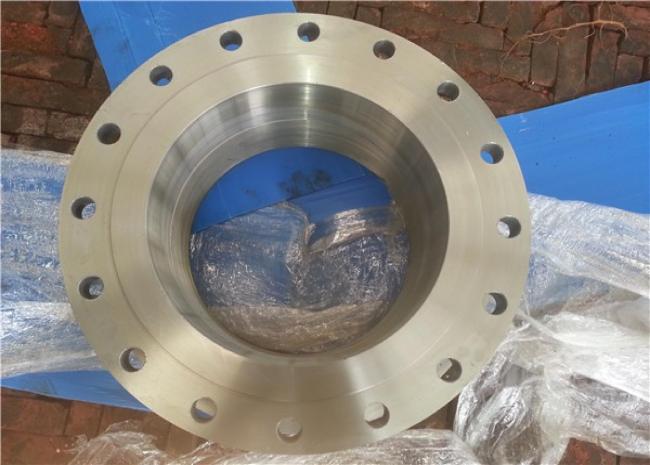

High Pressure Socket Welding Steel Pipe Flange Nickel Alloy B564 N08820 10" Pn64 High Pressure Pipe Flanges
Specifications |
ASTM B564 / ASME SB564 |
Size |
1/2″NB TO 60″NB |
Standards |
ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
Class / Pressure |
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
Standard |
ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
Other Hastelloy C276 Flanges we have
Standard |
Type |
Class |
Size |
ASME B16.5 |
WN/LWN/SO/Blind/Lap Joint |
150#-2500# |
1/2"-24"(Except Blind Flange 2500lb 1/2"-12") |
SW flange |
150#-1500# |
1/2"-3"(Except 1500# 1/2"-2 1/2") |
|
Threaded |
150#-900# |
1/2"-24" |
|
1500# 2500# |
1/2"-2 1/2" |
||
ASME B16.47 Series A |
WN/blind flange |
150# -900# |
22"-48"(Except 900# Size:26"-48") |
ASME B16.47 Series B |
WN/blind flange |
75#-300# |
26"-48" |
400# 600# 900# |
26"-36" |
||
DIN2527 |
Blind flange |
PN6-PN100 |
DN10-DN1000 |
DIN2543 |
SO flange |
PN16 |
DN10-DN1000 |
DIN2544 |
SO flange |
PN25 |
DN10-DN1000 |
DIN2545 |
SO flange |
PN40 |
DN10-DN500 |
DIN2565 |
Threaded flange with Neck |
PN6 |
DN6-DN200 |
DIN2566 |
Threaded flange with Neck |
PN16 |
DN6-DN150 |
DIN2567 |
Threaded flange with Neck |
PN25 PN40 |
DN6-DN150 |
DIN2568 |
Threaded flange with Neck |
PN64 |
DN10-DN150 |
DIN2569 |
Threaded flange with Neck |
PN100 |
DN10-DN150 |
EN1092-1:2002 |
Plate flange for welding/loose plate flange with weld-on plate collar or for lapped pipeend/Blind Flange/WN flange |
PN2.5-PN100 |
DN10-DN4000 |
JIS B2220 |
Welding flange,lap joint flange,threaded flange |
PN6-PN100 |
DN10-DN1500 |
BS4504 BS10 TableD/E |
Plate Flange for welding/WN flange/blank Flange |
PN6-PN100 |
DN10-DN1500 |
Other Products |
Anchor/swivel/girth/lap joint/reducing/orifice |
||
Spectacle blind/paddle blind/spacer ring/orifice plate/bleed ring |
|||
Special Products: rings/forgings/disc/shaft sleeves |
|||
Sealing Surface |
RF FF RTJ TF GF LF LM |
||
Flange Face Finish |
Stock finish/spiral serrated/concentric serrated/smooth finish(Ra 3.2 and 6.3 micrometers) |
||
125-250 AARH(it is called smooth finish) |
|||
250-500 AARH(it is called stock finish) |
|||
Coating |
Vanish, yellow paint, anti-rust oil, galvanizing etc |
||
Material Grade |
Nickel Alloy Steel |
ASTM/ASME B/SB564 UNS N02200(NICKEL 200),UNS N04400(MONEL 400), |
|
UNS N08825( INCOLOY 825),UNS N06600(INCONEL 600), |
|||
UNS N06601(INCONEL 601), UNS N06625(INCONEL 625),UNS N10276(HASTELLOY C276), |
|||
ASTM/ASME B/SB160 UNS N02201(NICKEL 201),ASTM B/SB472 UNS N08020(Alloy 20) |
|||
Copper Alloy |
ASTM/ASME B/SB151 UNS C70600(CuNi 90/10),C71500(CuNi 70/30) |
||
Stainless Steel |
ASTM/ASME A/SA182 F304,304L,304H,309H,310H,316,316H,316L,316LN, |
||
317,317L,321,321H,347,347H |
|||
Duplex and Super Duplex Steel |
ASTM/ASME A/SA182F44,F45,F51,F53,F55,F60,F61 |
||
Carbon steel |
ASTM /ASME A/SA105(N) |
||
Low Temp Carbon Steel |
ASTM/ASME A/SA350 LF2 |
||
High Yield Carbon Steel |
ASTM/ASME A/SA694 F52,F56 F60, F65, F70 |
||
Alloy Steel |
ASTM/ASME A/SA182 GR F5,F9, F11,F12,F22,F91 |
||
Titanium |
ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7 |
||
About Hastelloy C276 Flanges
Hastelloy Alloy C276 Pipe Flanges Chemical Composition
Grade |
C |
Mn |
Si |
S |
Co |
Ni |
Cr |
Fe |
Mo |
P |
C276 |
0.010max |
1.00max |
0.08max |
0.03max |
2.50max |
50.99min |
14.50–16.50 |
4.00–7.00 |
15.00–17.00 |
0.04 max |
Hastelloy C276 Plate Flanges Mechanical Properties
Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
Hastelloy C276 |
8.89 g/cm3 |
1370 °C (2500 °F) |
Psi – 1,15,000 , MPa – 790 |
Psi – 52,000 , MPa – 355 |
40 % |
Equivalent Grades for C276 Hastelloy Industrial Pipe Flanges
STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
GOST |
EN |
OR |
Hastelloy C276 |
2.4819 |
N10276 |
NW 0276 |
ХН65МВУ |
NiMo16Cr15W |
ЭП760 |
Hastelloy C276 Flanges Test Certificates
We provide Manufacturer TC (Test Certificate) in accordance to EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report. We also provide Standard certificates like EN 10204 3.1 and additional requirement like. NACE MR 01075. FERRIT CONTENT as per norms if requested by clients.
• EN 10204/3.1B,
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc
Material Testing:
We at Ganpat Industrial Corporation ensure that all our materials go through strict quality tests before dispatching them to our clients.
• Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and MacroTest
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test
ASME SB564 ASME B16.5 150#-2500# RAISED FACE HASTELLOY C276 FORGED SO FLANGE FAQ:
Q:How does your factory do regarding quality control?
A:Quality is priority. we always attach great importance to quality controlling from the beginning to the end.Mill Test Certificate is supplied with shipment. If needed, a Third Party Inspection is acceptable.
Q:May I have some samples before bulk order?
A:Yes, of course. samples are free but you have to pay the courier.
Q:Can we visit your Company?
A:Surely. Welcome to China and we will be honored to have a customer and friend.
Q:What is the payment terms?
A:T/T, L/C ,Western Union,etc.
Q:What's your delivery time?
A:For stocks, we can send the goods to loading port within 7 days after receiving your deposit.
For production period, it usually needs about 10days- 60days after receiving the deposit.
