High Pressure Astm A182 F11 Flange Alloy Steel Material For Petroleum Chemical
Price:
10-100 pieces US $4.48/ Piece;>100 pieces US $3.62/ Piece
MOQ:
1pcs
Delivery Time:
7-15 work days
Brand:
HongCheng
Product Description

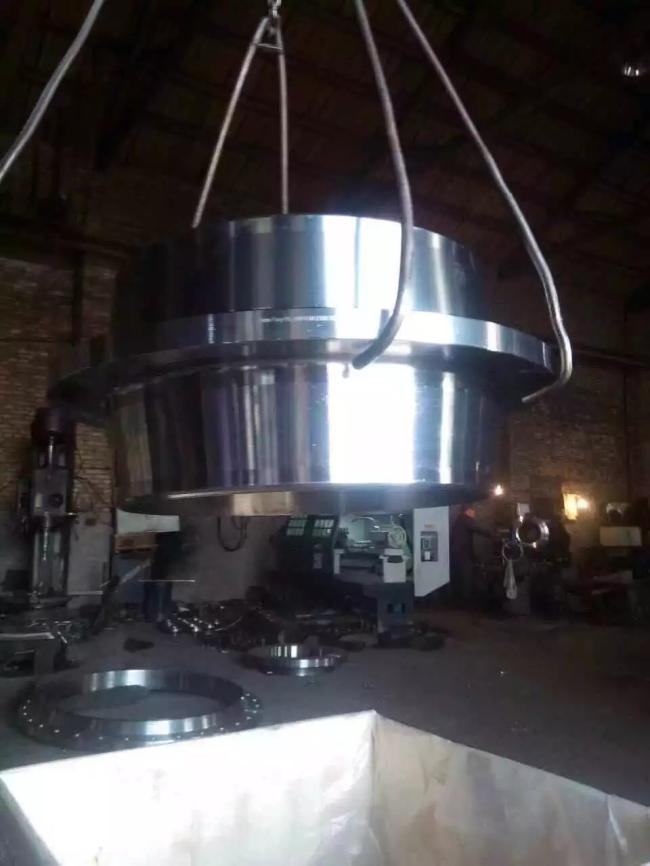

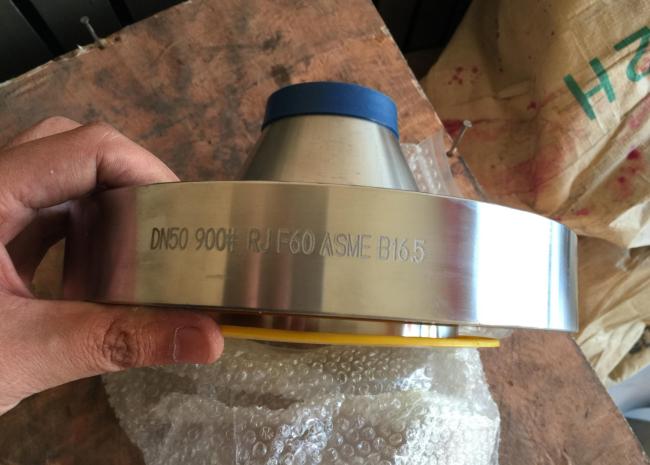

High Pressure Pipe Flanges Wnf Welding Neck Flange Alloy Steel Astm/Asme S/ A182 F11, F12, F22, F5, F9, F91
Our products include Pipes, Flanges, Fittings like Bends, Elbows, Tees, Reducers, Caps, forged fittings, Bolt and nuts, Gaskets, Profiles etc conforming to all Nationally & Internationally accepted standards. This product supports a variety of applications, including pipework of petroleum, natural gas, chemical, power and metallurgy, shipbuilding industry, airport, bridge etc.
| Standard No. | Diameter Range | Pressure Rating | Conventional Materials |
| GB/T 9112-9123.4 | DN10-DN2000 | PN0.25 1.0 1.6 2.5 4.0 6.3 10.0 16.0Map | 20# Q235 A105 |
| JBT 74-86.2 | DN10-DN1600 | PN0.25 0.6 1.0 1.6 2.5 4.0 6.3 10.0 16.0 20.0Mpa | |
| HG 20592-20626 | DN10-DN2000 | PN0.25 0.6 1.0 1.6 2.0 2.5 4.0 5.0 6.3 10.0 11.0 15.0 16.0 25.0 26.0 42.0Mpa | |
| SH 3406 | DN10-DN1500 | PN1.0 2.0 5.0 6.8 10.0 15.0 25.0 42.0Mpa | |
| GBT 17241.1-17241.7 | DN10-DN4000 | PN0.25 0.6 1.0 1.6 2.0 2.5 4.0 5.0Mpa | |
| GB/T 15530.1-15530.8 | DN10-DN1800 | PN0.6 1.0 1.6 2.0 2.5 4.0 5.0Mpa | |
| JB/T 4701 | DN300-DN2000 | PN0.25 0.6 1.0 1.6Mpa | |
| JB/T 4702 | DN300-DN3000 | PN0.25 0.6 1.0 1.6 2.5 4.0Mpa | |
| JB/T 4703 | DN300-DN2000 | PN0.6 1.0 1.6 2.5 4.0 6.4Mpa | |
| GB 2501-2508 | DN10-DN2000 | PN0.25 0.6 1.0 1.6 2.5 4.0 6.4Mpa |
| Standard No. | Diameter Range | Pressure Rating | Conventional Materials |
| JIS B2220 PL | DN10-DN400 | 5K | JIS G3214 |
| JIS B2220 SO | DN450-DN1000 | 5K | |
| JIS B2220 PL | DN10-DN225 | 10K | |
| JID B2220 SO | DN250-DN1000 | 10K | |
| JIS B2220 SO | DN10-DN1200 | 16K 20K 30K | |
| JIS B2220 WN | DN15-DN400 | 30K | |
| JPI 7S-15 | 1/2-24" | CLASS 150 300 600 900 1500 2500 |
| Standard No. | Diameter Range | Pressure Rating | Conventional Materials |
| ASME B16.5 | 1/2-24" | CLASS 150 300 600 900 1500 2500 | ASTM A182 |
| ANSI B 16.47 | 26-60" | CLASS 150 300 600 900 | |
| AWWA C207 | 4-144" | CLASS 56 175-150 275 300 | |
| ISO7005-1 | 1/2-24" | PN 2.0 5.0 11.0 15.0 26.0 42.0 | |
| BS4504-3.1 | 1/2-24" | CLASS 150 300 600 900 1500 2500 | |
| NF E29-203 | 1/2-24" | PN 2.0 5.0 11.0 15.0 26.0 42.0 | |
| AP1605 | 26-60" | CLASS 150 300 600 | |
| ASME B 16.36 | 1/2-24" | CLASS 300 400 600 900 1500 2500 |
| Standard No. | Diameter Range | Pressure Rating | Conventional Materials | |
EN1092-1 | DIN 2630 WN | DN1200-DN4000 | 1 BAR | DIN17440 |
| DIN 2631 WN | DN10-DN3600 | 6 BAR | ||
| DIN 2632 WN | DN200-DN3000 | 10 BAR | ||
| DIN 2633 WN | DN10-DN2000 | 16 BAR | ||
| DIN 2634 WN | DN200-DN1000 | 25 BAR | ||
| DIN 2635 WN | DN10-DN500 | 40 BAR | ||
| DIN 2636 WN | DN10-DN400 | 61 BAR | ||
| DIN 2637 WN | DN10-DN350 | 100 BAR | ||
| DIN 2638 WN | DN10-DN300 | 160 BAR | ||
| EN1092-1 TYPE01 | DIN 2573 PL | DN10-DN500 | 6 BAR | |
| DIN 2576 PL | DN10-DN500 | 10 BAR | ||
| EN1092-1 TYPE05 | DIN 2527 PL | DN10-DN500 | 6 10 16 25 40 BAR | |
| EN1092-1 TYPE13 | DIN 2566 TH | DN10-DN150 | 10 BAR 1.6 BAR | |
| EN1092-1 TYPE02 | DIN 2642(Loose) | DN10-DN500 | 10 BAR | |
