Seamless Stainless Steel Pipe Fittings Reducer 1 / 2 Inch ANSI B16.9

Name: Seamless Stainless Steel Pipe Fittings Reducer 1 / 2 Inch ANSI B16.9
Brand: Hebei Hongcheng Pipe Fittings Co., Ltd.

Price Negotiable

Price: 10-50 pieces US $18.6 / Piece;>50 pieces US $ 15.4/ Piece

MOQ: 10PCS

Delivery Time: 7-15 work days

Brand: HongCheng

Product Description

Stainless Steel Pipe Fittings ANSI B16.9 Seamless Stainless Steel Reducer 1/2" To 44"

Reducers connect pipes of different sizes. They are available in eccentric or eccentric. One connecting end of the reducer is larger than the other. Pipe reducers often have male threads on one end and female threads on the other. Reducers come in a wide variety of materials, sizes and types, designed to suit specific applications.

Pipelines are not of uniform size and there is requirement of reducing or expanding the lines depending on process requirement or availability of material. Here comes the importance of a special pipe fitting called Reducers.

Reducers are most extensively used in piping industry to reduce or expand the straight part of run pipe.

Basically, reducers are available in two styles:

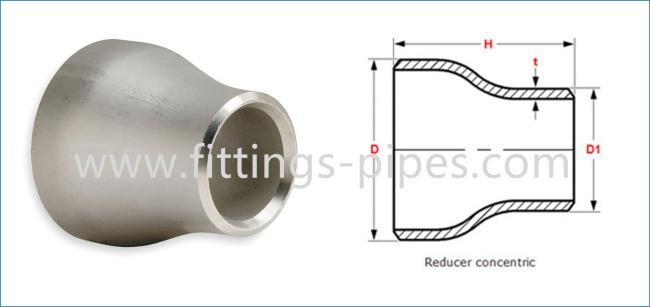

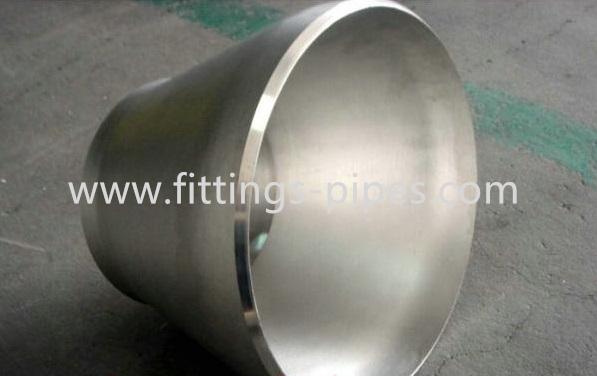

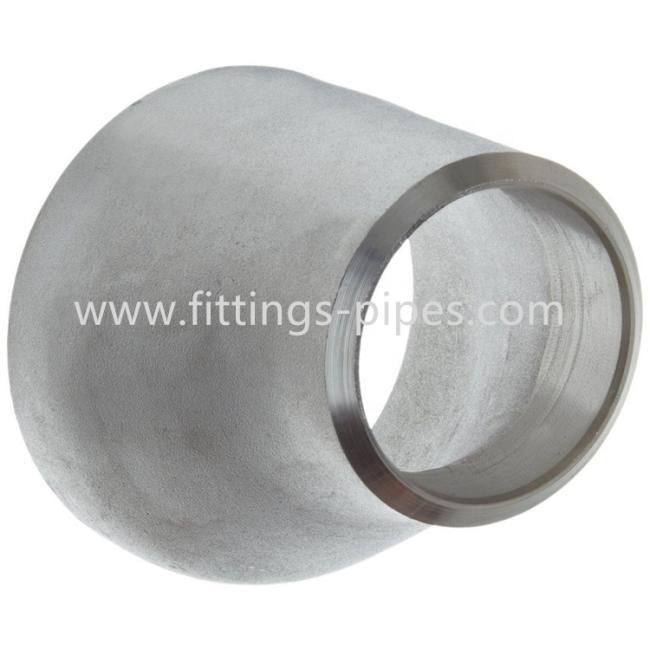

Concentric Reducers

In this type of reducers area reduction is concentric and center line of the pipe on bigger end and smaller end remains same. The reduction of the pipe size is achieved by decreasing the diameter of the fitting at a constant rate over a specified length, maintaining symmetry around the fitting. These styles are normally used for vertical lines.

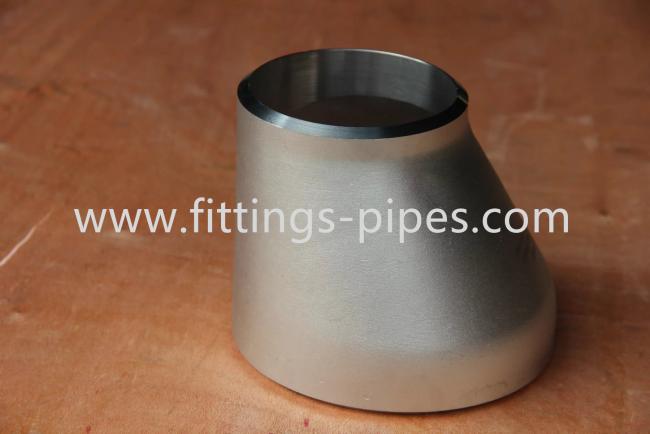

Eccentric Reducers

In this style of reducer there is an offset in between the center lines of bigger end and center line of smaller end. This offset or eccentricity will maintain a flat side either on top or on bottom side. The reduction of the pipe size is achieved by decreasing the diameter of the fitting at a constant rate over a specified length, maintaining one side of the fitting horizontally.

Our specialization lies in Stocking and Manufacturing a wide gamut of butt weld pipe fittings that are constructed to accuracy at our vendors end. These fittings are dimensionally precise and possess the feature of high functionality at the application area. These fittings are available with us in Stainless Steel , Nickel Alloy, Carbon Steel, Alloy Steel, Copper Alloy and Duplex Steel Material.

We Specialized in Large size Elbow, Tee & Reducer available with NACE MR 01-75 & EN 10204 3.1 Test Certificate

Providing Large size fittings up to 60 inch with 100% radiography & fastest delivery time we share a great reputation among our clients

The Dimensions of the Reducer

Nominal Diameter		Outside Diameter		End to End
Nominal Diameter		D1*D2		End to End
DN	NPS	Series A	Series B	H
20×15	3/4×1/2	26.9×21.3	25×18	38
20×10	3/4×3/8	26.9×17.3	25×14	38
25×20	1×3/4	33.7×26.9	32×25	51
25×15	1×1/2	33.7×21.3	32×18	51
32×25	1.1/4×1	42.4×33.7	38×32	51
32×20	1.1/4×3/4	42.4×26.9	38×25	51
32×15	1.1/4×1/2	42.4×21.3	38×18	51
40×32	1.1/2×1.1/4	48.3×42.4	45×38	64
40×25	1.1/2×1	48.3×33.7	45×32	64
40×20	1.1/2×3/4	48.3×26.9	45×25	64
40×15	1.1/2×1/2	48.3×21.3	45×18	64
50×40	2×1.1/2	60.3×48.3	57×45	76
50×32	2×1.1/4	60.3×42.4	57×38	76
50×25	2×1	60.3×33.7	57×32	76
50×20	2×3/4	60.3×26.9	57×25	76
65×50	2.1/2×2	73.0×60.3	76×57	89
65×40	2.1/2×1.1/2	73.0×48.3	76×45	89
65×32	2.1/2×1.1/4	73.0×42.4	76×38	89
65×25	2.1/2×1	73.0×33.7	76×32	89
80×65	3×2.1/2	88.9×73.0	89×76	89
80×50	3×2	88.9×60.3	89×57	89
80×40	3×1.1/2	88.9×48.3	89×45	89
80×32	3×1.1/4	88.9×42.4	89×38	89
90×80	3.1/2×3	101.6×88.9	-	102
90×65	3.1/2×2.1/2	101.6×73.0	-	102
90×50	3.1/2×2	101.6×60.3	-	102
90×40	3.1/2×1.1/2	101.6×48.3	-	102
90×32	3.1/2×1.1/4	101.6×42.4	-	102
100×90	4×3.1/2	114.3×101.6	-	102
100×80	4×3	114.3×88.9	108×89	102
100×65	4×2.1/2	114.3×73.0	108×76	102
100×50	4×2	114.3×60.3	108×57	102
100×40	4×1.1/2	114.3×48.3	108×45	102
125×100	5×4	141.3×114.3	133×108	127
125×90	5×3.1/2	141.3×101.6	-	127
125×80	5×3	141.3×88.9	133×89	127
125×65	5×2.1/2	141.3×73.0	133×76	127
125×50	5×2	141.3×60.3	133×57	127
150×125	6×5	168.3×141.3	159×133	140
150×100	6×5	168.3×114.3	159×108	140
150×90	6×3.1/2	168.3×101.6	-	140
150×80	6×3	168.3×88.9	159×89	140
150×65	6×2.1/2	168.3×73.0	159×76	140
200×150	8×6	219.1×168.3	219×159	152
200×125	8×5	219.1×141.3	219×133	152
200×100	8×4	219.1×114.3	219×108	152
200×90	8×3.1/2	219.1×101.6	-	152
250×200	10×8	273.0×219.1	273×219	178
250×150	10×6	273.0×168.3	273×159	178
250×125	10×5	273.0×141.3	273×133	178
250×100	10×4	273.0×114.3	273×108	178
300×250	12×10	323.9×273.1	325×273	203
300×200	12×8	323.9×219.1	325×219	203
300×150	12×6	323.9×168.3	325×159	203
300×125	12×5	323.9×141.3	325×133	203
350×300	14×12	355.6×323.9	377×325	330
350×250	14×10	355.6×273.0	377×273	330
350×200	14×8	355.6×219.1	377×219	330
350×150	14×6	355.6×168.3	377×159	330
400×350	16×14	406.4×355.6	426×377	356
400×300	16×12	406.4×323.9	426×325	356
400×250	16×10	406.4×273.0	426×273	356
400×200	16×8	406.4×219.1	426×219	356
450×400	18×16	457×406.4	478×426	381
450×350	18×14	457×355.6	478×377	381
450×300	18×12	457×323.9	478×325	381
450×250	18×10	457×273.0	478×273	381
500×450	20×18	508×457	529×478	508
500×400	20×16	508×406.4	529×426	508
500×350	20×14	508×355.6	529×377	508
500×300	20×12	508×323.9	529×325	508
550×500	22×20	559×508	-	508
550×450	22×18	559×457	-	508
550×400	22×16	559×406.4	-	508
550×350	22×14	559×355.6	-	508
600×550	24×22	610×559	-	508
600×500	24×20	610×508	630×529	508
600×450	24×18	610×457	630×478	508
600×400	24×22	610×406.4	630×426	508
650×600	26×24	660×610	-	610
650×550	26×22	660×559	-	610
650×500	26×20	660×508	-	610
650×450	26×18	660×457	-	610
700×650	28×26	711×660	-	610
700×600	28×24	711×610	720×630	610
700×550	28×22	711×559	-	610
700×500	28×20	711×508	720×530	610
750×700	30×28	762×711	-	610
750×650	30×26	762×660	-	610
750×600	30×24	762×610	-	610
750×550	30×22	762×559	-	610
800×750	32×30	813×762	-	610
800×700	32×28	813×711	820×720	610
800×650	32×26	813×660	-	610
800×600	32×24	813×610	820×630	610
850×800	34×32	864×813	-	610
850×750	34×30	864×762	-	610
850×700	34×28	864×711	-	610
850×650	34×26	864×660	-	610
900×850	36×34	914×864	-	610
900×800	36×32	914×813	920×820	610
900×750	36×30	914×762	-	610
900×700	36×28	914×711	920×720	610
950×900	38×36	965×914	-	610
950×850	38×34	965×864	-	610
950×800	38×32	965×813	-	610
950×750	38×30	965×762	-	610
1000×950	40×38	1016×965	-	610
1000×900	40×36	1016×914	1020×920	610
1000×850	40×34	1016×864	-	610
1000×800	40×32	1016×813	1020×820	610
1050×1000	42×40	1067×1016	-	610
1050×950	42×38	1067×965	-	610
1050×900	42×36	1067×914	-	610
1050×850	42×34	1067×864	-	610
1100×1050	44×42	1118×1067	-	610
1100×1000	44×40	1118×1016	1120×1020	610
1100×950	44×38	1118×965	-	610
1100×900	44×36	1118×914	1220×920	610
1150×1100	46×44	1168×1118	-	711
1150×1050	46×42	1168×1067	-	711
1150×1000	46×40	1168×1016	-	711
1150×950	46×38	1168×965	-	711
1200×1150	48×46	1220×1168	-	711
1200×1100	48×44	1220×1118	1220×1120	711
1200×1050	48×42	1220×1067	-	711
1200×1000	48×40	1220×1016	1220×1020	711
