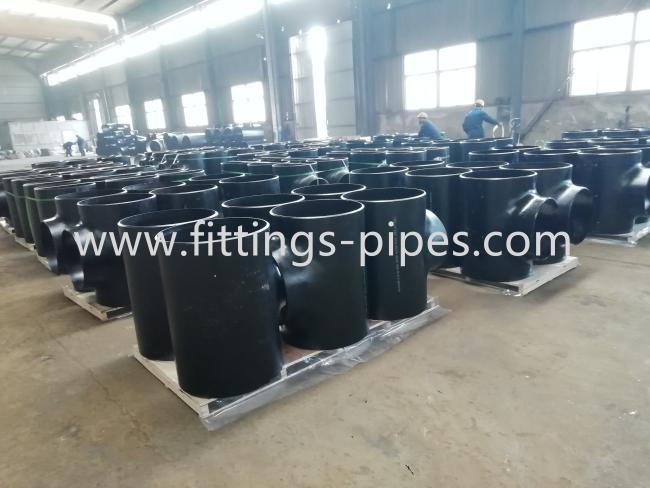

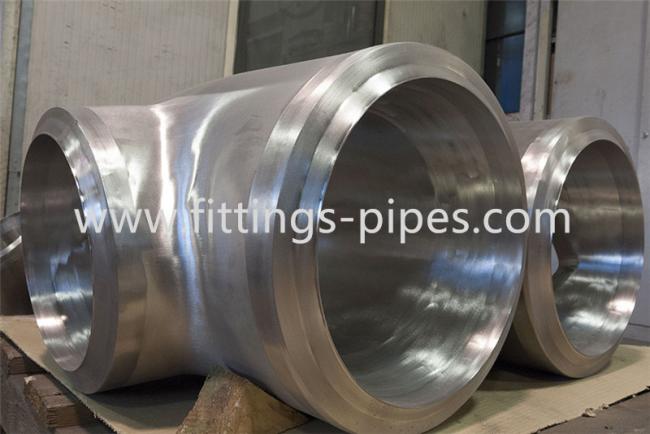

Product Description:
1. Material:Alloy Steel Tee
2. Size range: FROM 1/2" TO 72"
3. Pressure: Sch5--Sch160,XXS
4. STANDARDS ANSI, ISO, JIS, DIN, BS, GB, SH, HG, QOST, ETC.
5. CE and certification: ISO9001:2000, API, BV, SGS, LOIYD
6. Applications range: "Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, water and nuclear power etc.”
| STANDARD | ASME/ANSI B16.9, B16.11, B16.28, JIS B2311, B2312, B2312, B2316 ASTM A403 MSS SP-43, SP-83, SP-97 |
| MODEL | 1.Tee (Straight and Reducing) |
| 2.180 DEG Return | |
| 3.Elbow (45/90/180 DEG) | |
| 4.Cap | |
| 5. Reducer (Concentric and Eccentric) | |
| TYPE | Seam Or Seamless |
| ELBOW DEGREE | 45 degree, 90 degree, 180 degree |
| SURFACE | Black Paint, Anti Rust Oil, Hot-Dipped Galvanize |
| WALL THICKNESS | SCH5S, SCH10S, SCH10, SCH20, SCH30, SCH40, STD, XS, SCH60 |
| SCH80, SCH100, SCH120, SCH140, SCH160, XXS, 2MM | |
| SIZE | 1/2"-48"(Dn15-Dn1200) |
| CONNECTION | Welding |
| SHAPE | Equal, Reducing |
| CERTIFICATE | ISO9001 API TUV |
| APPLICATION | Petrochemical & Gas industry, Power industry, Valve industry, Water works, Shipbuilding industry, Construction etc |
Technical Drawing Size Specification
|
Unit : inch Nominal |
Outside Dia. (OD) |
Wall Thickness (T) |
Tees Center To Ends C.M |
|||
| Sch.5S | Sch.10S | Sch.40S | Sch.80S | |||
| 1/2 | 0.840 | 0.065 | 0.083 | 0.109 | 0.147 | 1.00 |
| 3/4 | 1.050 | 0.065 | 0.083 | 0.113 | 0.154 | 1.13 |
| 1 | 1.315 | 0.065 | 0.109 | 0.133 | 0.179 | 1.50 |
| 1-1/4 | 1.660 | 0.065 | 0.109 | 0.140 | 0.191 | 1.88 |
| 1-1/2 | 1.900 | 0.065 | 0.109 | 0.145 | 0.200 | 2.25 |
| 2 | 2.375 | 0.065 | 0.109 | 0.154 | 0.218 | 2.50 |
| 2-1/2 | 2.875 | 0.083 | 0.120 | 0.203 | 0.276 | 3.00 |
| 3 | 3.500 | 0.083 | 0.120 | 0.216 | 0.300 | 3.38 |
| 4 | 4.500 | 0.083 | 0.120 | 0.237 | 0.337 | 4.13 |
| 5 | 5.563 | 0.109 | 0.134 | 0.258 | 0.375 | 4.88 |
| 6 | 6.625 | 0.109 | 0.134 | 0.280 | 0.432 | 5.63 |
| 8 | 8.625 | 0.109 | 0.148 | 0.322 | 0.500 | 7.00 |
| 10 | 10.750 | 0.134 | 0.165 | 0.375 | 0.500 | 8.50 |
| 12 | 12.750 | 0.156 | 0.180 | 0.375 | 0.500 | 10.00 |
| 14 | 14.000 | 0.156 | 0.250 | 0.375 | 0.500 | 11.00 |
| 16 | 16.000 | 0.165 | 0.250 | 0.375 | 0.500 | 12.00 |
| 18 | 18.000 | 0.165 | 0.250 | 0.375 | 0.500 | 13.50 |
| 20 | 20.000 | 0.188 | 0.250 | 0.375 | 0.500 | 15.00 |
| 24 | 24.000 | 0.218 | 0.250 | 0.375 | 0.500 | 17.00 |
used to
Petroleum, chemical, power plant, gas, metallurgy, shipbuilding, construction, etcUsed to the pipes connecting
