304l Steel Reducing Tee Seamless Stainless Pipe Fittings Wp11 P22
304L seamless stainless steel pipe fittings tee wp11 p22
ASTM A234 Alloy Steel Fittings ASTM A234 Alloy pipe fittings
| Product Name | ASTM A234 alloy steel pipe fitting (WP51, WP5, WP9, WP11, WP91) | |
| Size | 1/2"~44" (Seamless) | |
| Thickness | STD, XS, XXS, SCH10, SCH20, SCH30, SCH40, SCH80,...etc | |
| Standard | ANSI B16.9, ASME, JIS, DIN, GOST, GB | |
| Material | ASTM | Carbon Steel: ASTM A234 WPB, A234 WPC, A420 WPL6 |
| Stainless Steel: ASTM A403 WP304, 304L, 316, 316L, 1Cr18Ni9Ti, ....etc | ||
|
Alloy Steel: ASTM A234 WP12, WP11,WP22, WP5,,WP9, WP91, ASTM A420 WPL6, WPL3 |
||
| DIN | Carbon Steel:St37.0 , St35.8, St45.8 | |
| Stainless Steel:1.4301, 1.4306, 1.4401, 1.4571 | ||
| Alloy Steel:1.7335, 1.7380, 1.0488(1.0566) | ||
| JIS | Carbon Steel: PG370, PT410 | |
| Stainless Steel: SUS304, SUS304L, SUS316, SUS316L, SUS321,..etc | ||
| Alloy Steel: PA22, PA23, P24, PA25, PL380 | ||
| GB | #10, #20, 20G, 20R, Q235, 16Mn, 16MnR, 1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo | |
| Ends | Bevel end, butt weld | |
| Applications |
Petrochemical industry Pharmaceutic industry Power plant Water treament Construction,...etc |
|
| Packing |
Seaworthy Packing Customers' request plastic bags + wooden or olywood case or pallet carton |
|
| Advantage |
- Provide Samples - Ready Stock - Fast Delivery - Available all sizes - High Quality - Competitive Price |
|
Chemical Composition:
| Chemical Composition of ASTM A234 | ||||
| Element | WP5 | WP9 | WP11 | WP91 |
| C | Max 0.15 | Max .15 | 0.05 - 0.15 | 0.08 - 0.12 |
| Mn | 0.30 - 0.60 | 0.30 - 0.60 | 0.30 - 0.60 | 0.30 - 0.60 |
| P | Max 0.040 | Max 0.030 | Max 0.030 | Max 0.020 |
| S | Max 0.030 | Max 0.030 | Max 0.030 | Max 0.010 |
| Si | Max 0.50 | 0.25 - 1.00 | 0.50 - 1.00 | 0.20 - 0.50 |
| Ni | - | - | - | Max 0.40 |
| Cr | 4.0 - 6.0 | 8.0 - 10.0 | 1.00 - 1.50 | 8.0 - 9.5 |
| Mo | 0.44 - 0.65 | 0.90 - 1.10 | 0.44 - 0.65 | 0.85 - 1.05 |
| Cu | - | - | - | - |
| Cb | - | - | - | 0.060 - 0.10 |
| V | - | - | - | 0.18 - 0.25 |
Mechanical Property:
| ASTM A234/A234M |
Tensile strength, min
|
Yield Strength, min | Elongation,%, min | |||
| Grade | Ksi | Mpa | Ksi | Mpa | Longitudinal | Transverse |
| WP5 | 60-85 | 415 - 585 | 30 | 205 | 22 | 14 |
| WP9 | 60-85 | 415 - 585 | 30 | 205 | 22 | 14 |
| WP11 | 60 - 85 | 415 - 585 | 40 | 275 | 22 | 14 |
| WP91 | 85 - 110 | 585 - 760 | 60 | 415 | 20 | - |
Hongcheng is a professional Alloy Steel pipe fittings Alloy Stee pipe manufacturer in China,
We can produce high quality steel pipe fittings,

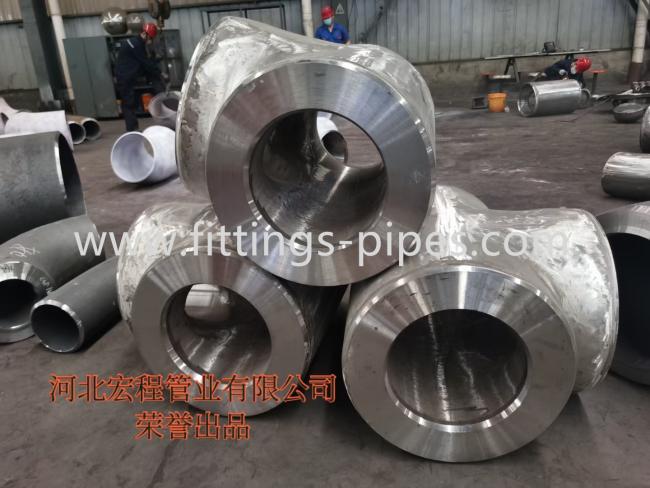

Tee (Equal Reducing)
Material:
Stainless Steel: ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/ etc.
Carbon Steel: ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70 etc.
Alloy Steel: ASTM A234 / WP5/ WP9/ WP11/ WP22/ WP91
Marking:As per request
Packing: Wooden case(Fumigation free) Or as per request
Inspection: In house and third party
Document: MTC EN10204-3.1 can be provided prior to shipment
Surface treatment: Surface galvanized, antirust coating, Epoxy FBE Coating, Electro Polishing,
For further information about our company and products, please visit our website or contact us directly. You will get our 24X7 hour reply by Email, fax or Pohone.
DIAMENSION OF ASTM B366 GRADE WPNCMC FITTINGS~
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
| NPS | O.D. at Bevel (1), (2) |
I.D. at End (1), (3), (4) |
Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ |
0.06 -0.03 |
0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 |
0.09 -0.06 |
0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 |
0.16 -0.12 |
0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 |
0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 |
0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 |
0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
FAQ:
1. Are you a factory or trading company?
We are a factory.we also have cooperated factory doing other steel business.
2. How can I get a quotation from you ?
You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager.
And you can also find our contact information on contact page.
3.Can I get samples before order ?
Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.
4. what is your delivery time ?
The time of delivery is usually around 20 days(1*20FT as usual).
We can send out in 2 days, if it has stock.
5.What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble.EXW,FOB,CFR,CIF,DDU.
6.How does your factory do regarding quality control?
Quality is priority. Our factory has gained ISO9001 authentication. We guarantee the goods out from our factory 100% qualified.
And Each Process, we have very strict operation and arrange 2 techinians to inspect. After the products are finished,
we will make the last test to pick up the unqualified products
