Astm A403 Wp304 Wp304l Stainless Steel Fittings Reducing 1/2"~24"
Astm A403 Wp304 Wp304l Reducing Stainless Steel 1/2"~24" Stainless Steel Pipe Fittings

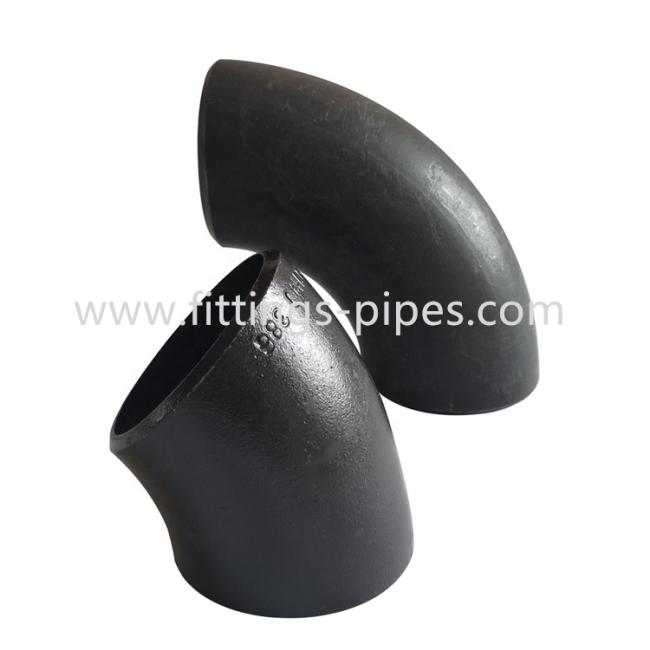

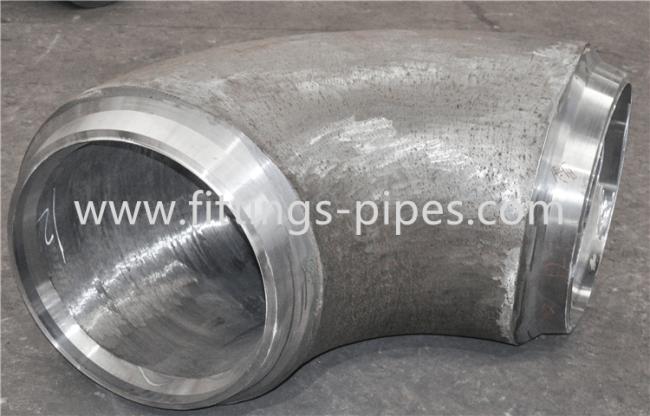

DIAMENSION OF ASTM B366 GRADE WPNCMC FITTINGS~
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
| NPS | O.D. at Bevel (1), (2) |
I.D. at End (1), (3), (4) |
Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ |
0.06 -0.03 |
0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 |
0.09 -0.06 |
0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 |
0.16 -0.12 |
0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 |
0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 |
0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 |
0.25 -0.19 |
0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 |
0.38
|
Chemical Composition:
| Chemical Composition of ASTM A234 | ||||
| Element | WP5 | WP9 | WP11 | WP91 |
| C | Max 0.15 | Max .15 | 0.05 - 0.15 | 0.08 - 0.12 |
| Mn | 0.30 - 0.60 | 0.30 - 0.60 | 0.30 - 0.60 | 0.30 - 0.60 |
| P | Max 0.040 | Max 0.030 | Max 0.030 | Max 0.020 |
| S | Max 0.030 | Max 0.030 | Max 0.030 | Max 0.010 |
| Si | Max 0.50 | 0.25 - 1.00 | 0.50 - 1.00 | 0.20 - 0.50 |
| Ni | - | - | - | Max 0.40 |
| Cr | 4.0 - 6.0 | 8.0 - 10.0 | 1.00 - 1.50 | 8.0 - 9.5 |
| Mo | 0.44 - 0.65 | 0.90 - 1.10 | 0.44 - 0.65 | 0.85 - 1.05 |
| Cu | - | - | - | - |
| Cb | - | - | - | 0.060 - 0.10 |
| V | - | - | - | 0.18 - 0.25 |
Mechanical Property:
| ASTM A234/A234M |
Tensile strength, min
|
Yield Strength, min | Elongation,%, min | |||
| Grade | Ksi | Mpa | Ksi | Mpa | Longitudinal | Transverse |
| WP5 | 60-85 | 415 - 585 | 30 | 205 | 22 | 14 |
| WP9 | 60-85 | 415 - 585 | 30 | 205 | 22 | 14 |
| WP11 | 60 - 85 | 415 - 585 | 40 | 275 | 22 | 14 |
| WP91 | 85 - 110 | 585 - 760 | 60 | 415 | 20 | - |
Hongcheng is a professional Alloy Steel pipe fittings Alloy Stee pipe manufacturer in China,
We can produce high quality steel pipe fittings,
Tee (Equal Reducing)
Material:
Stainless Steel: ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/ etc.
Carbon Steel: ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70 etc.
Alloy Steel: ASTM A234 / WP5/ WP9/ WP11/ WP22/ WP91
Marking:As per request
Packing: Wooden case(Fumigation free) Or as per request
Inspection: In house and third party
Document: MTC EN10204-3.1 can be provided prior to shipment

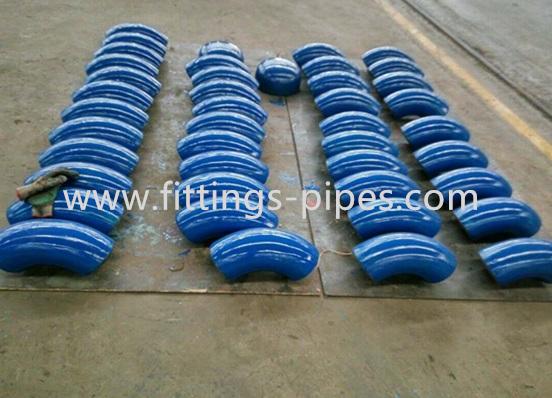

Surface treatment: Surface galvanized, antirust coating, Epoxy FBE Coating, Electro Polishing,
For further information about our company and products, please visit our website or contact us directly. You will get our 24X7 hour reply by Email, fax or Pohone.
| Nominal Pipe Size | Outside diameter | Center-to-End | |||
| at bevel | |||||
| Run | Outlet | Run | Outlet | Run (C) | Outlet (M) |
| 1/2" | 1/4" | 21.3 | 13.7 | 25 | 25 |
| 3/8" | 17.3 | ||||
| 3/4" | 3/8" | 26.7 | 17.3 | 29 | 29 |
| 1/2" | 21.3 | ||||
| 1" | 1/2" | 33.4 | 21.3 | 38 | 38 |
| 3/4" | 26.7 | ||||
| 1 1/4" | 1/2" | 42.2 | 21.3 | 48 | 48 |
| 3/4" | 26.7 | ||||
| 1" | 33.4 | ||||
| 1 1/2" | 1/2" | 48.3 | 21.3 | 57 | 57 |
| 3/4" | 26.7 | ||||
| 1" | 33.4 | ||||
| 1 1/4" | 42.2 | ||||
| 2" | 3/4" | 60.3 | 26.7 | 64 | 44 |
| 1" | 33.4 | 51 | |||
| 1 1/4" | 42.2 | 57 | |||
| 1 1/2" | 48.3 | 60 | |||
| 2 1/2" | 1" | 73 | 33.4 | 76 | 57 |
| 1 1/4" | 42.2 | 64 | |||
| 1 1/2" | 48.3 | 67 | |||
| 2" | 60.3 | 70 | |||
| 3" | 1 1/4" | 88.9 | 42.2 | 86 | 70 |
| 1 1/2" | 48.3 | 73 | |||
| 2" | 60.3 | 76 | |||
| 2 1/2" | 73 | 83 | |||
| 3 1/2" | 1 1/2" | 101.6 | 48.3 | 95 | 79 |
| 2" | 60.3 | 83 | |||
| 2 1/2" | 73 | 89 | |||
| 3" | 88.9 | 92 | |||
| 4" | 1 1/2" | 114.3 | 48.3 | 105 | 86 |
| 2" | 60.3 | 89 | |||
| 2 1/2" | 73 | 95 | |||
| 3" | 88.9 | 98 | |||
| 3 1/2" | 101.6 | 102 | |||
| 5" | 2" | 141.3 | 60.3 | 124 | 105 |
| 2 1/2" | 73 | 108 | |||
| 3" | 88.9 | 111 | |||
| 3 1/2" | 101.6 | 114 | |||
| 4" | 114.3 | 117 | |||
| 6" | 2 1/2" | 168.3 | 73 | 143 | 121 |
| 3" | 88.9 | 124 | |||
| 3 1/2" | 101.6 | 127 | |||
| 4" | 114.3 | 130 | |||
| 5 | 141.3 | 137 | |||
| 8" | 3 1/2" | 219.1 | 101.6 | 178 | 152 |
| 4" | 114.3 | 156 | |||
| 5" | 141.3 | 162 | |||
| 6" | 168.3 | 168 | |||
| 10" | 4" | 273 | 114.3 | 216 | 184 |
| 5" | 141.3 | 191 | |||
| 6" | 168.3 | 194 | |||
| 8" | 219.1 | 203 | |||
| 12" | 5" | 323.8 | 141.3 | 254 | 216 |
| 6" | 168.3 | 219 | |||
| 8" | 219.1 | 229 | |||
| 10" | 273 | 241 | |||
| 14" | 6" | 355.6 | 168.3 | 279 | 238 |
| 8" | 219.1 | 248 | |||
| 10" | 273 | 257 | |||
| 12" | 323.8 | 270 | |||
| 16" | 6" | 406.4 | 168.3 | 305 | 264 |
| 8" | 219.1 | 273 | |||
| 10" | 273 | 283 | |||
| 12" | 323.8 | 295 | |||
| 14" | 355.6 | 305 | |||
| 18" | 8" | 457 | 219.1 | 343 | 298 |
| 10" | 273 | 308 | |||
| 12" | 323.8 | 321 | |||
| 14" | 355.6 | 330 | |||
| 16" | 406.4 | 330 | |||
| 20" | 8" | 508 | 219.1 | 381 | 324 |
| 10" | 273 | 333 | |||
| 12" | 323.8 | 346 | |||
| 14" | 355.6 | 356 | |||
| 16" | 406.4 | 356 | |||
| 18" | 457 | 368 | |||
| 22" | 10" | 559 | 273 | 419 | 359 |
| 12" | 323.8 | 371 | |||
| 14" | 355.6 | 381 | |||
| 16" | 406.4 | 381 | |||
| 18" | 457 | 394 | |||
| 20" | 508 | 406 | |||
| 24" | 10" | 610 | 273 | 432 | 384 |
| 12" | 323.8 | 397 | |||
| 14" | 355.6 | 406 | |||
| 16" | 406.4 | 406 | |||
| 18" | 457 | 419 | |||
| 20" | 508 | 432 | |||
| 22" | 559 | 432 | |||
FAQ:
1. Are you a factory or trading company?
We are a factory.we also have cooperated factory doing other steel business.
2. How can I get a quotation from you ?
You can leave us message, and we will reply every message in time. Or we may talk on line by Trademanager.
And you can also find our contact information on contact page.
3.Can I get samples before order ?
Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.
4. what is your delivery time ?
The time of delivery is usually around 20 days(1*20FT as usual).
We can send out in 2 days, if it has stock.
5.What is your payment terms?
Our usual payment term is 30% deposite, and rest against B/L. L/C is also acceptatble.EXW,FOB,CFR,CIF,DDU.
6.How does your factory do regarding quality control?
Quality is priority. Our factory has gained ISO9001 authentication. We guarantee the goods out from our factory 100% qualified.
And Each Process, we have very strict operation and arrange 2 techinians to inspect. After the products are finished,
we will make the last test to pick up the unqualified products
