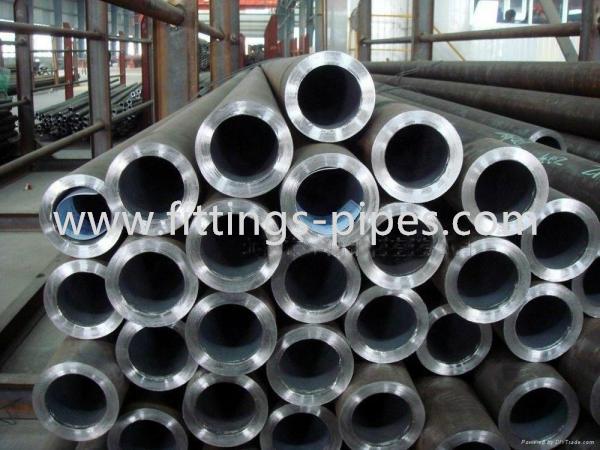

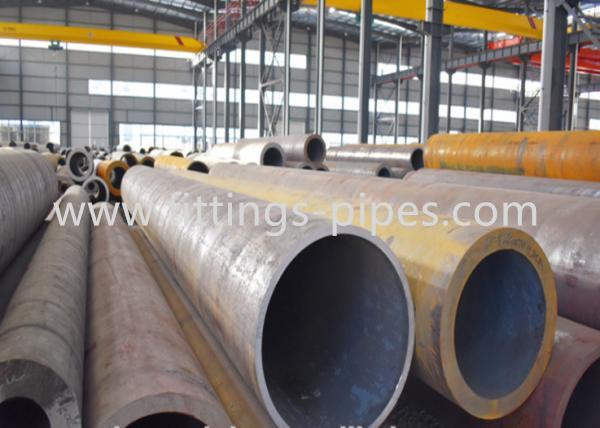

Thick 10" 12” Sch80  Sch120 Alloy Seamless Steel Tube Hot Rolled For Boiler

Alloy steel pipe applies to petroleum,chemical industry, electric power, boiler, high temperature resistant, low temperature resistant,corrosion resistant seamless steel pipe used.Alloy steel pipealso can made according to the customer.

Container size

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM

40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM

40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM

Outer Dimensions: 19.05mm – 114.3mm

Wall Thickness: 2.0mm – 14 mm

Length: max 16000mm

Steel grade: ASTM A335 P92

Packing:

Bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.

Inspection and Test:

Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test,No-destructive Test, Hydrostatic Test.

Surface treatment:

Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.

Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.

Chemical Requirements of ASTM A335 P92

UNS Designation

K92460

Carbon

0.07–0.13

Manganese

0.30–0.60

Phosphorus(max)

0.02

Sulfur(max)

0.01

Silicon

0.50 max

Chromium

8.50–9.50

Molybdenum

0.30–0.60

V

0.15-0.25

N

0.03-0.07

Ni (max)

0.4

Al(max)

0.02

Cb

0.04-0.09

W

1.5-2.00

B

0.001-0.006

Ti (max)

0.01

Zr(max)

0.01

Mechanical Properties of ASTM A335 P92

Properties

Data

Tensile strength, min, (MPa)

620

Yield strength, min, (MPa)

440

Elongation, min, (%), L/T

20/…

Material & Manufacture

Pipe may be either hot finished or cold drawn with the finishing heat treatment noted below.

Heat Treatment

A / N+T

N+T / Q+T

N+T

Mechanical Tests Specified

Transverse or Longitudinal Tension Test and Flattening Test, Hardness Test, or Bend Test

For material heat treated in a batch-type furnace, tests shall be made on 5% of the pipe from each treated lot. For small lots, at least one pipe shall be tested.

For material heat treated by the continuous process, tests shall be made on a sufficient number of pipe to constitute 5% of the lot, but in no case less than 2 pipe.

Notes for Bend Test:

For pipe whose diameter exceeds NPS 25 and whose diameter to wall thickness ratio is 7.0 or less shall be subjected to the bend test instead of the flattening test.

Other pipe whose diameter equals or exceeds NPS 10 may be given the bend test in place of the flattening test subject to the approval of the purchaser.

The bend test specimens shall be bent at room temperature through 180 without cracking on the outside of the bent portion.

1.Product details:

seamless steel pipe chemical composition:

FAQ

1.Q:Are you a factory or trading company?

A: We are a factory, has more than 20 years experience in pipe fittings production.

2.Q:Where is your factory located? How can I visit there?

A: Our factory is located in cangzhou City, hebei Province,China.

3.Q:How does your factory do regarding quality control?

A: We are ISO9001& PED certified by TUV. We serious control the quality from raw material to finished pipe fittings. So that we can 100% sure our goods is qualified.

4. Q: Price high ?

A: Our price is workable. We had tried use auto equipment to save Workers cost, and control other costs. like human sources, logistics etc.

5.Q: After sales service.

A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.
