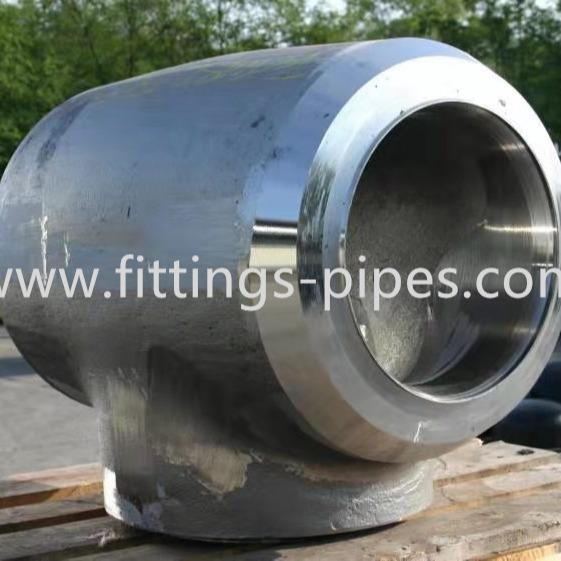

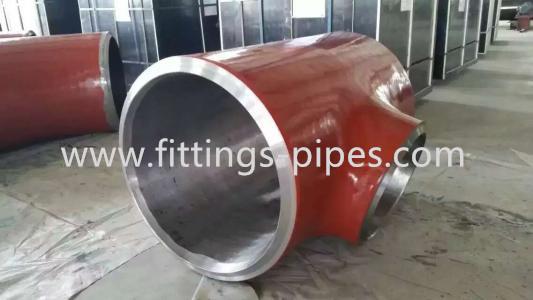

Astm A240 18" Sch80 High Pressure Tee Duplex 2205 Seamless
Price:
consult
MOQ:
1PC
Delivery Time:
7-15 work days
Brand:
hongcheng
Product Description
Astm A240 18" Sch80 Duplex 2205 Seamless High Pressure Tee
We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Hongcheng products also won the great praise among the customers.
ASTM A815 specification covers two general classes, WP and CR, of wrought ferritic, ferritic/austenitic, and martensitic stainless steel fittings of seamless and welded construction. Class WP fittings are subdivided into four subclasses: Classes WP-S, WP-W, WP-WX, and WP-WU. The material for fittings shall consist of forgings, bars, plates, or seamless or welded tubular products. The steel shall be melted by electric furnace, vacuum furnace, or electric furnace followed by vacuum or electroslag-consumable remelting. Forging or shaping operations shall be performed by hammering, pressing, piercing, extruding, upsetting, rolling, bending, fusion welding, machining or by combination of two or more of these operations. The materials shall undergo heat treatment and shall follow the required cooling process and tempering temperature. Chemical and product analyses shall be performed and shall conform to the required chemical composition in carbon, manganese, phosphorus, silicon, sulfur, nickel, chromium, molybdenum, copper, nitrogen, and titanium. The mechanical properties of the fitting material shall conform to the required values in yield strength, tensile strength, elongation, and hardness.
Duplex 2205 Chemical Composition
Duplex 2205 Mechanical Properties
Density |
Melting Point |
Yield Strength (0.2%Offset) |
Tensile Strength |
Elongation |
7.8 g/cm3 |
1350 °C (2460 °F) |
Psi – 80000 , MPa – 550 |
Psi – 116000 , MPa – 800 |
15% |
Duplex 2205 Fittings Equivalent Grades
STANDARD |
WERKSTOFF NR. |
UNS |
ASTM A815 WP-S |
1.4462 |
S32205 |
ASME B16.9 S32205 Duplex Pipe Fittings Dimensions
NOMINAL PIPE SIZE |
ALL FITTINGS |
ALL FITTINGS |
ELBOWS AND TEES |
180 DEG RETURN BENDS |
180 DEG RETURN BENDS |
180 DEG RETURN BENDS |
REDUCERS |
CAPS |
NPS |
O.D. at Bevel (1), (2) |
I.D. at End |
Centre -to- End Dimension A, B, C, M |
Centre-to- Centre O |
Back-to- Face K |
Alignment of Ends U |
Overall Length H |
Overall Length E |
(1), (3), (4) |
||||||||
½ to 2½ |
0.06 |
0.03 |
0.06 |
0.25 |
0.25 |
0.03 |
0.06 |
0.12 |
-0.03 |
||||||||
3 to 3 ½ |
0.06 |
0.06 |
0.06 |
0.25 |
0.25 |
0.03 |
0.06 |
0.12 |
4 |
0.06 |
0.06 |
0.06 |
0.25 |
0.25 |
0.03 |
0.06 |
0.12 |
5 to 8 |
0.09 |
0.06 |
0.06 |
0.25 |
0.25 |
0.03 |
0.06 |
0.25 |
-0.06 |
||||||||
10 to 18 |
0.16 |
0.12 |
0.09 |
0.38 |
0.25 |
0.06 |
0.09 |
0.25 |
-0.12 |
||||||||
20 to 24 |
0.25 |
0.19 |
0.09 |
0.38 |
0.25 |
0.06 |
0.09 |
0.25 |
-0.19 |
||||||||
26 to 30 |
0.25 |
0.19 |
0.12 |
… |
… |
… |
0.19 |
0.38 |
-0.19 |
||||||||
32 to 48 |
0.25 |
0.19 |
0.19 |
… |
… |
… |
0.19 |
0.38 |
-0.19 |
FAQ
Q. How long can make delivery?
A:For stock products, will make shipments in 5- 7 days after receiving deposit or receiving L/C; for products need new production for common materials, usually make shipments in 15-20 days; for products need new production for special and rare materials, usually need 30-40 days to make shipment.
Q:Can you provide the samples?
A:Samples can be provided with samples charge and courier fee by the buyer's side.
Q:Are the products in stock?
A:Yes.Most of our products are in stock.So we can prompt delivery.
Q:Can you accept customize?
A:Yes.It can be customized as per the customers' request.
Q:What about the quality?
A:According to the standard for production.And we can also accept the third-party inspection
and quarantine.
About the After-Sale Service
a.We are glad that customers can give us some suggestions for price and products.
b.If you have any questions,pls feel free to contact us by email or phone.
