OEM ODM USB To DC Power Cable , USB Data Cable Cord DC 5.5x2.1 For Camera
USB to DC Power Charging Cable Cord DC/5.5x2.1 5.5x2.5 3.5x1.35 4.0x1.7 2.5x0.7 Custom USB Cable
Quick Detail:
- USB To DC Barrel Jack Power Cable Adapter Wire Connector
- Connector A: USB2.0 a male
- Connector B: DC Port Plug
- DC Tip: 5.5x2.1 5.5x2.5 3.5x1.35 4.0x1.7 2.5x0.7 Male.
- Length: 0.5m/1m/1.5m/2m/Custom.
- Color: Black
- Jacket: PVC
About the item
- Part Description: USB to DC Power Charging Cable Cord DC/5.5x2.1 5.5x2.5 3.5x1.35 4.0x1.7 2.5x0.7 Custom USB Cable
- Connector A: USB 2.0 a male with nickel plating.
- Connector B: DC of 5.5x2.1 5.5x2.5 3.5x1.35 4.0x1.7 2.5x0.7 mm Male.
- Cable detail: 24awg*2 Cores.
- Jacket: PVC or Custom.
- Shielding: Non shielding.
- length: 0.5m/1m/1.5m/2m. Other length is available for customization.
- Color: Black. other color is also available and could be made as per your requirements.
- Function: Charging only.
| Part Description |
USB To DC Barrel Jack Power Cable Adapter Wire Connector |
| Part No. | U2-DC-1L-004 |
| Connectors | USB 2.0, DC port plug |
| Length | 0.5m/1m/1.5m/2m/Custom |
| Color | Black/Custom |
| Conductor | Pure Copper |
| Wire Gauge | AWG 24# * 2 |
| Jacket | PVC |

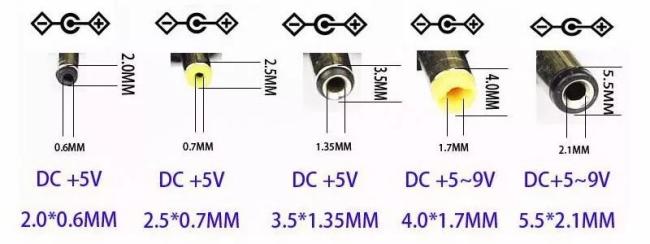

| DC Tip | 5.5x2.1 5.5x2.5 3.5x1.35 4.0x1.7 2.5x0.7 mm Male |
| Warranty | 180 days |
You need to confirm below specification, and contact us.

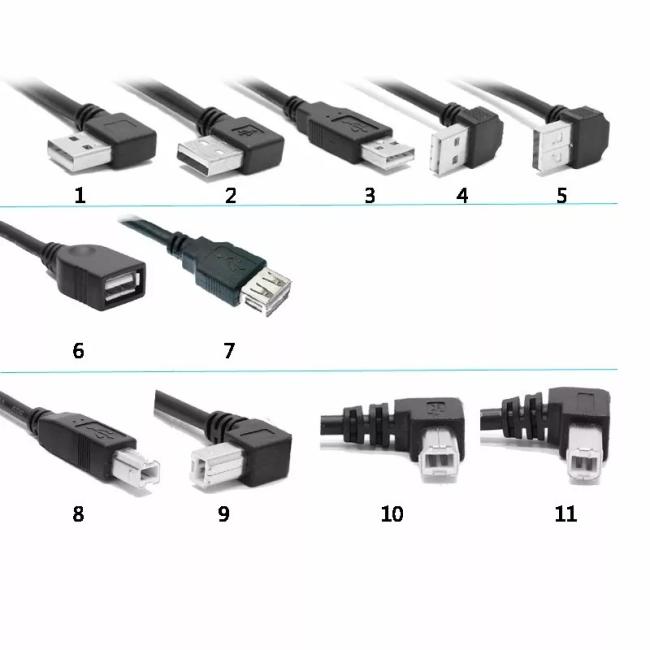

1. Connector---What connector do you want? (e.g. USB 2.0 A male+ DC plug)
2. DC size--What DC connector size do you want? (e.g. DC size 5.5*2.1mm)
3. Connector Direction:--Do you want straight one or 90 degree one?
4. Length---How long the cable do you want? (e.g. 1m)
5. AWG--- What's the wire AWG do you want? (e.g. 24awg), Or if you know the current, also is ok. (e.g. Max 2A current)
6. Color---Do you want black or white color?
7. QTY---How many pieces do you want?
