SRE20 Tubular Handling Tool To 25 Sucker Rod Elevator Drilling Carbon Steel
SRE20 Tubular Handling Tool To 25 Sucker Rod Elevator Drilling Carbon Steel

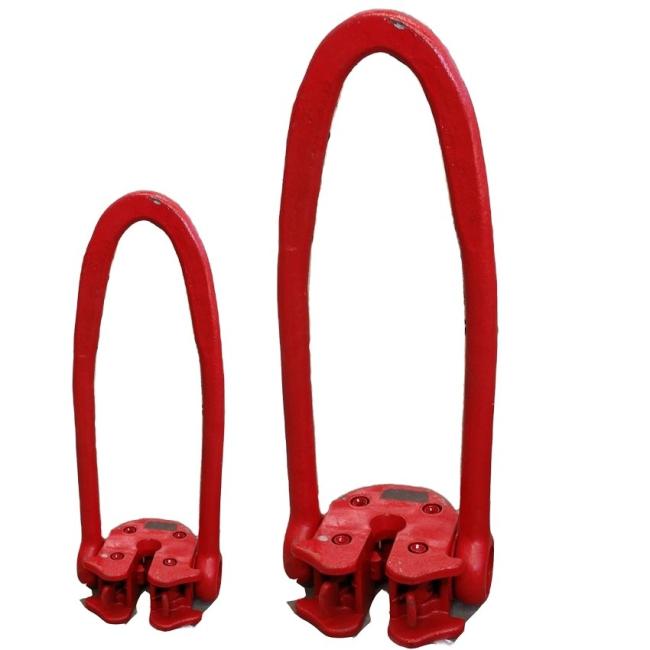

Description of Sucker Rod Elevator
Sucker rod elevator is composed of elevator body and rod plates, which allow quick convert ion of the elevator body to various rod or pipe size. Additional saving is realized because work plates can be replaced instead of replacing the entire elevator. The basic elevator design provides excellent balance and non-tilt performance. Large access to the front and rear release levers assures easy, safe latching and unlatching. They are designed and manufactured according to API Spec 8C PSL1-specification for drilling and production Hoisting Equipment.
SRE Sucker Rod Elevator for oil field
SRE sucker rod elevators are suitable for each size sucker rod in well repairing.
1.It can be adjusted by changing the spacer on the body.
2.The elevators are designed and manufactured according to API Spec 8A-/8CSpecification for Drilling and Production Hoisting Equipment.
Tubular Handling Tools Feature:
1. Model: SRE20, SRE25
2. sucker rod elevators are hoisting tools for handling sucker rods
3. rated capacity:20tons, 25tons
4. applicable diameter of tubulars: 1/2~11/2 inch
5. Standard: API 8A/8C
| Rod size |
Dia of Bore (mm) |
Max load (kN) |
Weight (kg) |
| 1/2-5/8 | 19 | 200 | 12 |
| 5/8 - 3/4 | 23 | ||
| 3/4 - 7/8 | 26 | ||
| 1 | 30 | ||
| 1.1/8 | 32 | ||
| 1.1/4 | 35 | ||
| 5/8 - 3/4 | 23 | 25 | 17 |
| 3/4 - 7/8 | 26 | ||
| 7/8-1 | 30 |
| Specification | Rating Load KN(t) |
Specification of Suck Rod(in) |
| SRE20 | 20Tons (180KN) | 1/2”-5/8”,5/8”-3/4”,3/4”-7/8”,1”,1-1/8”,1-1/4”,1-1/2” |
| SRE25 | 25Tons (225KN) | 5/8”-3/4”,3/4”-7/8”,1” |
Topland main products:
1.API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
