Oilfield Drilling Rig Spare Parts Sucker Rod Pump API 11AX Standard
API 11AX Standard Drilling Rig Spare Parts Oilfield Sucker Rod Pump
Sucker Rod Pump description of Drilling Rig Spare Parts
Tubing Pump
The tubing pumps can be sunk into wells in sequence as follows: barrel is run down to the setting depth on the tubing and then plunger with the standing valve on the rod string. For tubing of same diameter, tubing pumps are always of larger capacity than insert pumps. The tubing pump is simple in structure and applicable for wells not too deep and of higher production rate. Tubing pumps are classified as THD pumps and THC or THM pumps. The standing valves of THC or THM pump can be hold and sealed by a mechanical or cup hold-down. Plunger together with standing valve can be lifted out integrally for normal pump check, with the tubing remain intact. This makes the tubing pumps suitable for wells usually with short pump check intervals.
Insert Pump
The insert pump can be connected to sucker rod on the surface and then lowered into the wells integrally through the tubing. Pump checks are easy and without the need of pulling and running the tubing. This makes it especially suitable for deep well applications. Reduced running time and make-and-breaks can surely enhance tubing working life. Insert pumps are clarified as mechanical and cup hold-down pumps by hold-down types or as top hold-down, bottom hold-down and travelling barrel insert pumps by hold-down positions
Drilling Rig Spare Parts Sucker Rod Pump Datasheet

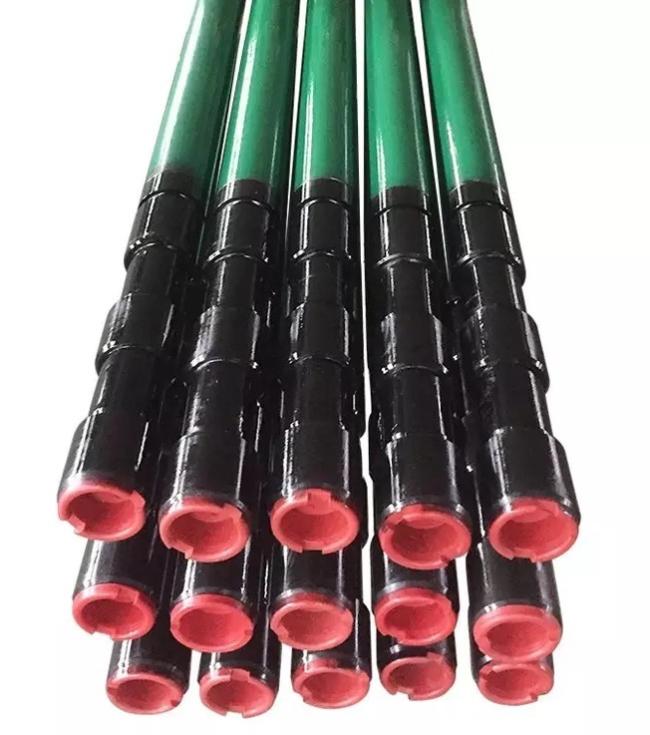

Sucker rod size
| SN | Normal size in(mm) | Dia. of coated rod (mm) | Wrench section width (mm) | Wrench section Length (mm) | OD of Male thread step (mm) | Nipple neck length of ascension(mm) |
| 1 | 5/8(16) | 19 | 27 | 28 | 37 | 127 |
| 2 | 3/4(19) | 22 | 29 | 28 | 43 | 127 |
| 3 | 7/8(22) | 25 | 29 | 28 | 45 | 127 |
| 4 | 1(25) | 28 | 39 | 28 | 55 | 127 |
| 5 | 1 1/8(29) | 32 | 43 | 37 | 60 | 127 |
Coated Layer Performance
| SN | Item | Performance index | Execution Standard |
| 1 | Density/ g/cm3 | 1.1 | GB/T1033 |
| 2 | Vicat Softening Temperature / ℃ | ≥180 | GB/T1633 |
| 3 | Tensile Yield Strength/ MPa | ≥28 | GB/T8804.3 |
| 4 | Elongation at Break Rate/ % | ≥150 | GB/T8804.3 |
| 5 | Shore Hardness/ HD | ≥80 | GB/T2411 |
| 6 | Mortar wear rate/ mg/h | ≤3.5 | Appendix |
