Metal Pipe Rotary Drilling Hose Stainless Steel Wire Braided Flexible Hose
Flexible Metal Pipe Rotary Drilling Hose Stainless Steel Wire Braided Flexible Hose
Flexible Metal Hose description of Rotary Drilling Hose

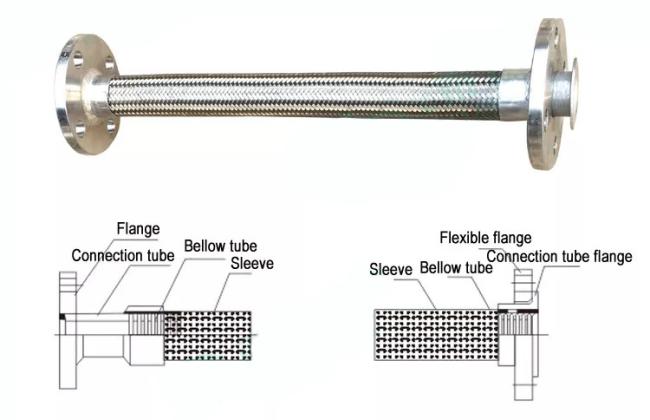

Metal flexible hose is a kind of flexible pipe with high quality in modern industrial pipeline. The inner tube of metal bellows hose is spiral or annular thin-wall stainless steel bellows, the outer braid mesh of bellow pipe(corrugated pipe) is made of stainless steel wire and steel belt according to certain parameters,the joints or flanges on both ends of the hose are matched to the joint or flange of the customer's pipe.
Character of metal flexible hose:
1. Good softness, anti-fatigue
2. High pressure resistant, high and low temperature resistant, corrosion resistant
3. The service life of metal hose is much higher
4. High comprehensive economical benefits.
| Nominal diameter DN | Inner diameter | Outer diameter | Minimum bending radius | Working pressure | |||
| (mm) | Bellows | Braid mesh | Static | Dynamic | Single braid mesh | Double braid mesh | |
| 8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 |
| 10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 185 | 20 |
| 15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 18 | 20 |
| 20 | 20 | 27 | 28.6 | 120 | 270 | 10 | 15 |
| 25 | 27 | 34.5 | 36.1 | 160 | 360 | 6.3 | 10 |
| 32 | 32 | 40 | 41.6 | 175 | 400 | 4 | 6.3 |
| 40 | 39.6 | 52 | 53.6 | 225 | 510 | 4 | 6.3 |
| 50 | 49.7 | 62 | 63.6 | 280 | 640 | 3 | 5 |
| 65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 3 | 5 |
| 80 | 79 | 96.3 | 97.9 | 486 | 1030 | 3 | 5 |
| 100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 2.5 | 4 |
| 125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 2.5 | 4 |
| 150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 2.5 | 4 |
| 200 | 176 | 240 | 243.2 | 1000 | 2000 | 2.5 | 4 |
| 250 | 248 | 290 | 294 | 1250 | 2500 | 2.5 | 4 |
| 300 | 298 | 350 | 354 | 1500 | 3000 | 1.6 | 2.5 |
| 350 | 347 | 400 | 404.8 | 1750 | 3500 | 1.6 | 2.5 |
| 400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 1.6 | 2.5 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?

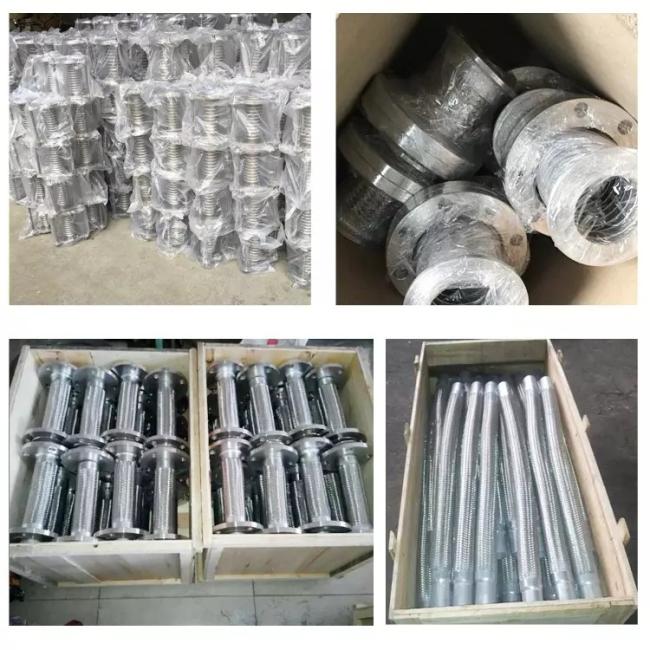

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
