API 5CT Oilfield Wellhead Equipment Casing /Tubing Stabbing Guide

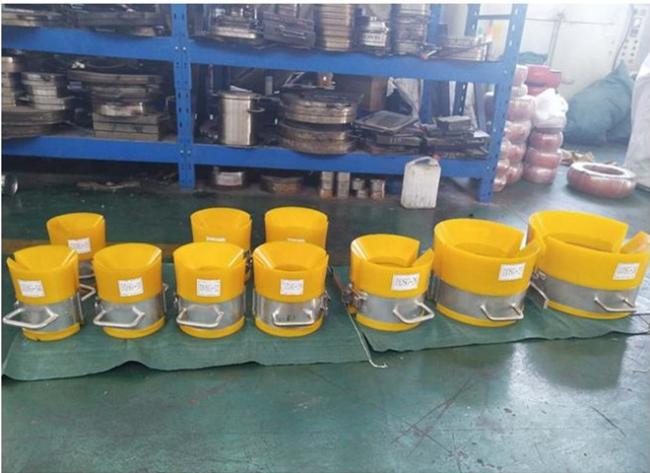

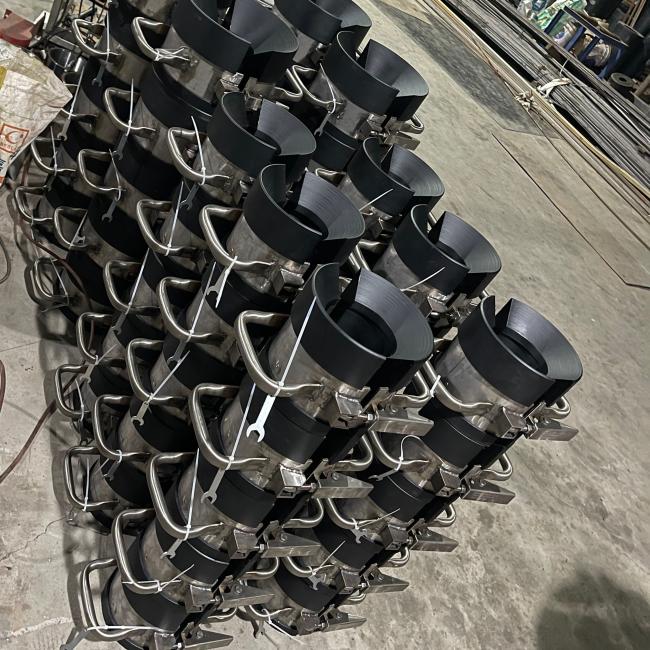

Oilfield Wellhead Equipment Stabbing Guide Description:

Stabbing guides allow for quicker, easier stabbing and adds protection from stabbing damage to threaded connections.
The self-adjusting latch holds the stabbing guide in place on both new and worn box ODs, and the spring loaded-lever, when triggered, releases the guide for quick removal after stabbing.

When stabbing joints of pipe, the geometry of the stabbing guide ensures the two joints are perfectly concentric, allowing them to be screwed together and torqued properly.

There are always two main features when referring to stabbing guide geometry: the thru-bore (top) and the counterbore (bottom). The counterbore slides over and rests on the box end of the pipe (female), while the thru-bore guides the pin threads (male) to align with the box threads. It is common practice to make the thru-bore and counterbore out of a strong, durable material that is somewhat elastic. These types of materials vary widely; care should be taken to select one that will stand up to all working conditions it may encounter including extreme temperatures, drilling fluids, corrosive chemicals, water, impact, fatigue, etc.

Technical Parameters of SG Model Stabbing Guide

FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.

2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.

4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-2. Order tracking service

5. How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

6. What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
