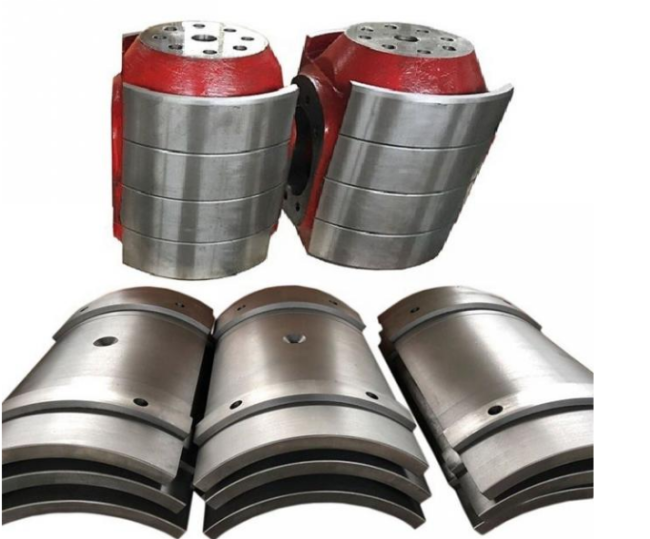

F / FB / NB / PZ8 Cast Iron Crosshead Guide Plate Drilling Mud Pump Spare Parts API 7k
What is the Mud Pump Crosshead?
The crosshead assembly is a key part of the power end of the mud pump. When the crosshead is working, it slides in the upper and lower guide plates and pushes the middle rod to transmit the power to the hydraulic end. The upper and lower guide plates are part of the crosshead assembly, the crosshead slides in the upper and lower guide plates, and the upper and lower guide plates function as slideways.
* The crosshead slides in the upper and lower guide plates, pushing the extension rod to transfer the power to the fluid end. One end of the crosshead is fixed to the extension rod. The crosshead connects the small end of the connecting rod by the crosshead pin.
* Besides the F-500 mud pump that is cylindrical structure, upper and lower guide structures are used for other mud pumps so that the concentricity can be adjusted by adding space under the lower guide.
* The connection between the crosshead and the extension rod is made by using bolted flange. The rigid connection ensures the concentricity of the crosshead and the extension rod.
What are Features of the Mud Pump Crossheads?
1. -- Good abrasion resistance.
2.-- Little deformation.
3.-- High precision.
4.-- Extended service life.
5.-- Completely interchangeable with the OEM. 100% exchangeable with OEM parts of all major pump models, such as National, Emsco, Gardner Denver, Bomco, Ideco, Oilwell...triplex mud pumps. 6.-- Meet API 7K quality standards. Products are produced according to ISO9001 quality system, APISpec7K standard, and each process can be tracked, recorded, and traceable.
| Crosshear For Mud Pumps: | |
|---|---|
| EMSCO | F-350, F-500, F-650, F-800, F-1000, F-1300, F-1600, FB-1300, FB-1600, FC-2200,D-300, D-375, D-500, D-700, DA-500, DA-700 |
| BOMCO | F-350, F-500, F-650, F-800, F-1000, F-1300, F-1600, FB-1300, FB-1600, FC-2200,D-300, D-375, D-500, D-700, DA-500, DA-700 |
| GARDNER DENVER | PAH, PJ8A, TEE, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11 |
| IDECO | T-500, T-800, T-1000, T-1300, T-1600 |
| NATIONAL | JWS-400, 7-P-50, 8-P-80, 9-P-00, 10-P-130, 12-P-160, 14-P-200, 14-P-220,K-500, K-500A, K-700, K-700A |
| OILWELL | A-350-PT, A-560-PT, A-600-PT, A-850-PT, A-110-PT, A-1400-PT, A-1700-PT |
| UNBT | 8T-310, 8T-650, BRN-1, NBT-600, UNB-600, UNBT-950, UNBT-1180, UNBT-1180L |
| QZ/LS | 3NB-800,3NB-1000,3NB-1000C,3NB-1300,3NB-1300C,3NB-1600 |
| WIRTH | TPK1000, TPK1600, TPK2000 |
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,
PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5: How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
