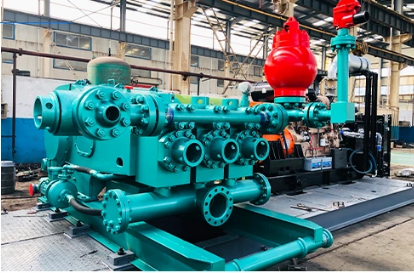

F1600 Mud Slurry Plunger Pump For Drilling Rig, Oilfield Mud Pump Spare Parts API 7K
F1600 Drill Mud Slurry Plunger Pump For Drilling Rig API 7K Oilfield Mud Pump Spare Parts
Description of Mud Pump Spare Parts
Our F series mud pump are designed and manufactured on the basis of American Emsco F series mud pump strictly according to America Petroleum Institution API 7K Standard. All of its expendable parts are interchangeable with any other spare parts produced according to API standard. Therefore it is easy to repair and maintain internationally .
| Model | F500 | F800 | F1000 | 1300 | F1600 | F2200 |
| Power rating HP(kw) | 500(373) | 800(597) | 1000(746) | 1300(969) | 1600(1193) | 2200(1618) |
| Stroke rating SPM | 165 | 150 | 140 | 120 | 120 | 105 |
| Stroke length (in/mm) | 7.5"/190.5 | 9"/228.6 | 10"/254 | 12"/305 | 12"/305 | 356 |
| Gear ratio | 4.286 | 4.185 | 4.207 | 4.206 | 4.206 | 3.512 |
|
Inlet dia. (in/mm) |
8"/203 | 10"/254 | 12"/305 | 12"/305 | 12"/305 | 305 |
|
Outlet dia. (in) |
4" flange 5000psi |
5-1/8" flange 5000psi | 5-1/8" flange 5000psi | 5-1/8" flange 5000psi | 5-1/8" flange 5000psi | 130 |
| Valve | API 5# | API 6# | API 6# | API 7# | API 7# | API 8# |
| Max. liner (in/mm) | 6-3/4"/170 | 6-3/4"/170 | 6-3/4"/170 | 7"/180 | 7"/180 | φ140-φ230 |
|
Overall dimension L*W*H (mm) |
3658*2709*2231 | 3963*3025*2410 | 4267*3167*2580 | 4617*3260*2600 | 4615*3276*2688 | 6000*3456*2746 |
| Approx.weight (kg) | 9770 | 14500 | 18790 | 24572 | 24791 | 38800 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,
PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5: How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
