API 7k Piston Rod Mud Pump Spares Oilwell A1100PT Pony Rods A1700PT 14P220 9T1000
API 7k Piston Rod Mud Pump Spares Oilwell A1100PT Pony Rods A1700PT 14P220 9T1000

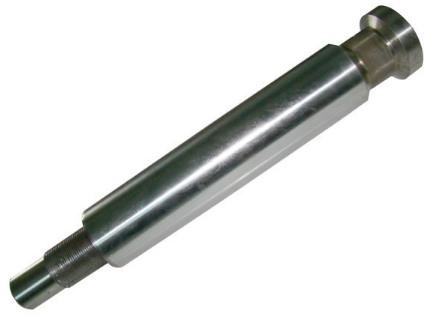

Mud Pump Spare Parts Piston Rod
The piston rod is made of structural alloy steel, which goes through tempering heat treatment to achieve superior mechanical performance. The surface of the piston rod can be treated through phosphatization or galvanization.

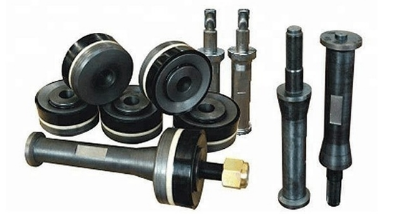

Our piston rods are manufactured from high quality alloy steel. Surface is induction hardened for maximum case hardness and core strength - hard on the outside, tough on the inside. Precision ground mirror surfaces meet rigid quality control standards and minimize wear.Topland offers a full range of clamps, piston rod, crosshead extension (pony) rod.
| China F series Mud Pump | F-500, F-800/1000, F-1300/1600 |
| China 3NB series Mud Pump | 3NB-350, 3NB-500, 3NB-600, 3NB-800, 3NB-1000, 3NB-1300, 3NB-1600 |
| EMSCO | F-350, F-500, F-650, F-800, F-1000, FA-1300, FB-1300, FA-1600, FB-1600 |
| GARDNER DENVER | PZ-7, PZ-8/9, PZ-10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP |
| NATIONAL | 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400 |
| OILWELL | A-560/600-PT,A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT |
| IDECO | T-500, T-800, T-1000, T-1300, T-1600 |
National mud pump spare parts
| PARTNO. | DESCRIPTION | PARTNO. | DESCRIPTION |
| 1291280 | Discharge Module, Studded | 1291085 | Piston Rod Clamp |
| 1290338 | Suction Module, Studded | 1291090 | Crosshead,R.H.& Center |
| 1290174 | Seal Retainer | 1291165 | Liner Bushing |
| 1290175 | Back Up Ring | 1291166 | Liner Clamp |
| 1290178 | Wedge Adjusting Screw | 1291182 | Intermediate Rod Wiper Seal |
| 1290181 | Wedge Retaining Spring | 1291190 | Liner Spray Manifold |
| 1290307 | Valve Cover | 1291194 | Intermediate Rod Baffle |
| 1290308 | Threaded Ring | 1291276 | Sub Rod |
| 1290315 | Wedge Adjusting Screw Washer | 1291277 | Piston Rod |
| 1290342 | Discharge Connector | 1291286 | Discharge Spacer,Studded |
| 1290343 | Discharge Connector Adapter | 1292140 | alve Guide Holder |
| 1290344 | Suction Module & Wear Plate Seal | 1292141 | alve Guide Insert |
| 1290345 | Discharge Spacer Seal | 1540126 | Valve Cover Gasket |
| 1290357 | Wear Plate | 1590051 | Suction Manifold Seal |
| 1291015 | Crossheadi,R.H.& Center | 2410031-348 | Rectangular Packing |
| 1291017 | Crosshead Liner | 2410031-427 | Rectangular Packing |
| 1291028 | Crosshead Pin | 6908033 | Ring Joint Gasket |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS,
PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5: How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
