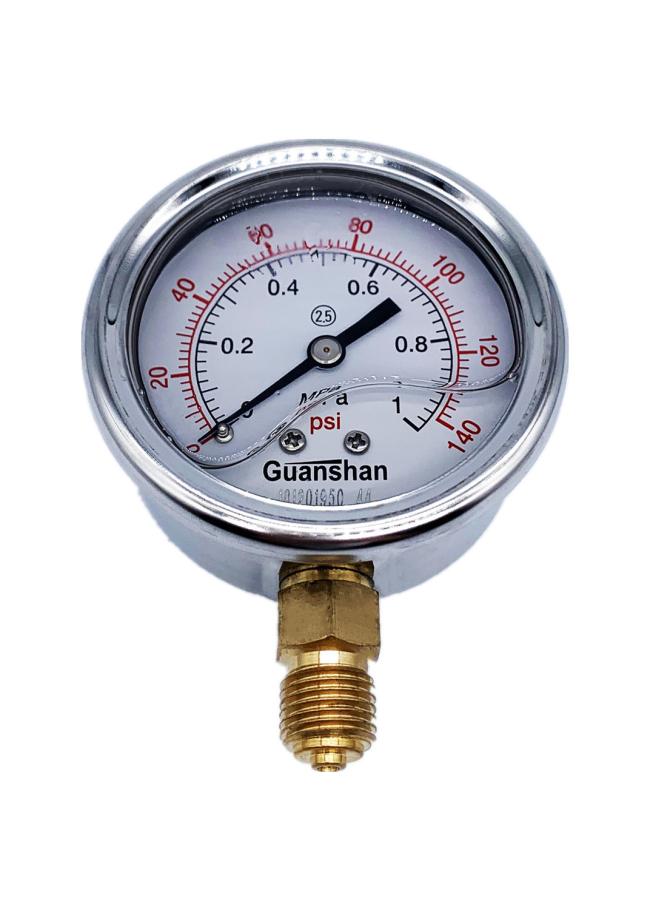

63 mm 2.5'' Drilling Apparatus Shockproof Stainless Steel Pressure Gauge
Pg-L-08 63 Mm ( 2.5 ") Drilling Instruments Shockproof Stainless Steel Pressure Gauge
Pressure gauge refers to an instrument that uses elastic elements as sensitive elements to measure and indicate pressure higher than the ambient pressure. It is extremely popular, and it covers almost all industrial processes and scientific research fields. It can be seen everywhere in the fields of heating pipe network, oil and gas transmission, water and gas supply system, vehicle repair and maintenance factories and stores. Especially in the process of industrial process control and technical measurement, because the elastic sensitive element of the mechanical pressure gauge has the characteristics of high mechanical strength and convenient production, the mechanical pressure gauge is more and more widely used.
Pressure Gauge of Drilling Instruments
|
Dial |
1.5'',2'',2.5’’,4”, 6”,8'',10''(40mm,50mm,63mm,100mm, 150mm,200mm,250mm) |
|
Case |
Full stainless steel,iron |
|
Lens |
Common glass or Safety glass |
|
Ranges |
-1Bar(-30"Hg)-0-1000Bar(15000Psi) Minimum: 0~0.1Mpa Maximum: 0-100Mpa Minimum negative pressure: -0.1Mpa Maximum negative pressure: -0.1~2.4Mpa |
|
Accuracy Class(Indication) |
1.0%;1.5% |
|
Accuracy Class(Setting) |
4% |
|
Quantity of Contacts |
1 or 2, (Φ 100mm, 3 or 4 contacts available) |
|
Maximum Working Voltage |
AC380V or DC220V |
|
Maximum Current |
1A |
|
Contact Power Temperature Effects |
30VA When temperature deviates from 20 ± 5°C, the error |
|
Connection Size |
1/8",1/4", 3/8",1/2"; PT(BSPT,ZG),BSP(G,PF),NPT etc. Customized |
|
Protection Class |
Standard type: IP 54;Vibration-proof type: IP65 |
|
Filling for vibration-proof style |
Special silicon or glycerin liquid filled |
|
Temperature Effects |
When temperature deviates from 20 ± 5°C, the error |
|
Environment condition |
Temperature -40~70 ; Relative Humidity 85% |
|
Shock-proof class |
V*H*3 for YXC type V*H*4 for YXN type |
|
Technical parameter of electric contact |
Max. Working Voltage: DC220V; AC380V Max. Power on Contact: 30VA (Resistant Loading) Control Way: by adjusting magnetic contact switch |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-4. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6. What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
