API 7K SDS SDML SDXL Tubular Handling Tools Rotary Drill Pipe Slips
API 7K SDS SDML SDXL Rotary Drill Pipe Slips Tubular Handling Tools
Rotary Drill Pipe Slips Description of Tubular Handing Tools

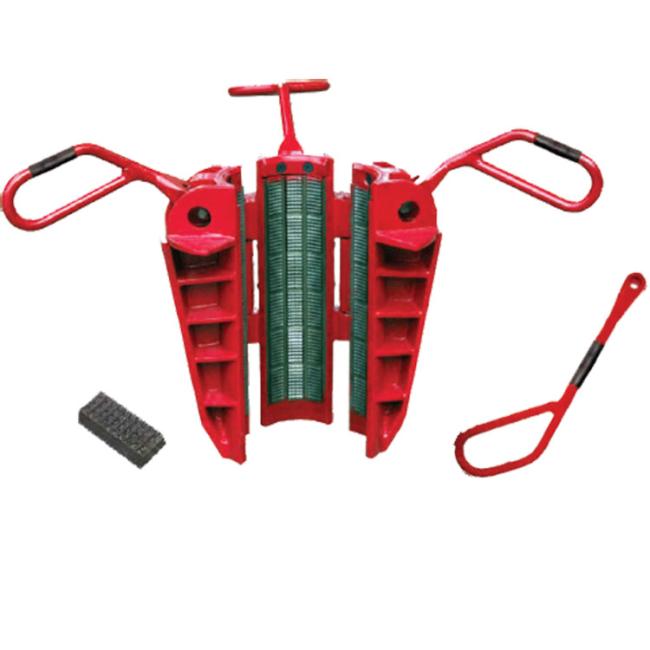

Rotary slips can accommdate drill pipe from 2 3/8" to 5 1/2" (60.3mm to 139.7mm) OD. they are classified as type short(SDS), Medium(SDML) and Extra Long(SDXL) according to gripping length. SDS slips are designed for shallow hole drilling. SDML slips are the perfect choice for all medium depth drilling, SDXL slips are designed for deep drilling.The slips are designed and manufactured in API Spec 7K and SY/T 5049 Slips for well drilling. It is suitable to handle the drill rods during the oil well drilling operations for the exploration of petroleum and natural gases ,It is an essential tool for coupling and uncoupling.
| SDS | |||||||
| Slip Body Size(in) | 3 1/2" | 4 1/2" | |||||
| Pipe Size(in) | 2 3/8" | 2 7/8" | 3 1/2" | 3 1/2" | 4" | 4 1/2" | |
| P/N: Slip w/Flex Handles &Inserts | 3901 | 3903 | 3905 | 3907 | 3909 | 3911 | |
| Wt: Slip w/inserts. Ibs (KG) | 134(61) | 128(58) | 124(56) | 162(73) | 155(70) | 146(66) | |
| Insert Set: | P/N | 2160-24 | 2161-24 | 2162-24 | 2163-36 | 2164-36 | 2165-36 |
| Wt.Ibs (KG) | 21(9.5) | 16(7) | 10(4.5) | 32(14.5) | 25(11) | 16(7) | |
| Qty. | 24 | 24 | 24 | 36 | 36 | 36 | |
| SDML | |||||||||||||
| Slip Body Size(In) | 3 1/2" | 4 1/2" | 4 1/2" | 5 1/2" | |||||||||
| Pipe Size(In) | 2 3/8" | 2 7/8" | 3 1/2" | 3 1/2" | 4" | 4 1/2" | 4" | 4 1/2" | 5" | 4 1/2" | 5" | 5 1/2" | |
| P/N: Slip W/Flex Handles& Inserts | 15524 | 15523 | 15522 | 15563 | 15564 | 15565 | 15567 | 15568 | 15569 | 15571 | 15572 | 15573 | |
| Wt: Slip W/Inserts(Ibs.) | 193(87.5) | 188(85) | 180(81.5) | 207(94) | 199(90) | 188(85) | 204(92.5) | 196(89) | 185(84) | 200(91) | 192(87) | 181(82) | |
| Insert Set: | P/N | 2160-30 | 2161-30 | 2162-30 | 2163-45 | 2164-45 | 2165-45 | 2168-45 | 2166-45 | 2167-45 | 2168-45 | 2169-45 | 2170-45 |
| Wt. Ibs (KG) | 26(12) | 21(9.5) | 13(6) | 39(17.5) | 31(14) | 20(9) | 39(17.5) | 31(14) | 20(9) | 39(17.5) | 31(14) | 20(9) | |
| Qty. | 30 | 30 | 30 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | |
| SDXL | ||||||||||
| Slip Body Size(in) | 4 1/2" | 5" | 5 1/2" | |||||||
| Pipe Size(in) | 3 1/2" | 4" | 4 1/2" | 4" | 4 1/2" | 5" | 4 1/2" | 5" | 5 1/2" | |
| P/N: Slip w/Flex Handles&Inserts | 15515 | 15514 | 15513 | 15518 | 15517 | 15516 | 15521 | 15520 | 15519 | |
| WT: Slip w/ inserts. Ibs(KG) | 229(104) | 219(99) | 205(93) | 237(107.5) | 227(103) | 213(96.5) | 234(106) | 224(101.5) | 210(95) | |
| Insert Set: | P/N | 2163-54 | 2164-54 | 2165-54 | 2168-54 | 2166-54 | 2167-54 | 2168-54 | 2169-54 | 2170-54 |
| Wt.Ibs(KG) | 47(21) | 37(17)_ | 23(10.5) | 47(21) | 37(17)_ | 23(10.5) | 47(21) | 37(17)_ | 23(10.5) | |
| Qty. | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | |
