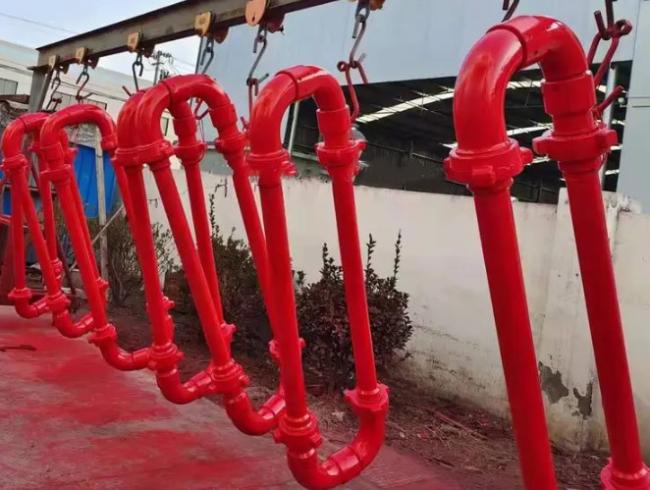

Hose Loop Descritiopn

The hose loop is used in oil field cementing, acid fracturing, etc;
The hose loop is assembled by swivel joint, hammer union and pup joint, can be swiveled in three directions flexibly;

The hose loop can be used in discharge pup joint, transportation pup joint, well testing pup join, well cementing pup joint, and transportation liquid flow under high pressure environment;
The hose loop can be matched with many kinds of swivel joints;

The hose loop has specifications of 2in, 3in, 4in and is adaptive to working under 42MPa(6000psi), 70MPa (10000psi), 105MPa(15000psi);
Hummer union can be connected or disconnected with pup joint. The disconnection is suitable for low pressure pup joint and connection is suitable for high pressure pup joint;
We are able to supply hose loop in each specification, pressure, length (according to expanded size) according to users’ needs.


Technical Specification:

2. Design Features of Hose Loop
1) The swivel joint attached to hose loop is characterized by flexibility, impact resistance, vibration resistance, big rate of flow, etc.
2) The hose loop has fine sealing performance;
3) The hose loop is connected by union, which is simple to assemble and disassemble, crush resistance, and high sealing performance. It has the advantages of easy foldability, convenient transportation and storage;
4) We are supplying H2S proof hose loop under acid environment;

5) The thread joint conforms to international specifications and can be exchanged to like products internationally.

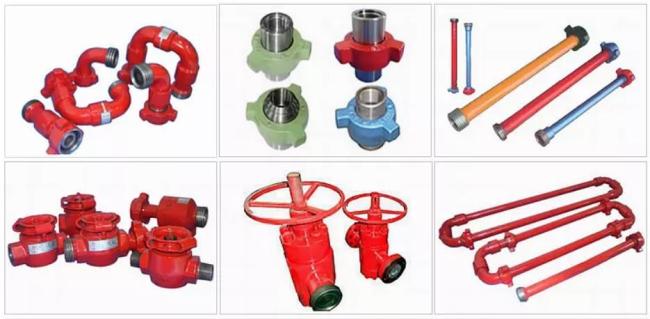

3.Other Related Products
