Z23X-35 Series Manifold Control Valve CAMERON FC / FL / FLS MUD GATE VALVE
Z23X-35 Series Manifold Control Valve CAMERON FC/FL/FLS MUD GATE VALVE
Manifold Control Valve -Mud Gate Valve Description

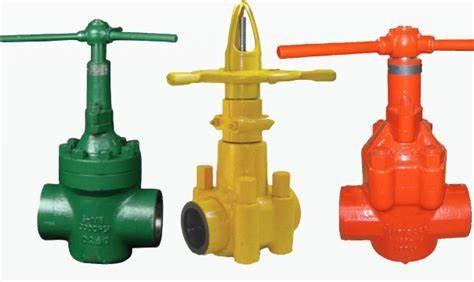

Z23X-35 series mud gate valve is typically applied to mud circulating equipment in oil wells or mines, for the purpose of controlling mud flow. With trapezoidal threaded connection, the mud gate valve provides easy installation, high rigidity and safe, reliable performance. The valve seat and flashboard makes use of parallel type, elastic seal for great sealing effect and easy opening. The pipe swing, combined with O type rubber seal ring enables the valve to offer excellent seal even the two ends of the pipes do not seem in a straight line.
Manifold Control Valve -Mud Gate Valve Specification
| Model | Z23X-35-DN50 | Z23X-35-DN65 | Z23X-35-DN80 | Z23X-35-DN100 |
| Operating pressure (Mpa) | 35 | |||
| Drift diameter (mm) | Φ50(2-1/16") | Φ65(2-9/16") | Φ80(8-1/8") | Φ101.6(4-1/16") |
| Working medium | Mud | |||
| Connection type | Union | |||
| Tie-in connection dimension (D) | Tr120×6(Tr100×12) | Tr130×6(Tr120×6) | Tr150×6 | Tr180×8 |
| Length (L) | 230 | 235 | 270 | 330 |
| Operating pressure(PMa) | 2000-10000 |
| Drift diameter | 2"-5" |
| Working medium | Mud |
| Material class | DD-EE |
| Temperature class | L.U |
| Performance level | PR1-PR2 |
| Specification level | PSL1-PSL3 |

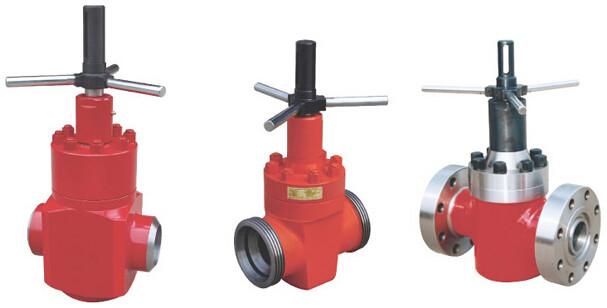

Details Of Mud Gate Valve:
Product Name: Mud Gate Valve
Standards: API 6A
Working Pressure: 2000PSI, 3000PSI, 5000PSI, 7500PSI
Types of End Connections: Flanged (RTJ), Threaded, Butt-Welded, Hammer Union
Material: Stainless Steel, Carbon Steel
Trim Material: NBR, HNBR
Working Medium: Oil, Natural Gas, Mud and Gas containing H2S, CO2
Material Class: AA, BB, CC, DD, EE, FF
Temperature Class: LU
Performance Requirement: PR1, PR2
PSL Rating: PSL1, PSL2, PSL3, PSL4
Traceability: Qihang's API6A DM Mud Gate Valves are supplied with full traceability documentation for each component.
Service: Standard, H2S etc
Application: Drilling standpipe manifolds, Pump Manifold Block Valves, Production Manifolds, Production Flow Lines, High Pressure Mud Pipelines, Wellheads and Petroleum/Gas Pipelines etc
Origin: China
