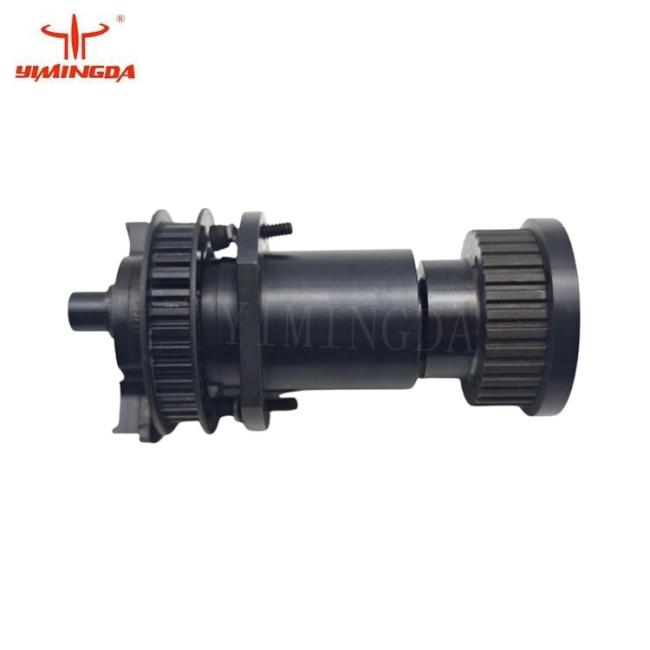

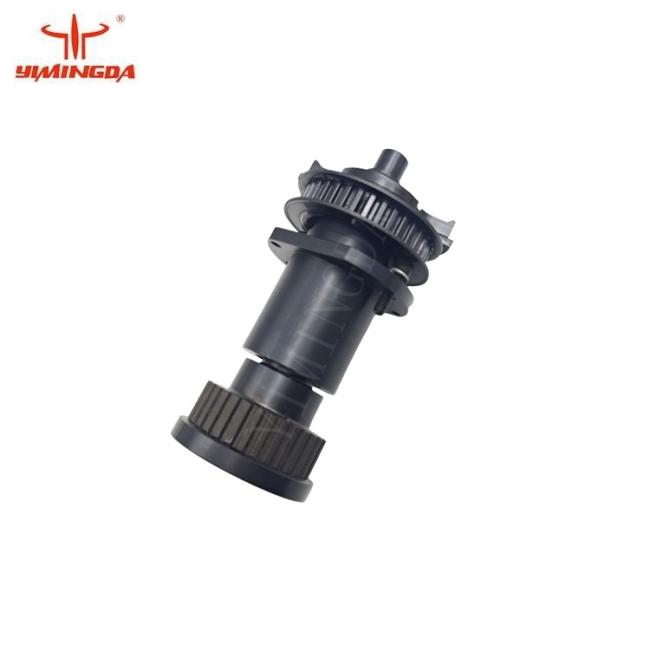

Spare Part No 66657000 Crank Hsg Assembly, S93-5 W/Lancaster For Apparel Cutting Room Machine
Features for Crank Hsg Assembly, S93-5 W/Lancaster, PN: 66657000:
1. Good reliability, longer life time: Save your cost and time.
2. Accurate dimensions: Improved accuracy and ease of installation.
3. Sturdy construction: Safety.
4. Easy to install: Reduce downtime for garment manufacturers.
Product Specifications:
| Description | Crank Hsg Assembly, S93-5 W/Lancaster |
| Part Number | 66657000 |
| Net Weight | 1.30 kgs/piece |
| Suitable for model | S93 |
| Application for | Apparel / Textile / Garment / Leather / Fashion Industries / Automotive,
Furniture Industries, Car-Seat Industries and other industries. |
Packing and other items:
| Package | 1pcs / pp bag, Shipping by foam cotton and Carton for protection. |
| Delivery Time | In stock, we can send out within 24 hours after payment |
| MOQ | As an initial, less quantity is avaliable and trial order will be highly appreciated! |
| Payment Term: | T/T, Western Union, Paypal, LC at sight, etc |
| Quality guarantee: | Usually is 6 Months, and if there's any quality problem, we will be replace to customer immediately. |
Installation Instructions:
- Turn off the power to the cutting machine and unplug it from the power source.
- Locate the existing smoothness belt on the cutter.
- Remove the old belt by loosening the tension and sliding it off the pulleys.
- Carefully install the new smoothness belt, ensuring proper alignment with the pulleys.
- Adjust the tension of the belt according to manufacturer's guidelines.
- Plug in the machine and power it on to test the new belt for proper operation.
How to order:
Step1. Please choose the goods with links or pictures which you want to order, Then click contact supplier or chat with me Or just send an inquiry. When we get your inquiry, we will give you a quotation soon, usually we will reply u within 24hours.
Step2. You can email us your order list with details, we’ll reply right away when we received your email.
Step3. We make the Contract (Proforma Invoice) to you for payment
After received payment, we send you the goods by Courier and offer you tracking number.
More spare parts for auto cutter machine:
| PART NUMBER | DESCRIPTION |
| 85629001 | SHARPENER,ASSY,GTXL |
| 85937000 | BUSHING FD L8-NS (LM76)NO BORE DBL LNG |
| 85871000 | KEY SHARPENER |
| 85949000 | PINION, SHAFT |
| 584500108 | KEY WOODRUFF METRICDIN6888 1.5Wx2.6HX7OD |
| 85948000 | PULLEY, DRIVE |
| 85950000 | SPACER IDLER UPPER ID.238, |
| 85632000 | IDLER PULLEY ASSY SHARP |
| 85951000 | SPACER IDLER LOWER ID.238, |
| 973500470 | WSHR METRIC SHIM DIN 988 AMETRIC |
| 776500217 | RING,RETAINER,EXT A6 DIN 471,CAM |
| 67484000 | PULLEY, END, S-93-7, S-93-5, LANC.IMPROVED |
| 55407000 | PLATE, PRESSERFOOT, S-93-5 |
| 55375001 | SHAFT, PRESSERFOOT, S-93-5 |
| 55607000 | SWIVEL,SQUARE,.078,S-93-5 |
| 54227002 | HOUSING, BEARING, CRANK, S-93-5/7, STRT. NOS |
| 892011021 | SPACER ALLDEV #DB8D8 .375 OD X .250 |
| 180500271 | BELT, TIMING, BOSTON, 5M075150, CODE 54410 |
| 54749000 | GUIDE, ROLLER, LOWER, .078, S-93-5 |
| 246500303 | BUSH PACIFIC BRG SIM FL6 CLOSED SERIES |
| 246162201 | BUSHING LM76 INC L-610-7 CLOSED SERIES |
For more information about auto cutter products, please do not hesitate send Email to us, we'll reply you very soon. Any of your inquiry will be highly appreciated. Thank you!
Product's Pictures:
More spare parts for apparel/garment/auto industrial cutting room machine Cutter:
