315 Amp High Speed 500VAC ESS Fuse 51x51mm European Square
315 Amp Energy Storage Systems Fuse
1,Product Details:
Rated Voltage: DC500V or lower
Rated Current:315A/450A/630A;
Class of Protection:aR;
Breaking Capacity:DC20kA(time constant≤10ms)
Compliance with EU and China RoHS directives
Compliance with the requirements of QC/T413,ISO8820,JASOD622
2,315 Amp Fuse Product Material:
| Part | Material |
| Fuse wire | Copper or Silver |
| End cap | Copper alloy tin plating |
| Fuse leg | Copper alloy tin plating |
| Fuse body | Ceramic Tube |
| Filler | Quartz sand |
3,315 Amp High Speed Fuse Characteristic data
| Model | Rated Current | Installation |
| MEV-H-F00-315 | 315A |
Mounting bolt M8 recommended torque 11N.m |
| MEV-H-F00-450 | 450A | |
| MEV-H-F00-630 | 630A |

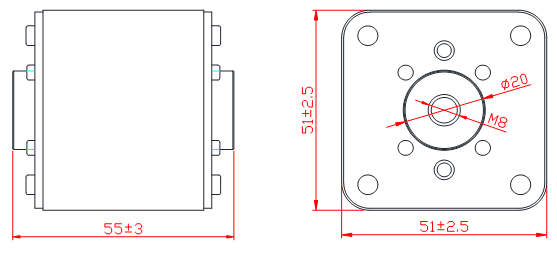

4,Product Dimensions(mm)
5,Conditions of use
Normal use conditions and parameter correction
The fuses work normally under the following normal conditions and no any additional correction required.
When it exceeds the normal using conditions, some parameters or consultation may need to be corrected if they are within the allowable using conditions. If it is beyond the scope of allowable using conditions, you should consult our company, and carry out the work adaptability evaluation and test of the conditions.
It is recommended that the current value of long-term current shall not be greater than 80% of the rated current.
Product equipment:
Test equipment:
Certificate:
