Fiber Pipe High Voltage Automotive Fuse UL248 Certified DC500V 550A HEV

Price Negotiable

Price: Negotiable

MOQ: 100pcs

Delivery Time: 5-8 days

Brand: Dissmann

Product Description

White fiber pipe high voltage automotive fuse——HEV-H-Q Module series

Dissmann Automotive Fuses HEV-H-Q Module series are designed to protect high-voltage accessory circuits in electric and hybrid electric vehicles.

Dissmann HEV-H-Q Module series fuses offers rated current 200 - 630 A, rated voltage AC / DC500V.

The latest HEV fuses have been tested to automotive quality standards for environmental reliability, transient current cycling, and device electrical and fusing characteristics. They are RoHS compliant and halogen free,and certified UL248-20,ISO8820,JAS0-D622.

Product introduction

1.Shape and mounting dimensions of the HEV-H-Q Module series automotive fuses:

Size code	A±0.3	B±0.5	C±0.5	D±0.3	E±0.5	M
HN1	53	45	31	20	7	M6
HM1	53	45	31	20	7	M8
HN2	53	45	37	24	7	M6
HM2	53	45	37	24	7	M8

2.Model classification according to automotive fuses rated current:

Model	Rated Current (A)	I²t(A²s)		Power dissipation (W)	Size code	Install
Model	Rated Current (A)	弧前	总	Power dissipation (W)	Size code	Install
HEN-H-Q-N200	200A	6000	20400	23	HN1	Mounting Bolt M6 recommended torque 6N·m
HEN-H-Q-N225	225A	9200	30500	25
HEN-H-Q-N250	250A	11500	40000	27
HEN-H-Q-N275	275A	14800	50000	29
HEN-H-Q-N300	300A	17000	60000	30
HEN-H-Q-N325	325A	19200	73500	32
HEN-H-Q-N350	350A	22000	86500	34
HEN-H-Q-N375	375A	25200	102000	36
HEN-H-Q-N400	400A	30000	117000	37
HEN-H-Q-N450	450A	56500	322000	40	HN2
HEN-H-Q-N500	500A	87000	365000	44
HEN-H-Q-N550	550A	115000	410000	47
HEN-H-Q-N630	630A	150000	512000	50
HEN-H-Q-M200	200A	6000	20400	23	HM1	Mounting Bolt M8 recommended torque 12N·m
HEN-H-Q-M225	225A	9200	30500	25
HEN-H-Q-M250	250A	11500	40000	27
HEN-H-Q-M275	275A	14800	50000	29
HEN-H-Q-M300	300A	17000	60000	30
HEN-H-Q-M325	325A	19200	73500	32
HEN-H-Q-M350	350A	22000	86500	34	HM2
HEN-H-Q-M375	375A	25200	102000	36
HEN-H-Q-M400	400A	30000	117000	37
HEN-H-Q-M450	450A	56500	322000	40
HEN-H-Q-M500	500A	87000	365000	44
HEN-H-Q-M550	550A	115000	410000	47
HEN-H-Q-M630	630A	150000	512000	50

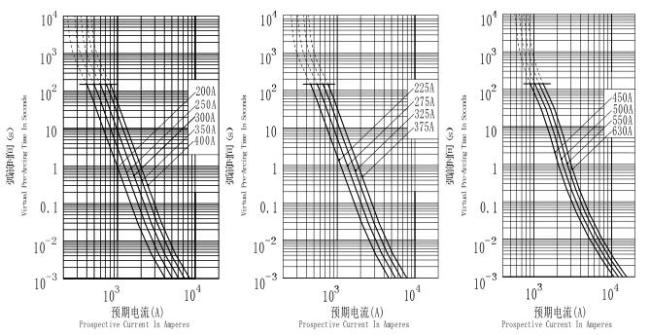

3.Current characteristic curve of the HEV-H-Q Module series automotive fuses :

Warm tips:You can choose the right HEV fuse for your project based on the model, so you will get a quote within one business day. If your project requires customized automotive fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within three working days.
