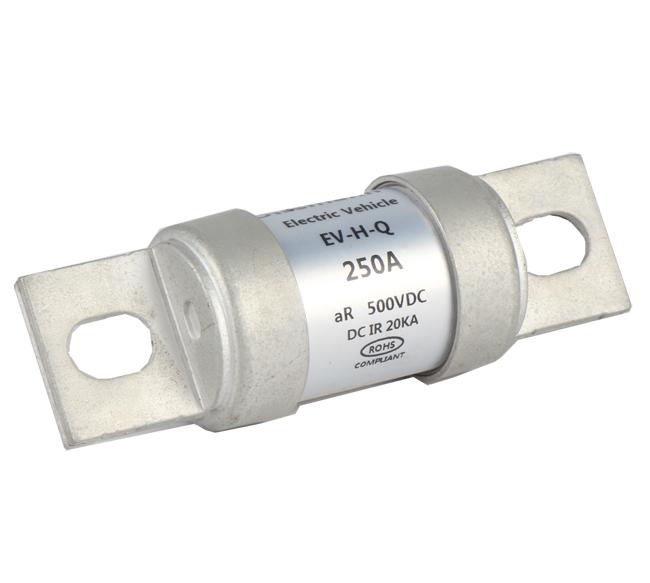

White ceramic EV fuse with bolted connection fuse for car main battery——EV-H-Q Module series

Dissmann ceramic EV fuse EV-H-Q Module series compact and high-performance are designed to protect a car battery, high-voltage circuit, on-board charger, and auxiliary equipment.

The EV-H-Q Module series are white ceramic body with metal bolted connection EV fuses, offer rated current 80A - 500A, rated voltage AC / DC500V.

Dissmann ceramic EV fuses differ by fuse speed, voltage and amperage rating and comply with RoHS compliant and halogen free,and certified UL 248-20,ISO 8820,JAS0-D622.

Product introduction

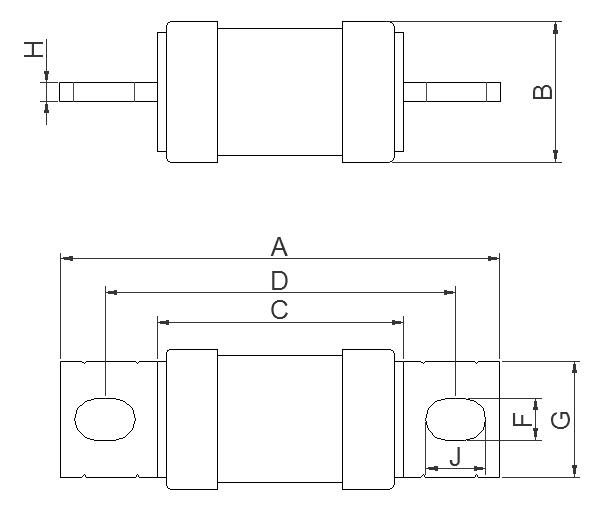

1.Shape and mounting dimensions of the EV fuses:

Model	Size doce	A±2	B±1.5	C±1	D±1.5	F±1	G±0.5	H±0.2	J±1
EV-H-Q	VH1	94.5	30.5	52.5	74.5	9	25	4	13
EV-H-Q	VH2	119.5	37	56.5	88.5	11	25	6	15

2.Model classification according to EV fuses rated current:

Model	Rated current (A)	I²t(A²s)		Power consumption (W)	Size Code	Install
Model	Rated current (A)	弧前	熔断	Power consumption (W)	Size Code	Install
EV-H-Q-80	80	5500	6400	15	VH1	Mounting Bolt M8 recommended torque 11N·m
EV-H-Q-100	100	8700	10000	19
EV-H-Q-125	125	15000	17810	23.5
EV-H-Q-150	150	25000	29000	28
EV-H-Q-175	175	40500	45000	33
EV-H-Q-200	200	60300	68000	37
EV-H-Q-225	225	83100	95000	40
EV-H-Q-250	250	120000	138000	45
EV-H-Q-275	275	173200	189000	48
EV-H-Q-300	300	203000	243000	55.5
EV-H-Q-350	350	252000	355000	62
EV-H-Q-300	300	148500	260000	53.5	VH2	Mounting Bolt M10 recommended torque 20N·m
EV-H-Q-315	315	168000	280000	57
EV-H-Q-350	350	203000	350000	61
EV-H-Q-400	400	312000	496000	68
EV-H-Q-500	500	550000	865000	78

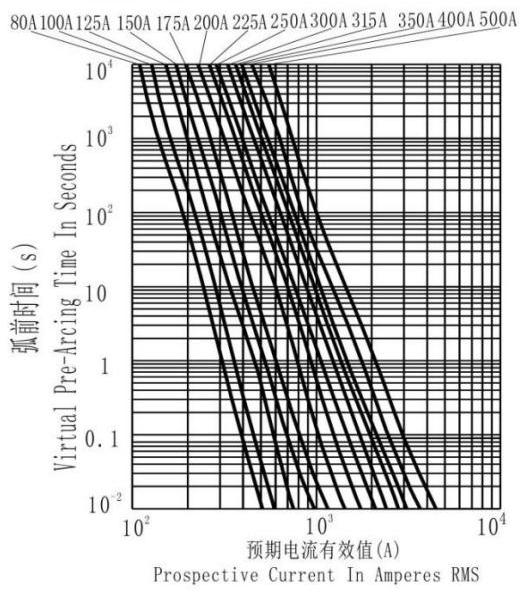

3.Current characteristic curve of the EV fuses :

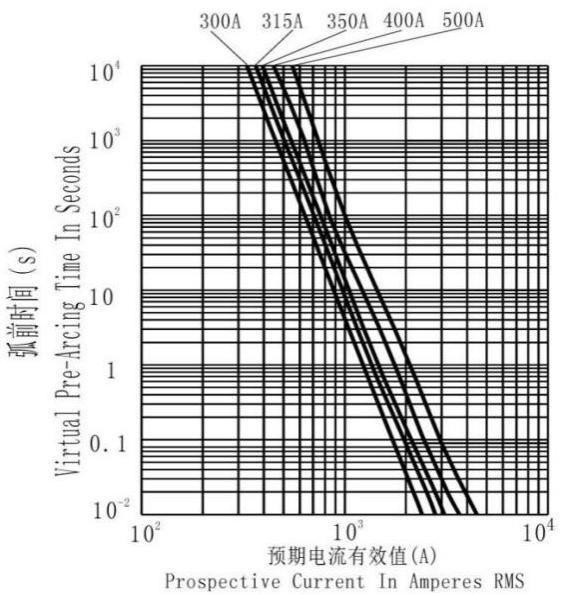

Current cuer of ceramic EV fuse for car battery DC500V

Warm tips:You can choose the right EV fuse for your project based on the model, so you will get a quote within one business day. If your project requires customized automotive fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within three working days.
