Spade / Plug In DC80V 50A Automotive Blade Fuse For Passenger Car
High Breaking Capacity DC80V 50A Automotive Blade Fuse

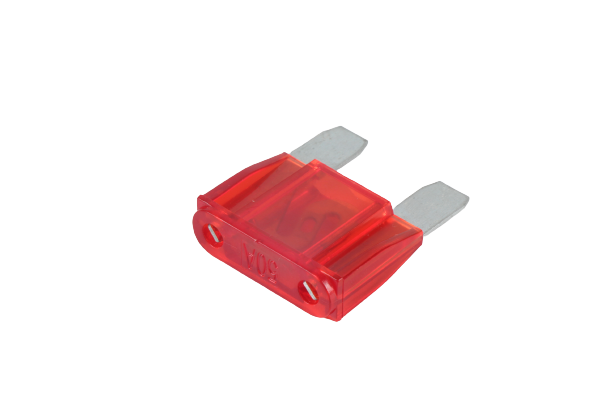

Dissmann® Automotive blade fuse DFN-E-50, rated voltage: DC80V, rated current: 50A, breaking capacity: DC1000A.
DFN-E Series blade fuses rated voltage: DC80V, rated current: 20A-60A, breaking capacity: DC1000A, dimensions and performance conforming to UL248-13, ISO8820, environmental protection conforming to European Union and China RoHS directives, and features small size, low power consumption, and high breaking capacity, have good vibration resistance and flame retardancy. These automotive blade fuses are applicable to the internal branch protection, UPS, communication power short circuit and backup protection of automobile electrical appliances.
Specifications of the DFN-E Series Automotive Blade Fuse

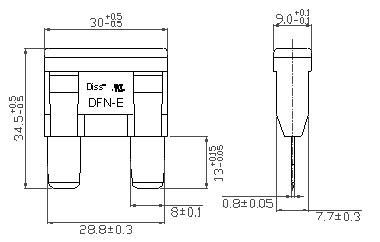

1.Shape and mounting dimensions of the fuse:
2.Fuse model classification according to rated current :
|
Model |
Product code |
Rated current (A) |
I²t (A²Sec) |
Voltage drop (mV) |
Pigment |
| DFN-E | DFN-E-20 | 20 | 3500 | 100 | Yellow |
| DFN-E-30 | 30 | 8200 | 97 | Green | |
| DFN-E-40 | 40 | 14200 | 93 | Orange | |
| DFN-E-50 | 50 | 22500 | 90 | red | |
| DFN-E-60 | 60 | 23000 | 95 | Blue |
3.Performance criteria of the fuse:
|
Test current item(A) |
Current |
Minimum time(s) |
Maximum time(s) |
| 110% | 20A-60A | 360000s | - |
| 150% | 20A-60A | - | 1800s |
| 200% | 20A-60A | 2s | 60s |
| 350% | 20A-60A | 0.20s | 7s |
| 600% | 20A-60A | 0.040s | 1s |
How to choose a right model of the DFN-E Automotive Blade Fuse:
You can choose the right automotive blade Fuse for your project based on the rated current, send us the product code to get a quick quotation. If your project requires customized automotive fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48 hours.
Shenzhen Deer Electronic(Dissmann Fuse) is National High-Tech company was founded in 2000 by Senior Engineers Team. The Engineers were responsible for products’ R&D in famous companies, reorganized and founded Shenzhen Deer in 2005. Focused on R&D and production Current limiting Fuses. Now we’ve got 4 Patents of Invention of China and 12 Patents for Utility Model.
Welcome you to get more information of the automotive blade fuse,We will provide you with fast and efficient services and high-quality fuse products.
