Product Description

Dissmann^® High Breaking Capacity DC150V Low Voltage Automotive Fuse

Dissmann^® Low voltage automotive fuse DNN-P Series, rated voltage: DC150V / AC250V, rated current: 10A-500A, breaking capacity: DC2700A.

DNN-P Series automotive fuses are flat plug type automobile fuse (bolt type installation), their dimensions and performance conforming to UL248-20, ISO8820, JAS0-D622, environmental protection conforming to European Union and China RoHS directives.

DNN-P Series automotive fuses feature small size, low power consumption, and high breaking capacity, have good vibration resistance and flame retardancy. These automotive fuses are applicable to low-speed electric vehicles, motors and charging modules.

Specifications of the DNN-P Series Low Voltage Automotive Fuse

1.Shape and mounting dimensions of the fuse:

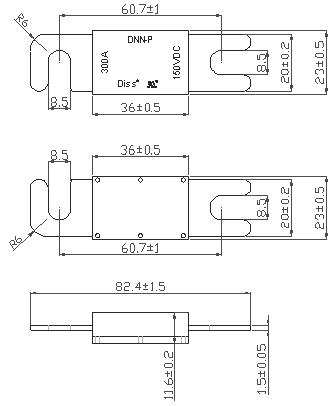

Reference Drawing of Amps Size greater than or equal to 250A

Amp size less than or equal to 225A reference drawing

2.Performance criteria of the automotive fuse:

Load	Opening time
	10A～500A
	min	max
110%	14400	∞
160%	10	∞
200%(≤200A)	0	100
200%(＞200A)	0	300
250%(≤200A)	0	60
250%(＞200A)	0.8	120
600%	0.02	10

3.Fuse model classification according to the rated current :

Model	Product code	Rated current (A)	Voltage drop (mV)	Installation requirement
DNN-H	DNN-P-35	35	130	Install bolt M8, recommended torque 10N·m ±1 N·m
	DNN-P-40	40	125
	DNN-P-50	50	120
	DNN-P-60	60	116
	DNN-P-80	80	112
	DNN-P-100	100	110
	DNN-P-125	125	105
	DNN-P-130	130	100
	DNN-P-150	150	96
	DNN-P-175	175	90
	DNN-P-200	200	86
	DNN-P-225	225	83
	DNN-P-250	250	80
	DNN-P-275	275	77
	DNN-P-300	300	75
	DNN-P-325	325	83
	DNN-P-350	350	81
	DNN-P-400	400	80
	DNN-P-425	425	78
	DNN-P-450	450	78
	DNN-P-500	500	76

How to choose a right model of the DNN-P Automotive Fuse:

You can choose the right automotive fuse for your project based on the rated current, send us the product code to get a quick quotation. If your project requires customized automotive fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48 hours.
